| Prod Model: |
SY7000-022G-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
22kw |
| Size: |
450*325*360mm |
| G.W.: |
14.5kgs |
| Type: |
AC-DC-AC |
| Output Frequency: |
0-600Hz |
| Output Current: |
45A |
| Application Motor Power: |
22kw |
| Application Motor Power In HP: |
30 |
| Control Mode: |
Open Loop Vector Control, V/F Control |
| Overload Capacity(G Type: |
150% of Rated Current for 60s; 180% of Rated Curre |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Application: |
High Frequency Converter Transducer |
| Main Circuit Type: |
Voltage |
| Switch Mode: |
High Carrier Frequency PWM Control |
| Brand: |
Sanyu |
Product Description
Sanyu 2014 New Developed Intelligent V/F Control drives
Frequency Converter
Inverter
AC Driver
Frequency Converter
------------------------------------------------------------------------------------------------------------------------------------------
About Sanyu company and Products:
Sanyu is specializing in producing frequency inverter and soft starter. 300 workers, 20000m2 workshop,12 years experience, ISO&CE certificated, in the city of Shanghai port, this is how Sanyu keep good quality and competitive prices for global valued customers.

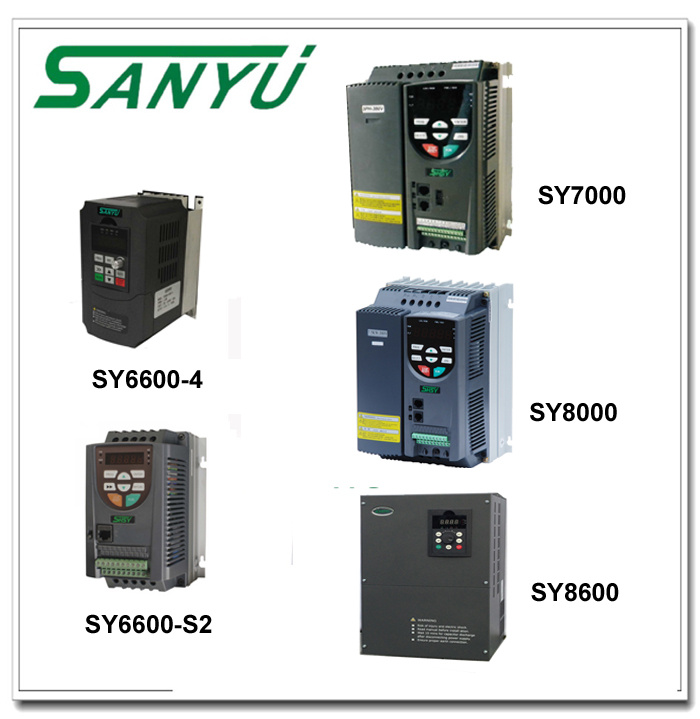

Sanyu has five series frequency inverter: SY6600-4, SY6600-S2, SY7000, SY8000 and SY8600.
1)SY6600-4 is economy series with competitive price, 380V 3phs input and output, from 0.4kw to 4kw
2)SY6600-S2 economy series for 220v single phase input and 220v three phases output, from 0.4kw to 2.2kw, V/F control.
3)SY7000 is new developed frequency inverter, 220v three phase input and output from 0.4kw~45kw and 380v three phases input and output from 0.4kw~315kw, Vector control, S-curve Start, PLC function, Torque control function with 16 speed
4)SY8000 has 220v three phase input and output from 0.4kw~45kw and 380v three phases input and output, V/F control, Vector control, with 8 speed, from 0.4kw~315kw
5)SY8600 is new developed series,has wide voltage range from 323v to 526v and wide power range from 0.4kw to 630kw, V/F control, Vector control
About Certification:
Sanyu has got CE, SGS, ISO9001, and CCC certifications:
Production Procession:
About Samples:
Sanyu can offer sample product. For normal specification, we can delivery within 2 working days; for special specification, we can delivery around 5 working days. For one piece sample of small power, we advise to use express way such as DHL, UPS, Fedex, EMS etc.
About shipping and delivery:
Sanyu has large inventory in stock, so for normal order, we can delivery in around 5 working days. For the delivery way, you can choose by sea, by air, by express way etc. It's according to your requirement. Also we will give you our advise since we have abudant experience.
| Technical Specification |
|
| Frequency | 600.00Hz |
| Carrier frequency | 1.0~15.0KHz |
| Resolution of input frequency | Digital setting: 0.01Hz Analog setting: Max frequency *0.1% |
| Control mode | Open loop vector control
V/F control |
| start torque | G type: 0.5Hz/150%
P type: 0.5Hz/100%
C type: 0.5Hz/200% |
| Speed regulation range | 1: 100 |
| Speed stabilization accuracy | +-0.5% |
| Overload capacity | G type 150% of rated current for 60s; 180% of rated current for 1s
P type 120% of rated current for 60s; 150% of rated current for 1s
C type 180% of rated current for 60s; 200% of rated current for 1s |
| Torque incease | Automatic torque increase
Manual torque increase 0.1%~30% |
| V/F curve | Two modes: straight line type, 2.0 power |
| Acc/Dec. curve | straight-line or S-curve acceleration and decoration mode;
two kinds of acceleration and decoration time: range of acceleration and deceleration time: 0.1~3600s |
| DC brake | DC braking frequency: 0.0Hz~10.00Hz; braking time: 0~50s; braking operation current: 0.0~150% |
| Jogging control | Jogging frequency range: 0.00Hz~P0.13; jogging acceleration and deceleration time: 0.0~3600s |
| Multi-speed running | 8-segment speed control |
| Multi-in PID | Realizing the process closed loop control system conveniently |
| AVR | When the mains voltage change, it can automatically keep the output volgate constan |
| Common DC bus function | Realizing the functions of common DC bus for many inverters |
| JOG Key | Programmable key: jog/forward& reverse rolation seitchover/clearing UP/Down setting. |
| Wobble frequency control for spinning | Multi trangular wave frequency control functions |
| Timing control | Timing control function; setting time range 0-65535h |
| Running command channel | Three channels: operation panel setting, control terminal setting, serial comunication port setting |
| Frequency source | Digital setting, analog voltage setting, analog current setting, serial port setting, etc. |
| Input terminal | Two analog input terminals, hereinpt, No. 4 terminal is used for voltage input, and No. 5 terminal is used for voltage or current input |
| Output terminal | One open collector output, two relays output
One analog terminal, 1/4~20mA or 0~10V available for it, can realize the output of analog quantities such as setting frequency and output frequency |
| LED | Displaying parameters |
| LCD | Option, displayed in Chinese |
| Parameter locking | preventing other person setting the parameters |
| Protection function | Short-circuit protection, input/output, phase-failure protection, over-current protection, under-voltage protection, over-voltage protection, over-load protection, over-heat protection, etc |
| Option | LCD operation panel, multi-function input/output expansion card, braking component, communication wire, etc. |
| Ambient temp | -10° C~40° C (At 40° C~50° C, Please use it by derating) |
| Altitude | Lower than 1000m |
| Service location | Indoors, free from direct sunlight, duct, corrosive gas, cumbustible gas, oil mist, water vapor, drip or salt, etc. |
| Humidity | Less than 95% RH, no water condensation. |
| Vibration | Less than 5.9m/s2 |
| Storage temp. | -20° C~60° C |
