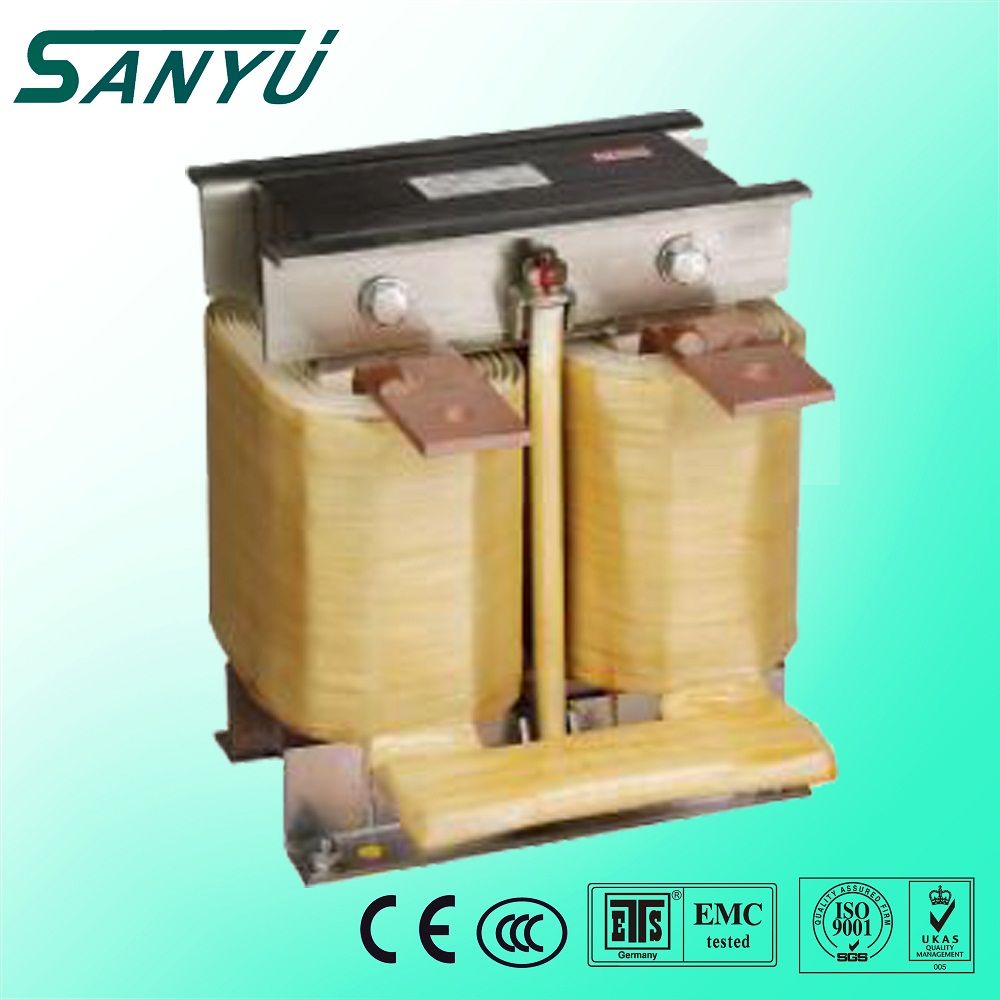

Sanyu High Performance DC reactor ( ZSDCL)

Name: Sanyu High Performance DC reactor ( ZSDCL)
Brand: all-electronics-online.com
SKU: 708962495
Availability: InStock
Rating: 5 (110 reviews)

Price:	US $ 17/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZSDCL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Zsdcl
Adopted Power:	0.4-400kw
Rated Current:	3-650A
Inductance(Mh):	0.072-28mh
Insulation Class:	F, H
Dimension:	806365-235206160
Weight:	1.5-33kgs
Usage:	Industrial
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Sanyu

Product Description

Sanyu High Performance DC reactor (ZSDCL)

1.Sanyu High Performance DC reactor ( ZSDCL)
2.hi-tech
3.good quality
4.Decrease the noise of motor
5.ISO,3C, SGS

Features:
1. Limit the AC ripples superimposed on DC.
2. Improve the power factor of circuit.
3. Suppress harmonic to eliminate the adverse affects on loading.
Product parameters:
1,Rated Operating Power:DC500V-DC1000V;
2,Reactive Strength:Core-Winding 3000VAC/50Hz/10mA/10S Free
of arcing breakage (tested in factory)
3,Insulation Resistance:1000VDC,insulation resistance≥100MΩ
4,Reactor'S noise is less than 65dB(to be measured at the point 1
meter away from the reactor horizontally)
5,Insulation class:Above F
6,Standard:
IEC289:1987 Reactor
GB10229-88 Reactor(equivalent to IEC289:1987)
JB9644-1999 Reactor for semi-Conductor transmission
