| Prod Model: |
SY8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shanghai, China (Mainland) |
| Brand Name: |
Sanyu |
| Model Number: |
Sy8000 |
| Output Power: |
0.4-400kw |
| Control Mode: |
Open Loop Vector Control, V/F Control |
| Size: |
210*110*170~1750*685*590mm |
| Weight: |
1.8~260kgs |
| Input Voltage: |
400V, Three Phases |
| Output Voltage: |
400V, Three Phases |
| Type: |
AC-DC-AC |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Voltage |
| Output Type: |
Triple |
| Application: |
High Frequency Converter Transducer |
| Switch Mode: |
High Carrier Frequency PWM Control |
Product Description
Sanyu Intelligent Good quality Danfoss Substitute VFD 0.4-400kw, 400v three phases input and output
Inverter
Motor Control
AC Drive
Frequency Converter
-------------------------------------------------------------------------------------------------------------------------------------
About Sanyu company and Products:
Sanyu is specializing in pro
ducing frequency inverter and soft starter. 300 workers, 20000m2
workshop,12 years experience, ISO&CE certificated, in the city of Shanghai port, this is how
Sanyu keep good quality and competitive prices for global valued customers.

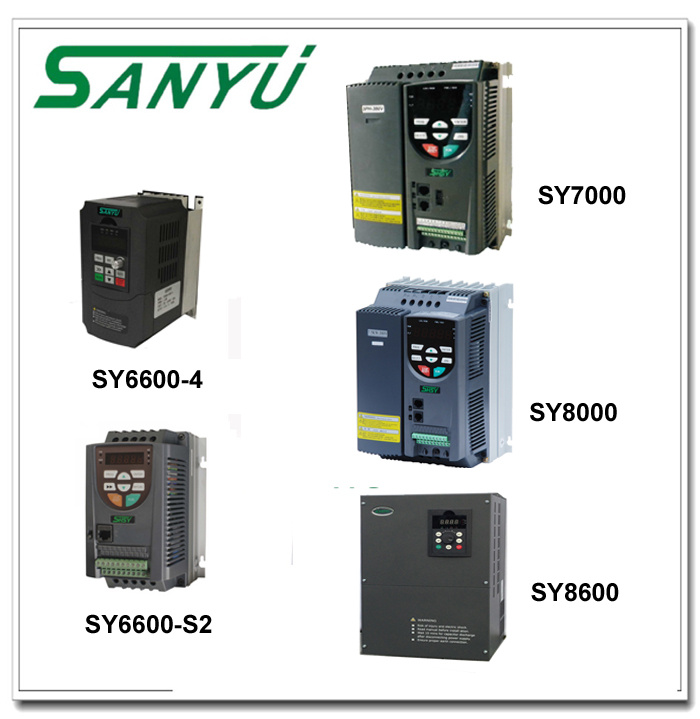

Sanyu has five series frequency inverter: SY6600-4, SY6600-S2, SY7000, SY8000 and SY8600.
1)SY6600-4 is economy series, 380V 3phs input and output, from 0.4kw to 4kw
2)SY660-S2 economy series for 220v single phase input and 220v three phases output, from 0.4kw to 2.2kw
3)SY7000 is new developed frequency inverter, 220v three phase input and output from 0.4kw~45kw and 380v
three phases input and output from 0.4kw~315kw, with 16-segments speed control,
4)SY8000 has 220v three phase input and output from 0.4kw~45kw and 380v three phases input and output
from 0.4kw~315kw
5)SY8600 is new developed series,has wide voltage range from 323v to 526v and wide power range from
0.4kw to 630kw
About Certification:
Sanyu has got CE, SGS, ISO9001, and CCC certifications:

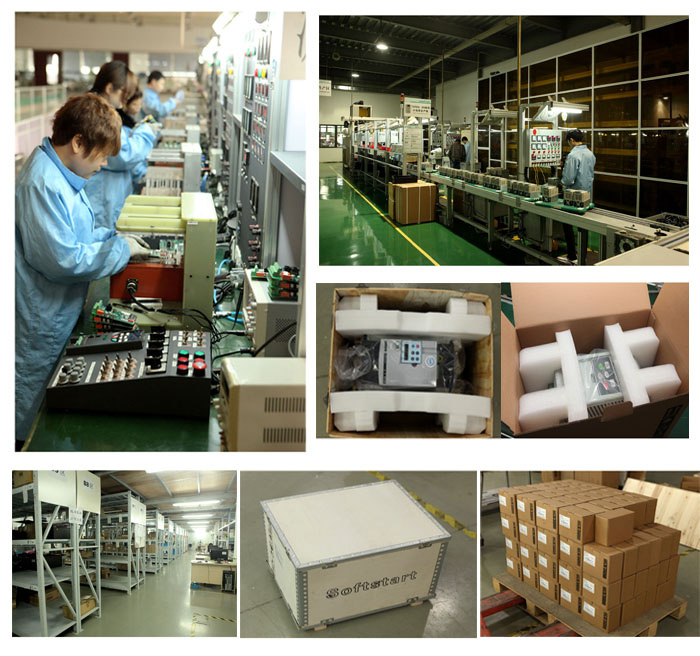

Production Procession:

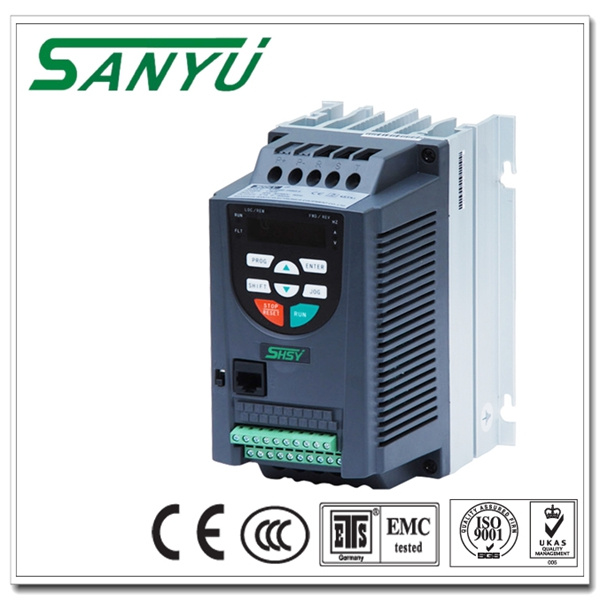

About SY8000 series Frequency Inverter:
SY8000 frequency inverter has wide application in most of industry as following:
CNC machines, textile machinery, plastic machinery, food machinery, printing machines,
packing machines, wooden working machinery, winding machinery, mining machinery,
lifting machinery etc.
SY8000H(heavy duty type) INVERTER TECHNICAL CHARACTERS
1)The control mode is various and it is commonly used
2)The motor parameters can be automatically recognized.
3)When the frequency is 0.5Hz, the torque output will be 150%.
4)Zero speed torque output.
5)Super-silent running.
6)Tripping operation function achieve coriaceous stable running.
7)The quick menu design.
8)Simple PLC, PID adjustment
9)The structure is compact and legerity
10)Built-in RS-485 communication interface, standards MODBUS protocol.
11)25 types of protection functions.About Samples:
Sanyu can offer sample product. For normal specification, we can delivery within 2 working days;
for special specification, we can delivery around 5 working days. For one piece sample of small power,
we advise to use express way such as DHL, UPS, Fedex, EMS etc.
About shipping and delivery:
Sanyu has large inventory in stock, so for normal order, we can delivery in around 5 working days.
For the delivery way, you can choose by sea, by air, by express way etc. It's according to your
requirement. Also we will give you our advise since we have abudant experienc
|
Technical Specification |
|
|
Frequency |
600.00Hz |
|
Carrier frequency |
1.0~15.0KHz |
|
Resolution of input frequency |
Digital setting: 0.01Hz Analog setting: Max frequency *0.1% |
|
Control mode |
Open loop vector control
V/F control |
|
start torque |
G type: 0.5Hz/150%
P type: 0.5Hz/100%
C type: 0.5Hz/200% |
|
Speed regulation range |
1: 100 |
|
Speed stabilization accuracy |
+-0.5% |
|
Overload capacity |
G type 150% of rated current for 60s; 180% of rated current for 1s
P type 120% of rated current for 60s; 150% of rated current for 1s
C type 180% of rated current for 60s; 200% of rated current for 1s |
|
Torque incease |
Automatic torque increase
Manual torque increase 0.1%~30% |
|
V/F curve |
Two modes: straight line type, 2.0 power |
|
Acc/Dec. curve |
straight-line or S-curve acceleration and decoration mode;
two kinds of acceleration and decoration time: range of acceleration and deceleration time: 0.1~3600s |
|
DC brake |
DC braking frequency: 0.0Hz~10.00Hz; braking time: 0~50s; braking operation current: 0.0~150% |
|
Jogging control |
Jogging frequency range: 0.00Hz~P0.13; jogging acceleration and deceleration time: 0.0~3600s |
|
Multi-speed running |
8-segment speed control |
|
Multi-in PID |
Realizing the process closed loop control system conveniently |
|
AVR |
When the mains voltage change, it can automatically keep the output volgate constan |
|
Common DC bus function |
Realizing the functions of common DC bus for many inverters |
|
JOG Key |
Programmable key: jog/forward& reverse rolation seitchover/clearing UP/Down setting. |
|
Wobble frequency control for spinning |
Multi trangular wave frequency control functions |
|
Timing control |
Timing control function; setting time range 0-65535h |
|
Running command channel |
Three channels: operation panel setting, control terminal setting, serial comunication port setting |
|
Frequency source |
Digital setting, analog voltage setting, analog current setting, serial port setting, etc. |
|
Input terminal |
Two analog input terminals, hereinpt, No. 4 terminal is used for voltage input, and No. 5 terminal is used for voltage or current input |
|
Output terminal |
One open collector output, two relays output
One analog terminal, 1/4~20mA or 0~10V available for it, can realize the output of analog quantities such as setting frequency and output frequency |
|
LED |
Displaying parameters |
|
LCD |
Option, displayed in Chinese |
|
Parameter locking |
preventing other person setting the parameters |
|
Protection function |
Short-circuit protection, input/output, phase-failure protection, over-current protection, under-voltage protection, over-voltage protection, over-load protection, over-heat protection, etc |
|
Option |
LCD operation panel, multi-function input/output expansion card, braking component, communication wire, etc. |
|
Ambient temp |
-10° C~40° C (At 40° C~50° C, Please use it by derating) |
|
Altitude |
Lower than 1000m |
|
Service location |
Indoors, free from direct sunlight, duct, corrosive gas, cumbustible gas, oil mist, water vapor, drip or salt, etc. |
|
Humidity |
Less than 95% RH, no water condensation. |
|
Vibration |
Less than 5.9m/s2 |
|
Storage temp. |
-20° C~60° C |
Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.
SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.
In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.
Let's make a bright future together!
