| Prod Model: |
RXLG-2500W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technology: |
Wirewound |
| Resistance Tolerance: |
±1%,±2%,±5%,±10% |
| Rated Power: |
60W~2000W |
| Temperature Coefficient: |
±300ppm/°c |
| Operating Temperature: |
-55°c~+275°c |
| Power Range: |
50W-2500W |
| Voltage Range: |
0.5kv-10kv |
| Resistance Range: |
1r-10kr |
| Dielectric Strength: |
AC3kv 50Hz/1min |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Material: |
Metal Film Resistor |
| Package Type: |
Surface Mount |
| Application: |
Brake Resistor |
| Type: |
Resistor |
| Installation: |
Connect |
Product Description

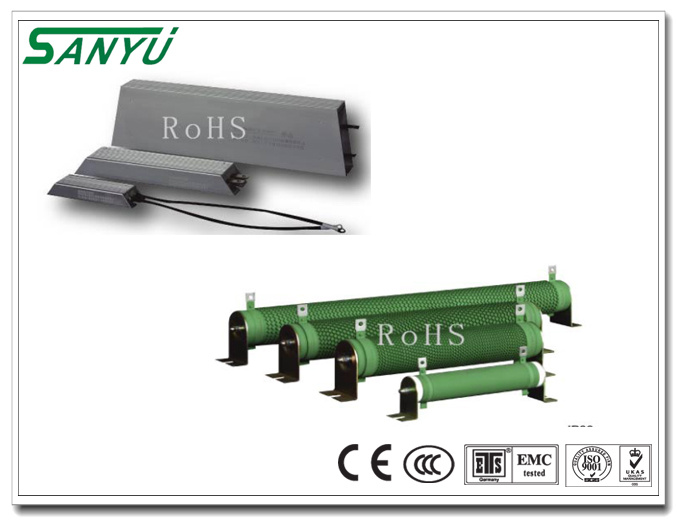

Sanyu Power Aluminum Shell Resistor(RXLG-2500W)
Aluminum Enclosure Resistor
Ceramic Resistor
Power Resistor
Wirewound Resistor
RXLG resistor
--------------------------------------------------------------------------------------------------------------------------------------------------------------
Two RXLG series resistor is superior to conventional ceramic-skeleton resistor in terms of weatherproof, oseillation-resistant and safety, and is widely applied to electrical circuits that has high adaptability to bad ambient, such as power supply, inverter and servo system, and has high adaptability to bad ambient operating conditions. It can be easily fitted in an airtight manner and additional heat radiator can be fixed to it in an easy way. With elegant appearance, it is an ideal component that is perfectly compatible with power and electronic.
-------------------------------------------------------------------------------------------------------------------------------------------------------------
RXLG
RXHG
Technical paremeters
power range: 50W-2500W
voltage range: 0.5KV-10KV optional
resistance range: 1R-1KR
pressure: AC2.5KV-20KV/1min 50Hz optional.
IP rating: IP00
vibration: 1g.
rated temperature rise: 375 degrees.
drift: 80-400ppm/degrees
Fluid contained material: 0Cr25AL5/Ni80Cr20 optional.
Advantages: high-voltage work
Disadvantages: less seismic
Packing: carton packaging
Specification
rated power
(w) | specification (mm) |
L1(±2) | L2(±5) | L3(±3) | D(±2) | B | B1 | H | H1(±3) | N | d | O |
50 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
60 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
80 | 152 | 174 | 196 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
100 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
120 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
150 | 195 | 217 | 239 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
200 | 195 | 217 | 239 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
300 | 282 | 304 | 326 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
400 | 282 | 304 | 326 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
500 | 316 | 338 | 360 | 50 | 8 | 50 | 45 | 101 | 16 | 6 | 2.0 |
600 | 345 | 367 | 389 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
750 | 316 | 338 | 360 | 50 | 8 | 50 | 45 | 101 | 16 | 6 | 2.0 |
1000 | 300 | 325 | 350 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
1200 | 415 | 440 | 465 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
1500 | 415 | 440 | 465 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
2000 | 510 | 535 | 560 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
2500 | 600 | 625 | 650 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
About Samples:
Sanyu can offer sample product. For normal specification, we can delivery within 2 working days; for special specification, we can delivery around 5 working days. For one piece sample of small power, we advise to use express way such as DHL, UPS, Fedex, EMS etc.
About shipping and delivery:
Sanyu has large inventory in stock, so for normal order, we can delivery in around 5 working days. For the delivery way, you can choose by sea, by air, by express way etc. It's according to your requirement. Also we will give you our advise since we have abudant experience.
