| Prod Model: |
SY7000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Size: |
450mm*325mm*360mm |
| Weight: |
11.3kg |
| Carrier Frequency: |
0~15kHz |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Application: |
High Frequency Converter Transducer |
| Main Circuit Type: |
Voltage |
| Switch Mode: |
PWM Control |
Product Description

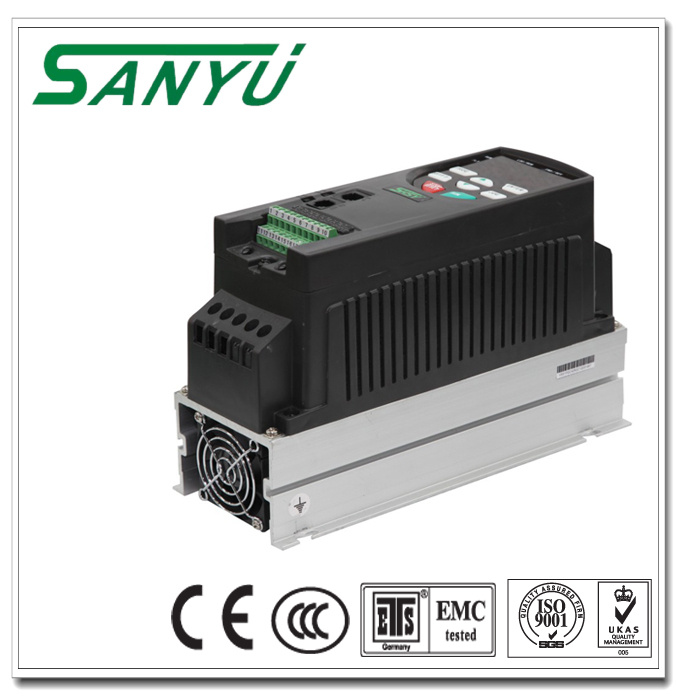

Sanyu SY7000 frequency inverter
About Sanyu company and Products:
Sanyu is specializing in producing frequency inverter and soft starter. 300 workers, 20000m2 workshop,12 years experience, ISO&CE certificated, in the city of Shanghai port, this is how Sanyu keep good quality and competitive prices for global valued customers.

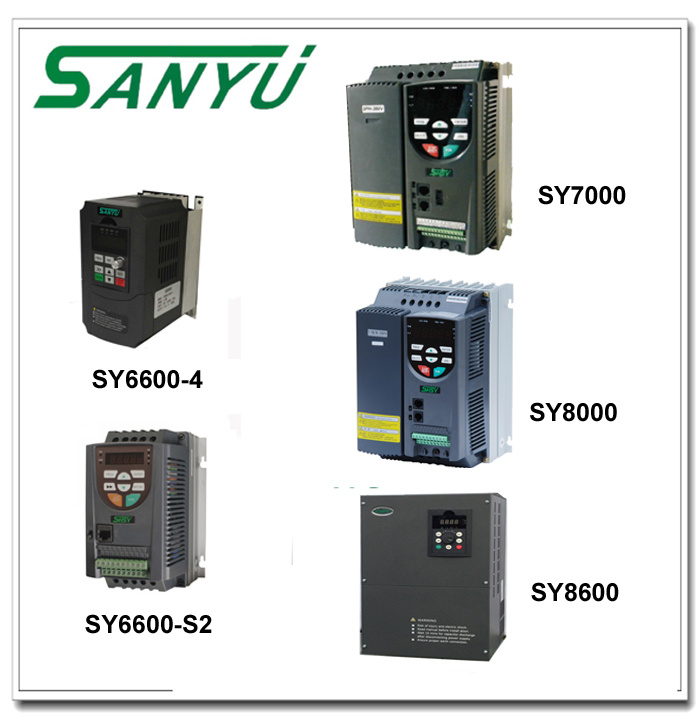

Sanyu has five series frequency inverter: SY6600-4, SY6600-S2, SY7000, SY8000 and SY8600.
1)SY6600-4 is economy series, 380V 3phs input and output, from 0.4kw to 4kw
2)SY660-S2 economy series for 220v single phase input and 220v three phases output, from 0.4kw to 2.2kw
3)SY7000 is new developed frequency inverter, 220v three phase input and output from 0.4kw~45kw and 380v three phases input and output from 0.4kw~315kw, with 16-segments speed control,
4)SY8000 has 220v three phase input and output from 0.4kw~45kw and 380v three phases input and output
from 0.4kw~315kw
5)SY8600 is new developed series,has wide voltage range from 323v to 526v and wide power range from
0.4kw to 630kw
About Certification:

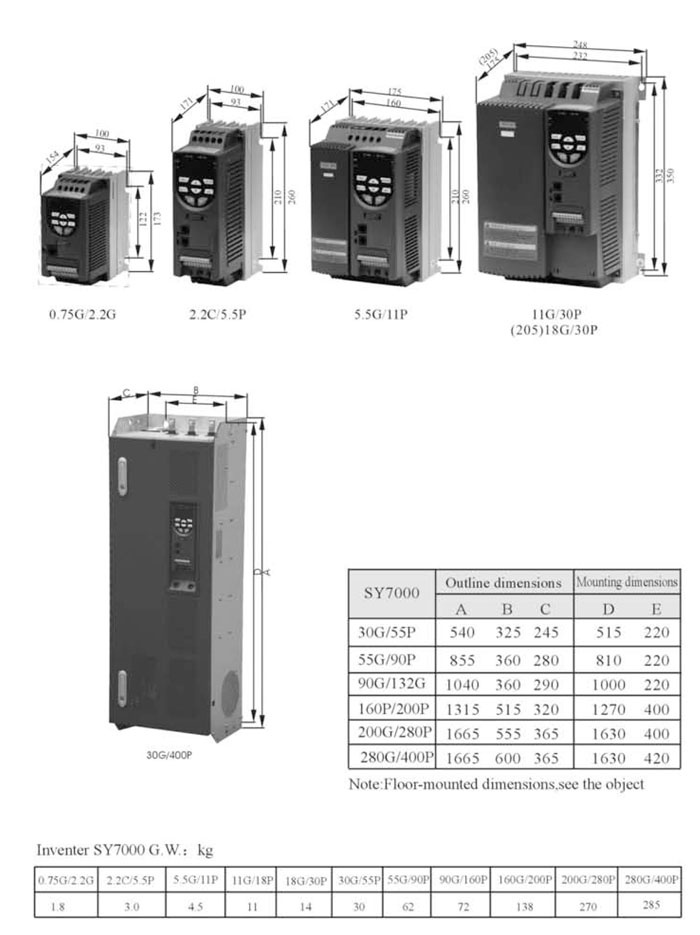

External dimension:
About Samples:
Sanyu can offer sample product. For normal specification, we can delivery within 2 working days; for special specification, we can delivery around 5 working days. For one piece sample of small power, we advise to use express way such as DHL, UPS, Fedex, EMS etc.
About shipping and delivery:
Sanyu has large inventory in stock, so for normal order, we can delivery in around 5 working days.For the delivery way, you can choose by sea, by air, by express way etc. It's according to your requirement. Also we will give you our advise since we have abudant experience.
Offical website:www.sanyuacdrive.com
|
|
|
|
|
|
|
|
|
|
|
| Item | description |
| Rated voltage, frequency | Single phase,220V,50Hz/60Hz; 3 phase, 380V,50Hz/60Hz |
|
| input | Allowed fluctuation | Continuous voltage fluctuation:within±10%, instant voltage fluctuation: within -15%10%; voltage imbalance: <3%; frequency fluctuation: within 5%. |
| output | Voltage | Single phase,220V & 3 phase,380V |
| Output frequency | 0~600Hz. |
| Overload capability | 150% rated current,1 minutes; 180% rated current,1 seconds |
| control trait | Command input mode | By LCD keypad, by terminals, by PC through serial communication port. |
| Control mode | Open loop vector control, V/F control. |
| Speed setting method | By keypad, by analog, by PC through serial communication port |
| Speed setting precision | Digital command±0.01%(-10 +40) |
|
| analog command±0.1%(25°C±10) |
| Speed setting resolution | Digital command:0.01Hz; analog command:0.1% of maximum frequency |
| Speed control accuracy | Open loop vector control: ±0.5%; (25°C±10) |
| Speed regulation range | Open loop vector control: 1:100 |
| Torque control response | Open loop vector control:<200ms. |
| Start torque | Open loop vector control:150% of rated torque at 0.5Hz. |
| Torque control accuracy | ±5% |
| Set reference voltage supply output | 1 port, +10V, 5mA |
| Control voltage supply output | 24V,100mA |
| Analogy input | 2 terminal, No.4 terminal is use for voltage, No. 5 is used for voltage and current input |
| Analog meter output | 1 terminal, 0/4~20mA or 0~10V available for it |
| DO frequency signal output | 1 port, high-frequency signal output(programmable) |
| Collector open-loop output | One terminal |
| Programmable relay output | contactor capacity: 250V AC/3A or 30V DC/1A |
| Serial communication port | RS-485 connector RS485+,RS485- |
| 4 bits LED display | setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, programming menu parameters and fault code. |
| Five indication lamp | Parameter unit, RUN/STOP status, special status, charging status. |
| Protection function | Protection function | Over voltage, under voltage, current limitation, over current, overload of inverter, overload of motor, overheat, overvoltage stallout, load short circuit, phase fault. |
| Protection degree | IP21 |
| Cooling mode | Forced air cooling |
| environment | Ambient temperature | -10°C,+40°C |
| Temperature | 2090% RH(no condensation) |
| Storage temperature | -20°C,+ 60°C |
| Application area | indoor(no corrosive odor, dust) |
| Installation area | Altitude is not more than 1000meter, no dust, no corrosive oder, no direct sunlight. |
| Vibration | less than5.9m/ S 2 |
Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.
SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.
In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.
Let's make a bright future together!
