| Prod Model: |
SY8600 |
| Color: |
Black |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
High Carrier Frequency PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Sanyu |
Product Description

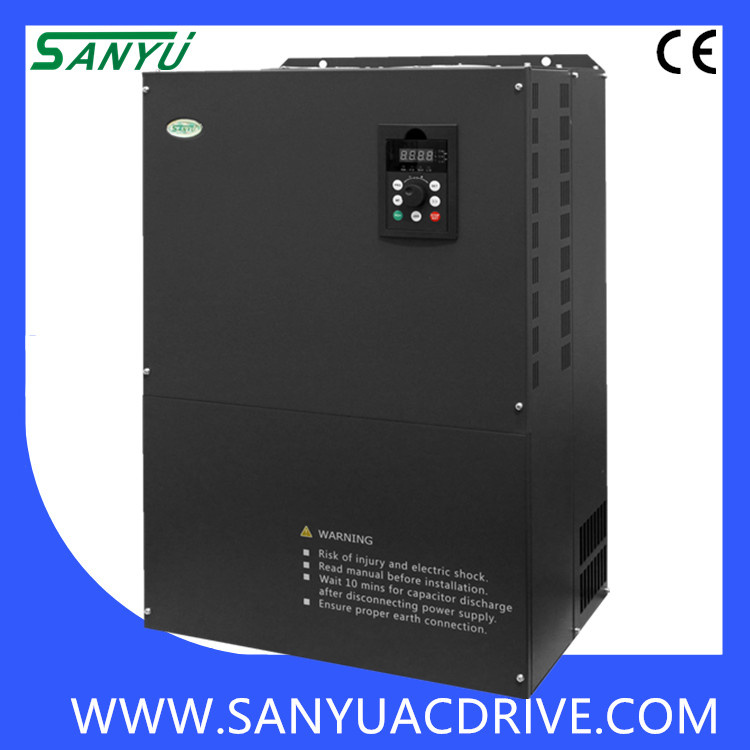

SY8600 series Frequency Inverter
1. The control mode is various and it is commonly used.
2. The motor parameters can be automatically recognized.
3. When the frequency is 0.5Hz, the torque output will be 150%.
4. Zero speed torque output.
5. Super-silent running.
6. Trip suppression to achieve more stable running.
7. The quick menu design.
8. Simple PLC, PID adjustment.
9. The structure is compact and light.
10. Built-in RS-485 communication.
11. Interface, standards MODBUS protocol.
12. 25 types of protection function.
13. Can upgrade to SY8800 for loop control.
14. Can customize Voltage up to 3PH 660V, 630KW.
Specifications of SANYU Frequency Inverter SY8600 series
| Item | Description | | Input | Rated voltage,
frequency | 1 phase, 220V, 50Hz/60Hz;
3 phase, 380V, 50Hz/60Hz | | Allowed fluctuation | Continuous voltage fluctuation: within± 10%;
Instant voltage fluctuation: within 15%~10%;
Voltage imbalance: < 3%;
Frequency fluctuation: within 5%. | | output | Voltage | 1 phase, 220V / 3 phase, 380V | | Output frequency | 0~600Hz. | | Overload capability | 150% rated current, 1 minutes; 180% rated current, 1 seconds | | Control trait | Command input mode | By LCD keypad, by terminals, by PC through serial communication port. | | Control mode | Open loop vector control, V/F control. | | Speed setting method | By keypad, by analog, by PC through serial communication port | | Speed setting precision | Digital command± 0.01%(-10 +40)
analog command± 0.1%(25° C± 10) | | Speed setting resolution | Digital command: 0.01Hz; analog command: 0.1% of maximum frequency | | Speed control accuracy | Open loop vector control: ± 0.5%; (25° C± 10) | | Speed regulation range | Open loop vector control: 1: 100 | | Torque control response | Open loop vector control: < 200ms. | | Start torque | Open loop vector control: 150% of rated torque at 0.5Hz. | | Torque control accuracy | ± 5% | | | Set reference voltage supply output | 1 port, +10V, 5mA | | Control voltage supply output | 24V, 100mA | | Analogy input | 2 terninal, No. 4 terminal is use for voltage, No. 5 is used for voltage and current input | | Analog meter output |
1 terminal, 0/4~20mA or 0~10V available for it | | DO frequency signal output | 1 port, high-frequency signal output(programmable) | | Collector open-loop output | One terminal | | Programmable relay output | contactor capacity: 250V AC/3A or 30V DC/1A | | Serial communication port | RS-485 connector RS485+, RS485- | | 4 bits LED display | setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, programming menu parameters and fault code. | | Five indication lamp | Parameter unit, RUN/STOP status, special status, charging status. | | Protection function | Protection function | Over voltage, under voltage, current limitation, over current, overload of inverter, overload of motor, overheat, overvoltage stallout, load short circuit, phase fault. | | | Protection degree | IP21 | | Cooling mode | Forced air cooling | | Environment | Ambient termearture | -10° C, +40° C | | Termperature | 2090% RH(no condensation) | | Storage termperature | -20° C, + 60° C | | Application area | indoor(no corrosive odor, dust) | | Installation area | Altitude is not more than 1000meter, no dust, no corrosive oder, no direct sunlight. | | Vibration | less than5.9m/S 2 |
|
Catalogue of SANYU Frequency Inverter SY8600 series
| Model | Applicable motor
(KW) | Rated input current
(A) | Rated output current
(A) | Dimension
(W*H*D mm) | G.W.
(KG) | Input voltage | | SY8600-0R7G-S2 | 0.75 | 9 | 4.5 | 119*185*159 | 2.2 | 220V±15%
Single Phase | | SY8600-1R5G-S2 | 1.5 | 14.5 | 7 | 119*185*159 | 2.2 | | SY8600-2R2G-S2 | 2.2 | 23 | 10 | 119*185*159 | 2.2 | | SY8600-0R4G-2 | 0.4 | 5.5 | 2.6 | 119*185*159 | 2.2 | 220V±15%
3Phase | | SY8600-0R7G-2 | 0.75 | 9 | 4.5 | 119*185*159 | 2.2 | | SY8600-1R5G-2 | 1.5 | 14.5 | 7.5 | 119*185*159 | 2.2 | | SY8600-2R2G-2 | 2.2 | 23 | 10 | 119*185*159 | 2.2 | | SY8600-0R7G-4 | 0.75 | 3.5 | 2.5 | 119*185*159 | 2.2 | 380V±15%
3Phase | | SY8600-1R5G-4 | 1.5 | 6.2 | 3.8 | 119*185*159 | 2.2 | | SY8600-2R2G-4 | 2.2 | 9.2 | 5.5 | 119*185*159 | 2.2 | | SY8600-004G/5R5P-4 | 4/5.5 | 15/19.5 | 9/11 | 119*195*169 | 2.6 | | SY8600-5R5G/7R5P-4 | 5.5/7.5 | 21/26 | 13/17 | 150*258*184 | 4.0 | | SY8600-7R5G/011P-4 | 7.5/11 | 26/39 | 17/22 | 150*258*184 | 4.0 | | SY8600-011G/015P-4 | 11/15 | 39/50 | 24/30 | 210*337*191 | 8.7 | | SY8600-015G/018P-4 | 15/18.5 | 50/60 | 30/37 | 210*337*191 | 8.7 | | SY8600-018G/022P-4 | 18.5/22 | 60/70 | 39/45 | 285*501*230 | 19 | | SY8600-022G/030P-4 | 22/30 | 70/86 | 45/60 | 285*501*230 | 19 | | SY8600-030G/037P-4 | 30/37 | 86/104 | 60/75 | 285*501*230 | 19 | | SY8600-037G/045P-4 | 37/45 | 104/124 | 75/90 | 352*585*274 | 35 | | SY8600-045G/055P-4 | 45/55 | 124/150 | 91/110 | 352*585*274 | 35 | | SY8600-055G/075P-4 | 55/75 | 150/190 | 112/150 | 352*585*274 | 35 | | SY8600-075G/090P-4 | 75/90 | 201/235 | 150/176 | 404*680*303 | 48 | | SY8600-090G/110P-4 | 90/110 | 160/196 | 176/210 | 485*760*316 | 66 | | SY8600-110G/132P-4 | 110/132 | 196/232 | 210/253 | 485*760*316 | 66 | | SY8600-132G/160P-4 | 132/160 | 232/282 | 253/300 | 533*830*372 | 94 | | SY8600-160G/185P-4 | 160/185 | 282/330 | 304/340 | 533*830*372 | 94 | | SY8600-185G/200P-4 | 185/200 | 330/352 | 340/380 | 638*1402*374 | 175 | | SY8600-200G/220P-4 | 200/220 | 352/385 | 380/420 | 638*1402*374 | 175 | | SY8600-220G/250P-4 | 220/250 | 385/460 | 426/470 | 638*1402*374 | 175 | | SY8600-250G/280P-4 | 250/280 | 460/491 | 470/520 | 700*1627*460 | 253 | | SY8600-280G/315P-4 | 280/315 | 491/552 | 520/600 | 700*1627*460 | 253 | | SY8600-315G/350P-4 | 315/350 | 552/624 | 585/640 | 700*1627*460 | 253 | | SY8600-355G/400P-4 | 355/400 | 624/704 | 650/690 | 800*1772*460 | 300 | | SY8600-400G/450P-4 | 400/450 | 704/792 | 730/775 | 800*1772*460 | 300 | | SY8600-450G/500P-4 | 450/500 | 792/835 | 830/860 | 800*1772*460 | 300 |
|
Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.
SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.
In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.
Let's make a bright future together!
