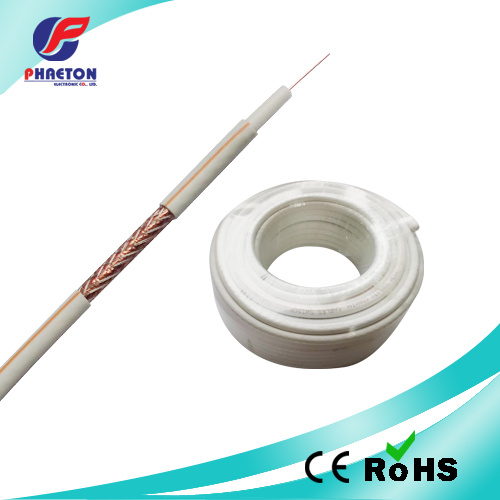

Sat50 RF Coaxial Cable TV Cable for Satellite

Prod Model:	SAT50
Length:	100m/Roll
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ISO
Type:	Sat50

Product Description

ITEM: SAT50 COAXIAL CABLE

Specification:

SAT703: 0.9 CCC INSULATOR: Foam PE OD: 4.8mm+/-0.1mm, BRAID:48#/0.12mm AL  wire+ copper color  AL foil, JACKET: PVC OD: 6.6+/-0.05mm ,with orange red  line at the PVC

PACKING: Shrink with color paper cover . 100m/roll

High quality : 1000MHZ DB loss less than 20 DB .

pecificaitons
Physical dimensions
component	Standard-shield		Tri-shield		Quad-shield
	Inchs	mm	inchs	mm	inchs	mm
Nominal center conductor diameter	0.04	1.02	0.04	1.02	0.04	1.02
Nominal diameter over dielectric	0.18	4.57	0.18	4.57	0.18	4.57
Nominal diameter over first shield	0.187	4.75	0.187	4.75	0.187	4.75
Nominal diameter over jacket	0.272	6.91	0.278	7.06	0.30	7.62
Nominal jacket wall thickness	0.03	0.76	0.03	0.76	0.034	0.86
Nominal diameter of steel messenger	0.051(single)	1.3	0.051(single)	1.3	0.051(single)	1.3
	0.072(dual)	1.83	0.072(dual)	1.83	0.072(dual)	1.83

Electrial Characteristics
Nominal impedance	75ohms
Nominal Velocity of propagation	85%

Attenuation(20°C)
Frequency(MHz)	Maximum(dB/100ft)	Maximum(dB/100m)
55	1.60	5.25
211	3.05	10.00
350	3.85	12.63
450	4.40	14.43
550	4.90	16.08
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49

FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
   We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company  is only one hour by train from shanghai
:
