| Prod Model: |
satellite tracking gps tracker (GPS103A) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Vehicle GPS GSM Tracker 103 |
| Application: |
Vehicle Fleet/Logistics/Vehicle Rental |
| Weight: |
120g |
| Network: |
GSM GPRS GPS |
| Tracking: |
by SMS or GPRS |
| APP Tracking: |
Android Ios APP Tracking |
| Warranty Time: |
12 Months |
| Delivery Time: |
2-3 Business Days |
| Car Security: |
Acc/Door Alarm.Engine Shut, Fuel Monitor |
| Immobilizer: |
Stop Car Remotely |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Get Position, GSM Transmit Data |
| Port Number: |
GPS Get Position, GSM Transmit Data |
| Model: |
Vehicle GPS Tracking 103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban GPS Tracker |
| Certification: |
Ios9001 |
Product Description

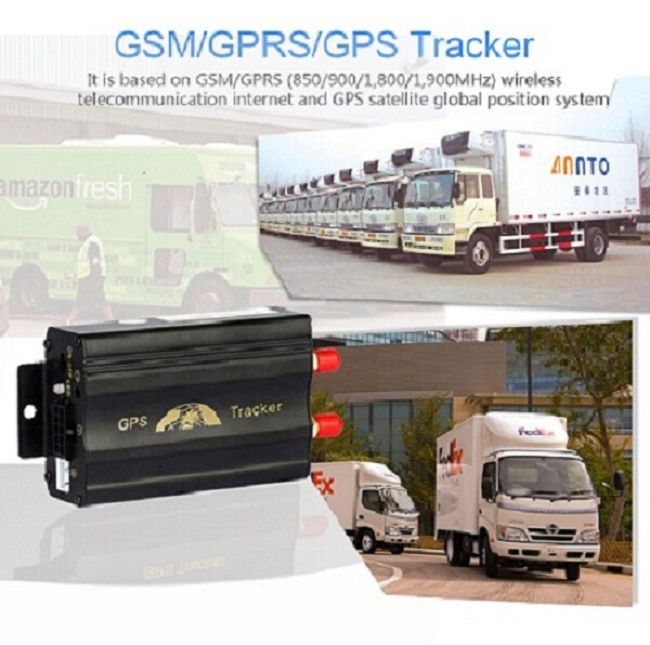

satellite real time tracking gps tracker with immobilizer (GPS103A)
Applying directions: Vehicle fleet/logistics/Vehicle rental
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Multiple Tracking Ways:
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Web based online tracking on PC at our server www.gpstrackerxy.com
*android &Iphone APP real time track on cell phone
Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Packing contents:
car GPS Unit tk103
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual | package
Optional accessories
Shock sensor
alarm siren
Microsd memory card
fuel sensor
Specifications
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
GPS tracker Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
GPS tracker Delivery
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
