Saving 20% Cost UL Verified Fast Print PCB

Name: Saving 20% Cost UL Verified Fast Print PCB
Brand: all-electronics-online.com
SKU: 811576205
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 0.28-0.45/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	HB

Product Description

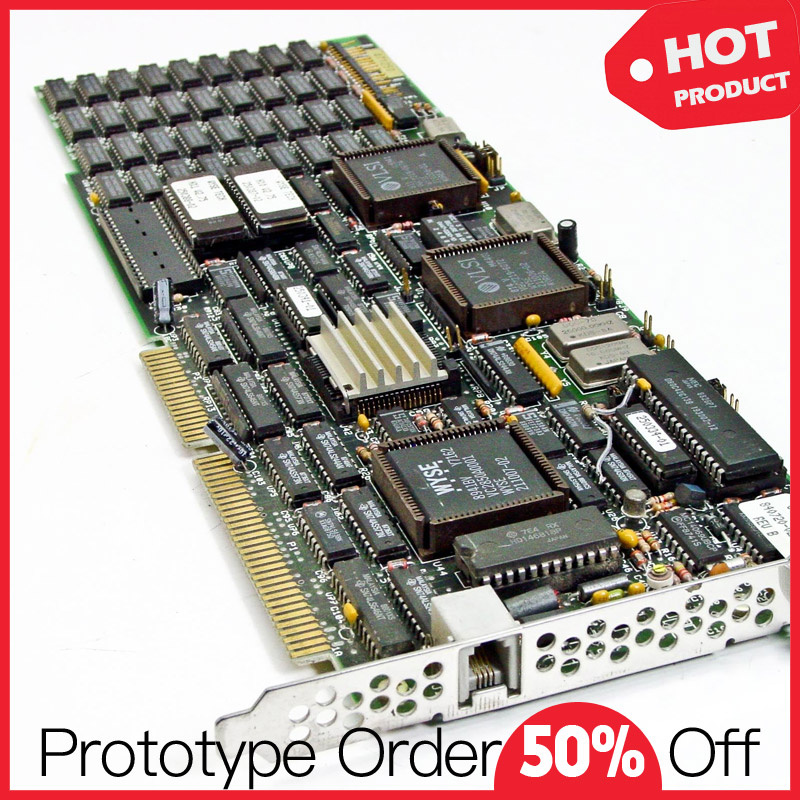

Saving 20% Cost UL Verified Fast Print PCB

Faster than Bolt.

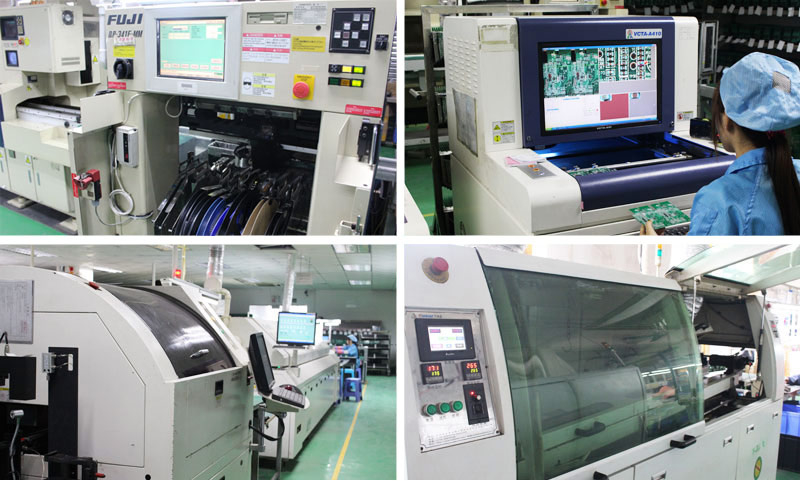

Fast Print PCB Assembly Equipment
1. High speed and precision chip placer or multi-function SMD mounter
2. Wave soldering machine
3. Vacuum machine
4. High temperature box
5. Auto-solder paste printer
6. Hot- and mixed-air reflow

1.Components list
(a) Specification, brand, footprint
(b)To short the lead time, please kindly advise us if there is any acceptable components substitution.
(c) Schematic if necessary
2. PCB board information
(a) Gerber files
(b) PCB board processing technic
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Package requirement

Fast Print PCB Assembly Manufacturing Capabilities

Turn Times	Selected Volume	Selected Solder Types
Same day through four weeks turns	No minimum order quantity	Leaded
Scheduled deliveries	Engineering prototypes	Lead-free/RoHS compliant
	Low cost first article builds	No-clean process available
Parts Procurement	Selected Stencils	Selected Ball Grid Arrays (BGA)
Turnkey	Laser cut stainless steel	As small as .5mm pitch
Kitted/Consigned	Nano-coating available	All BGA placements are x-ray inspected
Partial Turnkey
Assembly Types	Selected Component Types	Selected Other Capabilities
Surface Mount (SMT)	As small as 0402 package	Pitch components as small as 15 mil
Thru-hole	As small as 0201 with design review	Repair/Rework services
Mixed Technology (SMT/Thru-hole)		Mechanical Assembly
Single or double sided placement		Box Build/Electromechanical Assembly
		Sub-assemblies

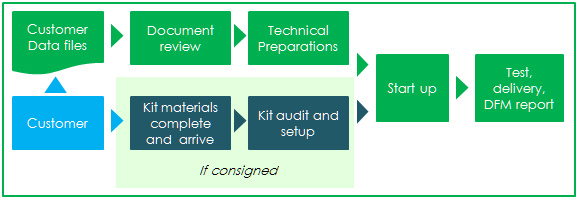

Fast Print PCB Assembly Manufacturing Process

About Us
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We are offering fast print PCB manufacturing and assembly services to following big customers all over the world

Your fast print PCB demand will be perfectly handled by our professional production line and responsible work team.

Trade Terms:
1. Payment: T/T in advance (Western Union , payple is welcomed)
2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Guangzhou, Huangpu,China
6. Discounts are offered based on order quantities
7. MOQ: 1PCS

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
