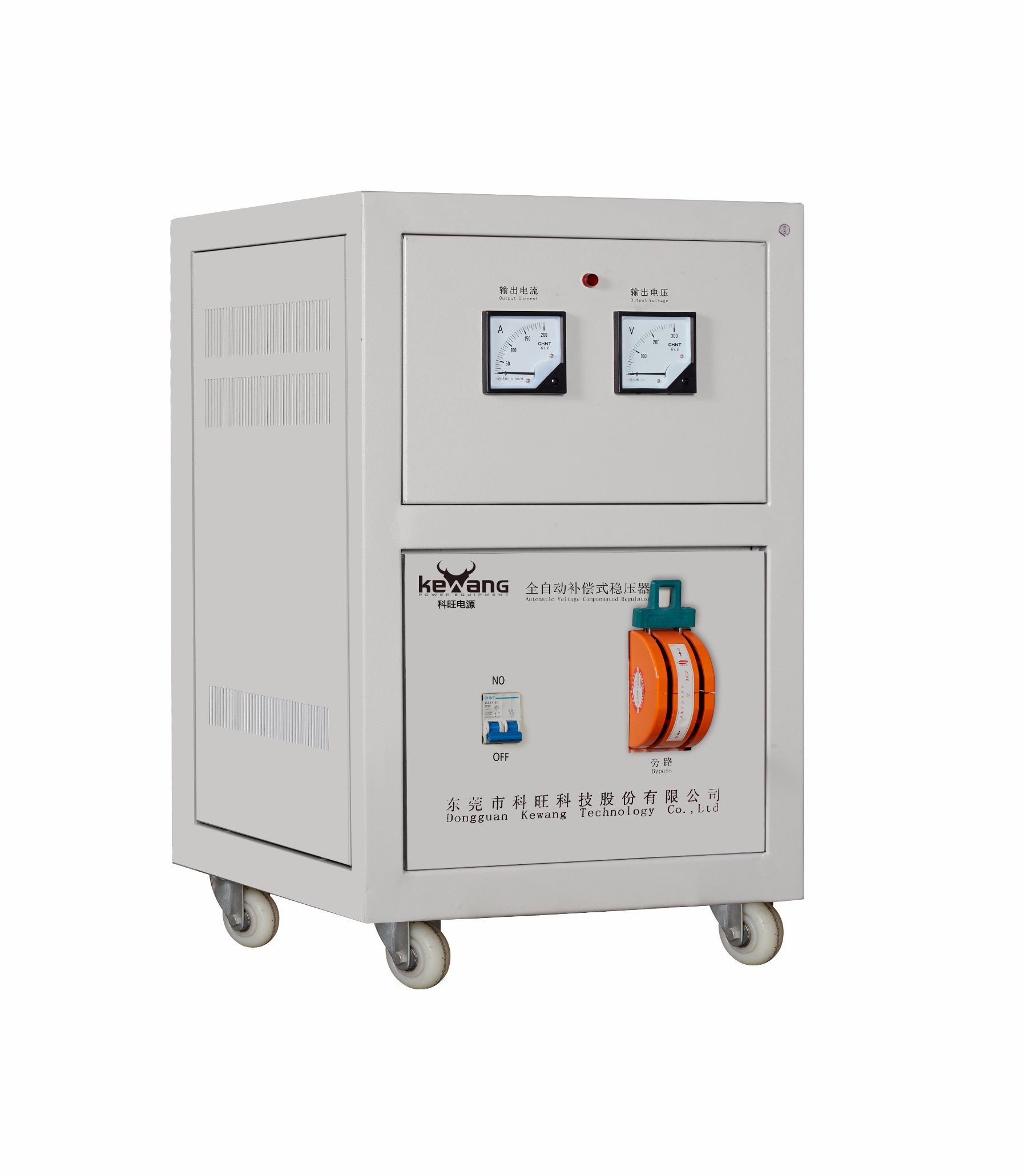

SBW 20kVA Three Phase 380V Automatic Voltage Regulator

Name: SBW 20kVA Three Phase 380V Automatic Voltage Regulator
Brand: all-electronics-online.com
SKU: 705213602
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-20KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity Range:	SBW 3~20kVA, SBW 6~60kVA
Effeiciency:	>96%
Input Voltage:	220V ±15%/ ±20%/±30%
Output Voltage:	220V
Voltage Regulation Accuracy:	±1~5 %
Current Type:	AC
Phase:	Three Phase
Usage:	DBW
Frequency:	Industrial Frequency
Frequency Characteristics:	50Hz/60Hz
Brand:	Kewang

Product Description

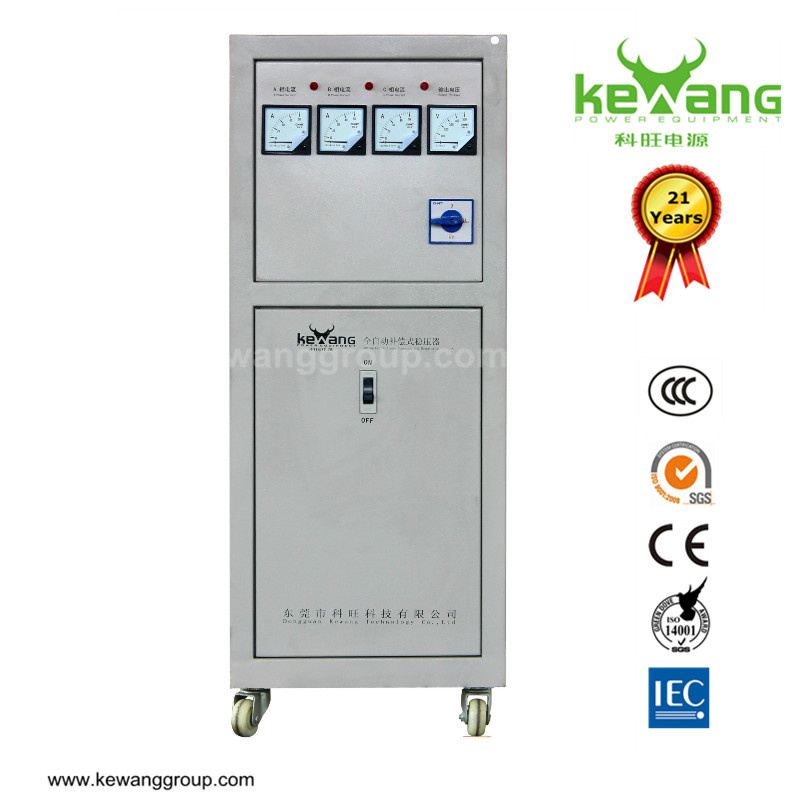

SBW/DBW Automatic Voltage Regulator

Introduction
SBW/DBW series automatic voltage regulator is designed to stabilize the AC voltage. By using the superposition principle, compensation method to make the system output from the power grid stably. It can automatically maintain the stability of voltage output When the fluctuation or load changed.

Feature
1. Pure copper coils with excellent electrical conductivity.
2. Good adapbility with wide loads, compact size and light weight.
3. Protection system: Over load, over voltage, short circuit protection.
4. Higher precision,longer cycle life,more stable voltage.

Senarios
Household Appliances: TV, Air-conditioning, Induction Cooker, Refrigerator, Water Heating
Industry Machine: Plastics&Rubber Machinery, Textile Mill Machinery, Food&Medicine Machinery, Printing&Publishing Machinery
Telecommunication Equipment: PABX, Satellite Receiver&Tansmitter, Radio&Television Transmitter

Technical Parameters

Capacity Range	DBW 3~20KVA	SBW 6~60KVA
Input Voltage	Single Phase 220V ±15%/ ±20%/±30%	Three Phase 380V/400V±15%/ ±20%/±30%
Output Voltage	220V	380V/400V
Voltage Regulation Accuracy	±1~5 %(settable)
Frequency	50Hz 60Hz
Response Time	< 0.5s
Efficiency	> 96%
Ambient Temperature	-10ºC~ +40ºC

PARAMETERSSPECIFICATION(ONLY FOR REFERENCE)

Model	Capacity(KVA)	Phase	Dimension(W×D×H)mm	N.W(kg)	Cabinet
SBW-6	6	3	430×480×760	48	1
SBW-10	10	3	430×480×760	65	1
SBW-15	15	3	430×570×760	75	1
SBW-20	20	3	450×500×1100	130	1
SBW-30	30	3	450×500×1100	150	1
SBW-45	45	3	450×550×1260	163	1
SBW-60	60	3	450×550×1260	192	1
DBW-3	3	1			1
DBW-5	5	1			1
DBW-10	10	1			1
DBW-15	15	1			1
DBW-20	20	1			1
DBW-30	30	1			1

BRIEF VIEW OF KEWANG GROUP

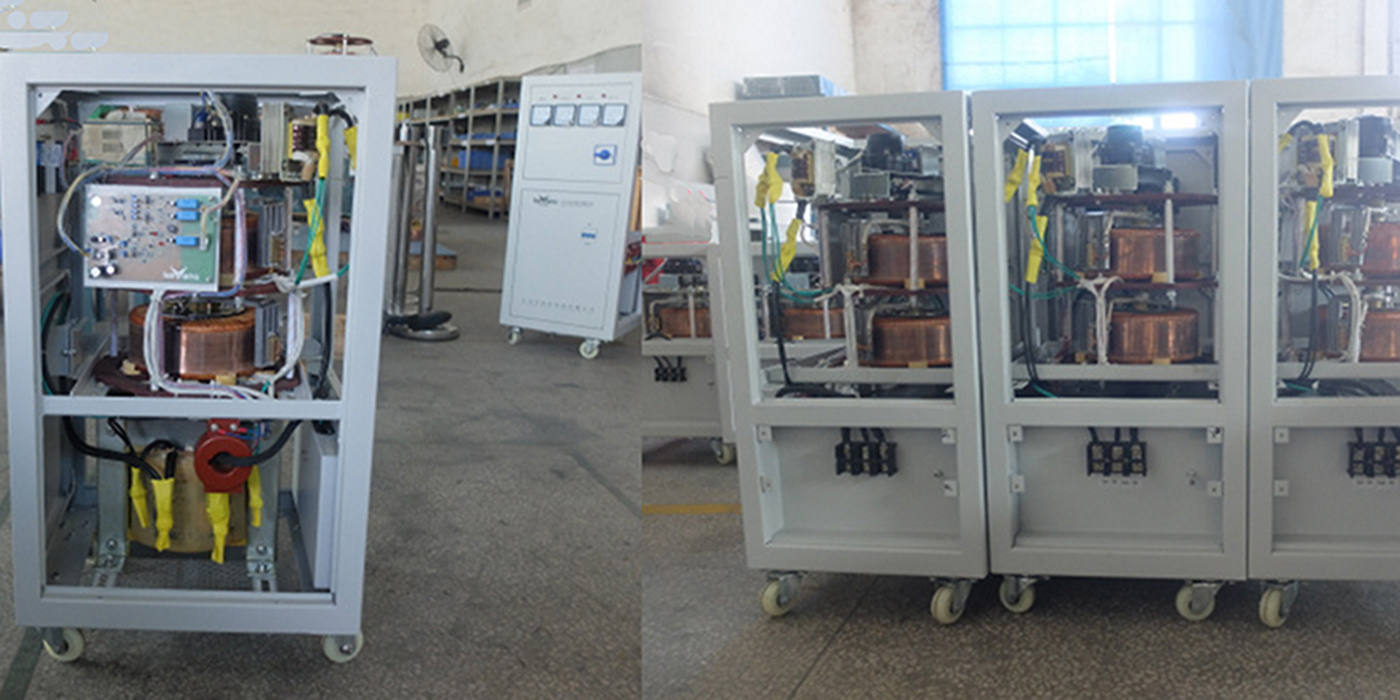

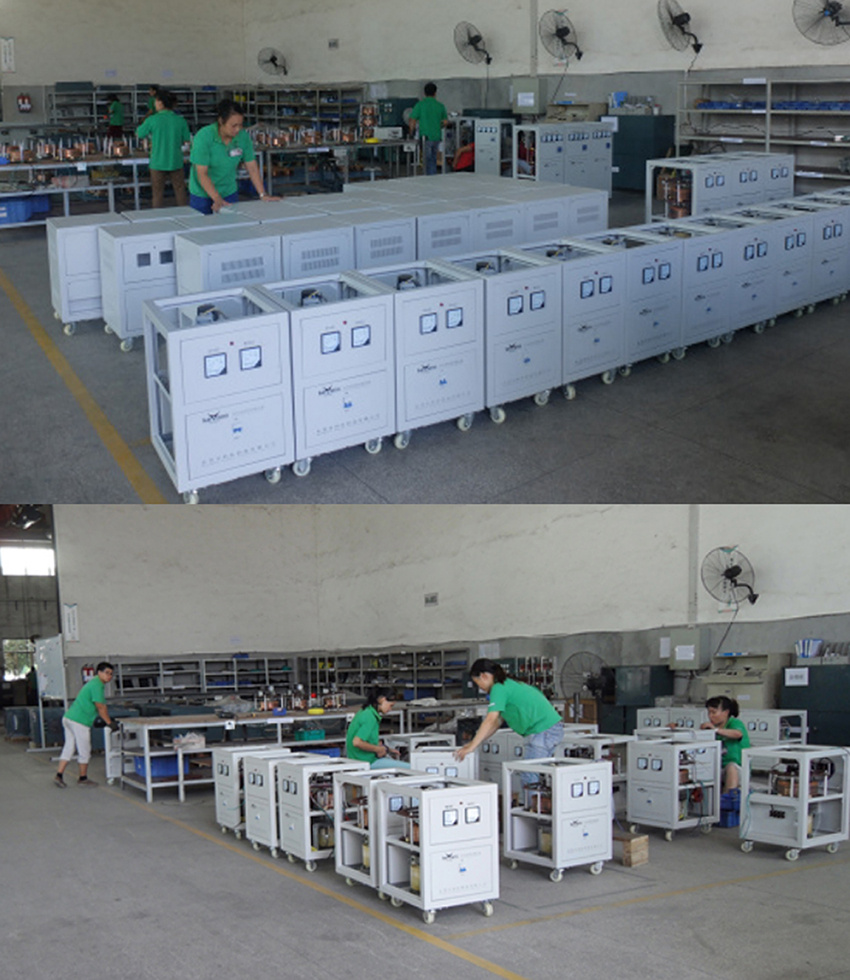

Factory View

Shipments

Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.

As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.

Product line:

1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.

2. RlS Series Contactless Intelligent type Voltage Stabilizer

3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery

4. DBW/SBW Dry type Voltage Regulator

5. SE series Air-cooled Transformer

6. UPS

7. Generator Set
