| Prod Model: |
SBW-II-15KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
SBW |
| Type: |
Auto Voltage Regulator |
| Capacity: |
SBW(6-60kVA) |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SBW |
| Frequency: |
Industrial Frequency |
| Brand: |
Kewang |
Product Description

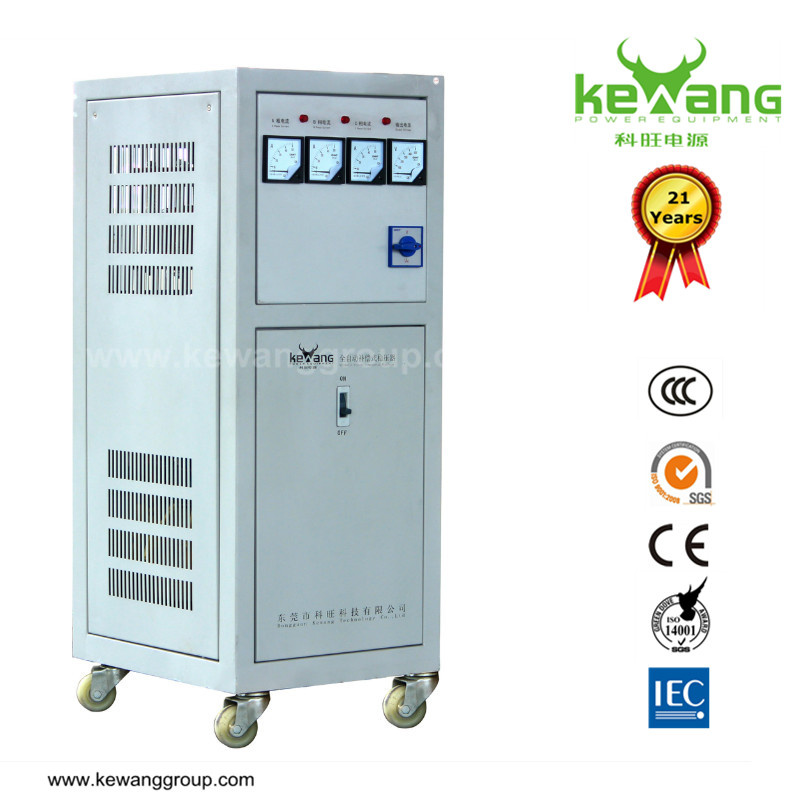

SBW 380V 15KVA Three phase Voltage stabilizer power supply
Introduction
SBW/DBW series Automatic voltage regulator is designed to stabilize the AC voltage. Our highlight of design is by using the superposition principle, compensation method to make the most of the stability of the system output power directly from the power grid.When the grid voltage fluctuation or load changes caused by the voltage fluctuation, can automatically maintain the stability of voltage output. We have variety, complete specifications of such kind of products with small volume, light weight, load wide adaptability, no additional additional waveform distortion, high reliability and can work continuously for a long time, convenient in operation and maintenance. Widely used in industrial and mining enterprises, household appliances, medical equipment, mechanical processing, testing equipment, elevators, school, etc.| Capacity range | DBW 3~20KVA | SBW 6~60KVA |
| Input voltage | Single phase 220V ±15%/ ±20%/±30% | 3 Phase 380V/400V±15%/ ±20%/±30% |
| Output voltage | Single phase 220V | 3 Phase 380V/400V |
| Voltage regulation accuracy | ±2~±5 %(settable) |
| Frequency | 50Hz 60Hz |
| Response time | < 0.5s |
| Efficiency | > 96% |
| Waveform distortions | <1% |
| Industry power voltage | 1500V/60s | 2000V/60s |
| insulation resistance | > 5MΩ |
| Ambient temperature | -10ºC~ +40ºC |
| Relative humidity | < 90% |
| Altitude | < 1000m |
| Model | Capacity (kVA) | Phase | Dimensions(mm) | Weight(kg) |
| SBW-6 | 6 | 3 | 430*480*760 | 48 |
| SBW-10 | 10 | 3 | 430*480*760 | 65 |
| SBW-15 | 15 | 3 | 430*570*760 | 75 |
| SBW-20 | 20 | 3 | 450*500*1100 | 130 |
| SBW-30 | 30 | 3 | 450*500*1100 | 150 |
| SBW-45 | 45 | 3 | 450*550*1260 | 163 |
| SBW-60 | 60 | 3 | 450*550*1260 | 192 |
| | | | | |
| Model | Capacity | Phase | Dimensions(mm) | Weight(kg) | Carton |
| Capacity (kVA) | Phase | Dimensions(mm) | Weight(kg) |
| DBW-5 | 5 | 1 | 350*360*350 | 25 |
| DBW-10 | 10 | 1 | 450*480*800 | 80 |
| DBW-15 | 15 | 1 | 450*480*800 | 90 |
| DBW-20 | 20 | 1 | 450*480*800 | 136 |
Installation site should be no serious effect on the transformer insulating gas, steam, chemical deposition, dust, dirt, and other explosive corrosive medium; It cannot be installed in a condition of significant vibration turbulenceKEWANG GROUP
Kewang was established in 1995 with headquarter in Songshan Lake National High-Tech Industrial Development Zone, Donguan city, Guangdong Province, China. It has a total construction of 50,000 square meters which consists of two subsidiaries, Dongguan Kewang Technology Co., Ltd. & Jiangxi Kewang Technology Co., Ltd. Dongguan Kewang is the Group's high class product development, manufacturing and sales base. Jiangxi Kewang is the Group's standard products R & D, manufacturing base with an area of 130,000 square meters.
Kewang Group is a high-tech enterprise nominated by Guangdong Government. It's engaged in new energy and power supply whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Kewang Group upholds the principle of "Technology Oriented & Sustainable Operation". We keep introduction of new techniques for innovated products, keep on improving management & optimizing product quality. We are dedicated to provide global customers power solutions which are reliable, energy-saving & environment-friendly. We create win-win value for customers, and return value to the society, which is our original motivation.
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
