| Prod Model: |
SBW/DBW AVR 10-45KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Response Time: |
< 0.5s |
| Frequencyt50Hz 60Hz: |
50Hz 60Hz |
| Efficiency: |
> 96% |
| Waveform Distortions: |
<1% |
| Altitude: |
< 1000m |
| Relative Humidity: |
< 90% |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
JIW |
| Frequency: |
Low Frequency |
| Brand: |
Kewang |
Product Description

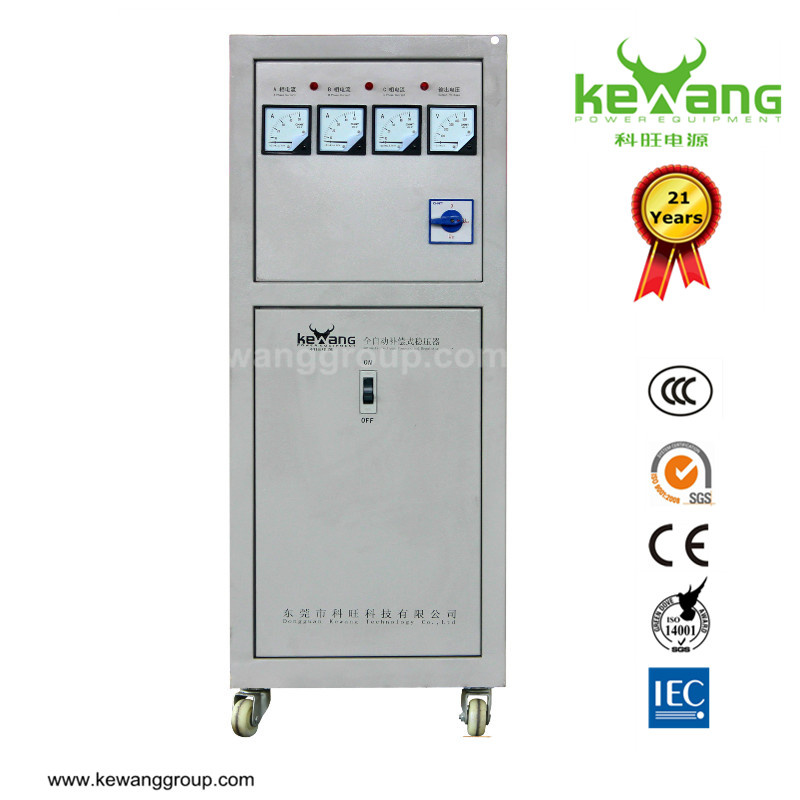

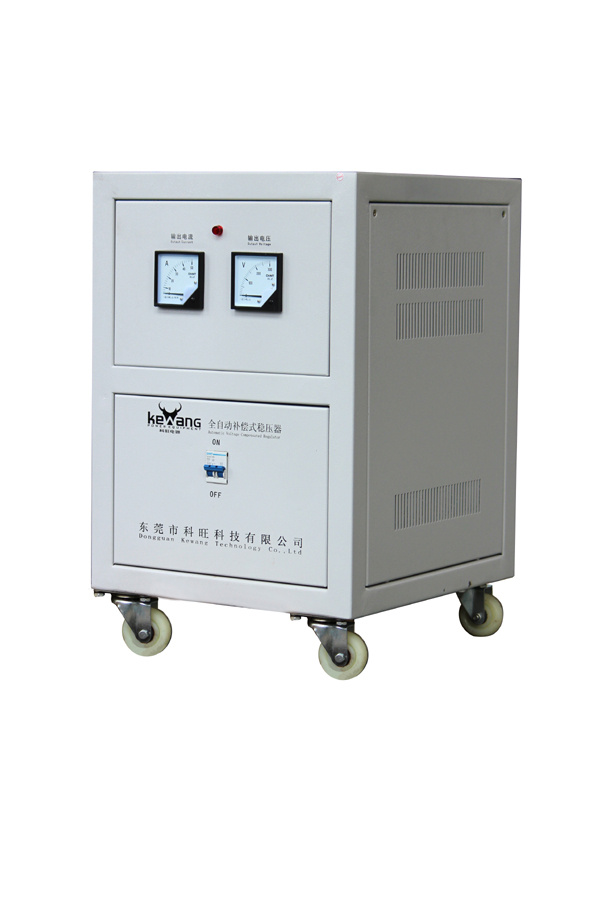

SBW/DBW Automatic Voltage Regulator
Product Introduction
SBW/DBW series automatic voltage regulator was designed to stabilie the AC voltage. By using the superposition principle, compensation
method to make the system stably output from the power grid. It can automatically maintain the stability of voltage output When The
fluctuation or load changed. We have variety, complete specifications of such kind of products with small volume, light weight, load wide
adaptability, high reliability, no additional waveform distortion; It work
and convenient in operation .Widely used in industrial and mining
enterprises, household appliances, medical equipment, mechanical
processing, testing equipment, elevators, school, etc.
Application:COMMERCIAL: High-rise building, elevator control, large A/C
chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, production lines, CNC, factory robotics, heavy load machinery, precision machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy
machine,other medical imaging equipment.
TELECOM: Data exchange center, Mobile base stations, control
centers and transmission relay stations.
Features:
--Auto/Manual operation and manual regulation functions.
--LED display for input voltage, output voltage, output current.
--Digital MCU is controlling output voltage. Voltage precision
is adjustable.
--Contactless carbon brush, High Reliability and strong resistance
ability to overload.
--Stepless voltage regulation to stabilize output voltage.
--Good adaptability to variant loads and ambient.
Specifications:| Model | Capacity (kVA) | Phase | Dimensions(mm) | Weight(kg) |
| SBW-6 | 6 | 3 | 430*480*760 | 48 |
| SBW-10 | 10 | 3 | 430*480*760 | 65 |
| SBW-15 | 15 | 3 | 430*570*760 | 75 |
| SBW-20 | 20 | 3 | 450*500*1100 | 130 |
| SBW-30 | 30 | 3 | 450*500*1100 | 150 |
| SBW-45 | 45 | 3 | 450*550*1260 | 163 |
| SBW-60 | 60 | 3 | 450*550*1260 | 192 |
|
|
|
|
|
|
|
|
|
|
| Model | Capacity (kVA) | Phase | Dimensions(mm) | Weight(kg) |
|
| DBW-5 | 5 | 1 | 350*360*350 | 25 |
| DBW-10 | 10 | 1 | 450*480*800 | 80 |
| DBW-15 | 15 | 1 | 450*480*800 | 90 |
| DBW-20 | 20 | 1 | 450*480*800 | 136 |
Above size and weight only for reference
