| Prod Model: |
SC-40A |
| Max. Current: |
3A, 21A |
| Max. Voltage: |
240V, 250VAC |
| Max. Working Pressure: |
50psi |
| Model Number: |
Sc-40 Air Pressure Switch |
| Brand Name: |
Yumo Air Pressure Switch |
| Media: |
Air or Other Non Hazardous Gas, Water |
| Type: |
Electronic |
| Application: |
Commercial |
Product Description

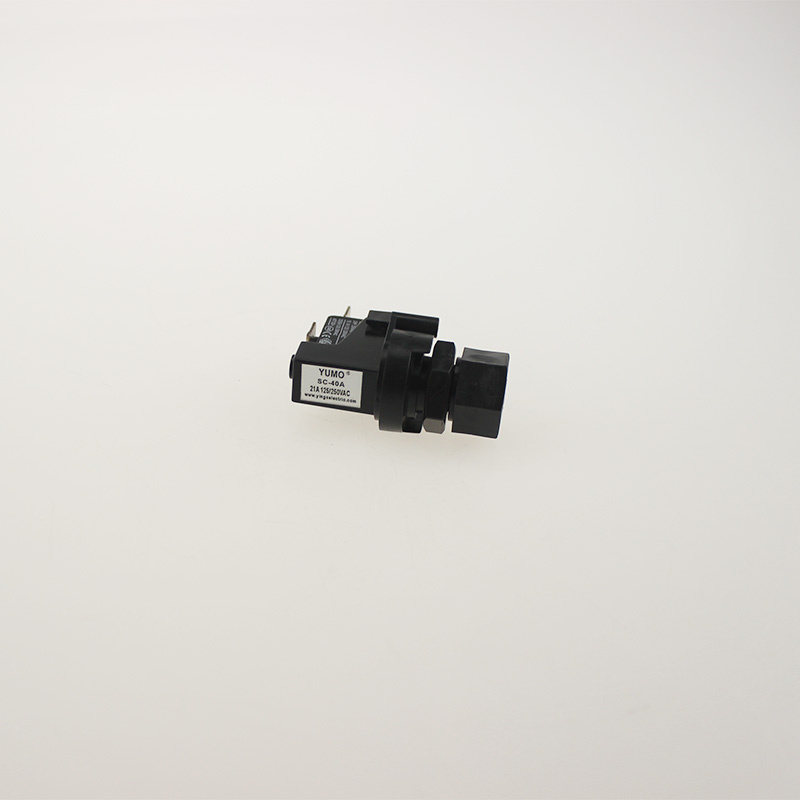

SC-40A air switch foot pedal air acuator Air Actuate Pressure Switch
SC-40 can be used together with SC-41 air button (also called as Actuator) for remote control purpose. It is widely used in food waste disposer, pumps for swimming pools and spas, hot tubs, sanitary equipment, out door machines, medical equipment etc. As a remote control switch, it is small enough to fix in the control box of the engine. Used as a remote control, the air switch has two actions:
1) Momentary action: when the air button is pushed, the air switch is actuated. When air button is released, the air switch will also be released. This is the way the basic pressure switches are working.
2) Alternate action (also referred to as latching or bistable): the first pushing on air button actuates the air switch, and the air switch keep actuating when air button is released. A second push on the air button will release the air switch.
| Model | SC-40 | |
| Media | Non hazardous gas or liquid | |
| Operating Pressure Range | 0.25~15psi for momentary action | |
| 0.55~1.8psi for Alternate action | |
| | |
| Proof Pressure | 50psi | |
| Operating temperature Range | -10ºC~+85ºC | |
| Contact Arrangement | SPDT or SPST | |
| | 5A,125/250VAC(0.25psi~15psi) | |
| Electrical Rating | 16A,125/250VAC(0.87psi~15psi) | |
| | 21A,125/250VAC(1.25psi~15psi) | |
| Terminals | 6.35 or 4.8mm male Q.C. | |
| Connection | Inlet 4.0mm for tube connection (Optional | |
| 1/8"NPT or other fittings are available) | |
