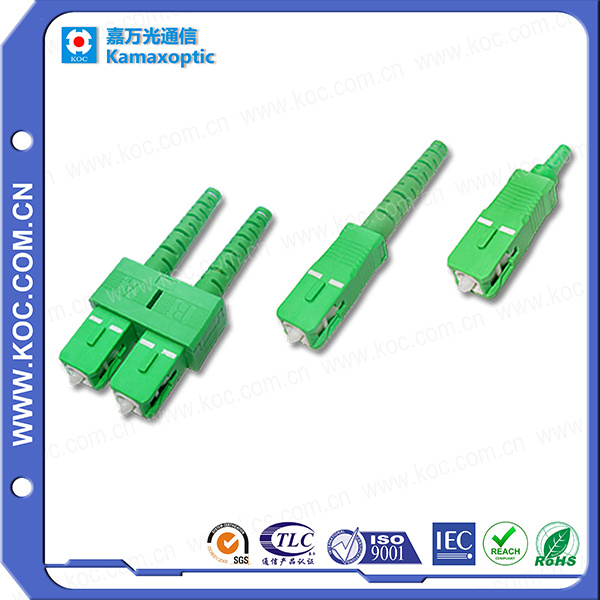

Sc/APC Connector 0.9/2.0/3.0 (101353-470) , High Quality Fiber Optic Sc Connector

Name: Sc/APC Connector 0.9/2.0/3.0 (101353-470) , High Quality Fiber Optic Sc Connector
Brand: all-electronics-online.com
SKU: 712348875
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	101353-470
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Scapc Fiber Optic Connector:	Low Loss
Single-Mode Or Multi-Mode:	High Quality Connector
Structure:	SC
Ferrule Endface:	APC
Transmission Medium:	Single-Mode or Multi-Mode
Number Of Cores:	Simplex or Duplex
Brand:	Koc

Product Description

APPLICATIONS
CATV
Metro
Test equipment
Premise installations
Data processing networks
Telecommunication networks
Local Area Networks (LANs)
Wide Area Networks (WANs)
Active device termination

FEATURES
Nickel plated brass body
Telcordia style boots
Free-floating ceramic ferrule
Boots and housing in green color
Low insertion loss and back reflection loss
Precision anti-rotation key and corrosion resistant body

STANDARDS
All components of/and the final product are designed and tested to conform the requirements of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801 2ND ED., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G. 651 or IEC60793-2-10 A1b or ITU-T G. 652 (depending on fiber), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455.

AVAILABILITY
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors
Housing kits without ferrule are available.

Insertion Loss	≤0.30dB
Return Loss	≥60 dB
Durability	≤0.2 dB typical change, 1000 matings
Operating Temperature	-20 to + 70°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤0.5μm
	125.5+1/-0μm, Concentricity: ≤0.5μm
	126.0+1/-0μm, Concentricity: ≤0.5μm

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
