| Prod Model: |
SCA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Uniboot: |
Two Connector Used One Boot |
| Cable Diameter Szie: |
2.0mm, 3.0mm |
| Housing Color: |
Green; Blue; Beige;Aqua' |
| Housing Material: |
Pei, ABS |
| Boot Type: |
Switchable Uniboot |
| Cable Jacket Material: |
PVC, LSZH,Ofnr,Ofnp |
| Cable Jacket Color: |
Green; Blue; Beige;Aqua'magenta; Black; |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Ferrule Endface: |
APC |
| Number Of Cores: |
Simplex, Duplex |
| Light Source TYPE: |
Fiber Optic Communication |
| Brand: |
Koc |
Product Description

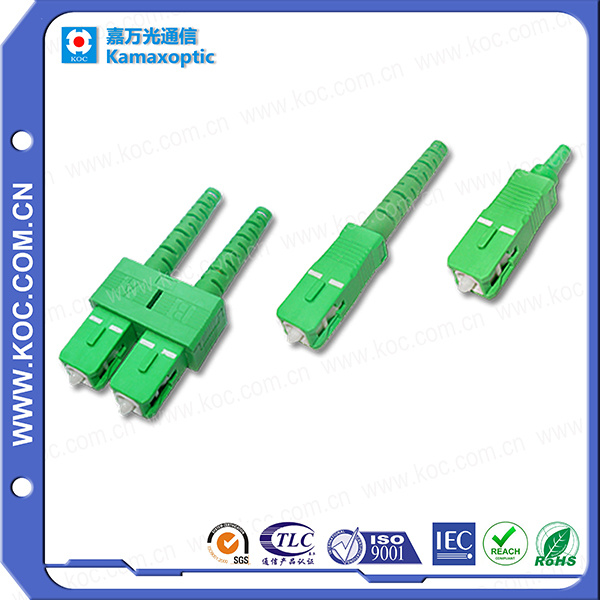

SC/APC fiber optical connectors with good price and good quality
BRIEF INTRODUCTION
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing connectors and all of the products are meet the Telcordia and IEC stander, the material compliance RoHS. If you have other special requirements, the ARK will be specifically for your customization to meet your needs.
Note: Ferrule with/without flange is available
SPECIFICATIONS
| ITEM | PARAMETER |
| Applicative Connector Type | SC,LC,FC,ST,MU,D4,DIN |
| Fiber mode | Single mode | Multi-mode |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.20dB,Max≤0.30dB | typical≤0.15dB,Max≤0.25dB |
| Return Loss | UPC≥50.0dB,APC≥60.0dB | ≥35.0dB |
| Durability | ≤0.20dB typical change,1000 mating |
| Applicative cable OD. | ∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm) |
| Connector Ferrule OD. | ∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU |
| Angle BOOT | SC,LC(45 or 90 degree) |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | - 40ºC to +85ºC |
| Ferrule Specification | 125.3+1/-0μm, Concentricity: ≤1.0μm | 127+3/-0μm, Concentricity: ≤3.0μm |
SC/APC ferrule polishing type:
(Conical type) (Step type) |
Features
1.Low insertion loss
2.Mechanicl properties conform to EN 50173 and EIA-568-A standards
3.Connector kits and components connectors are available.
4.For the connector,ceramic ferrule can provide APC type(conical type or step tye) and PC type.
5.All materials meet the RoHS standard.
Applications
1.Connector kits can be made into different kinds of patch-cord and pigtail.
2.Optical fiber communication system.
3.Actives and optical fiber sensors.
4.Communications machine rooms
5.FTTH.
6.Telecommunication network and CATV
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
