| Prod Model: |
Communication cable |
| Connector Type: |
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect |
| Cable Jacket Color: |
Yellow,Blue,Green,Aqua,Red,Magenta,Beige |
| Cable Outer Diameter: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| MPO MTP Polishing: |
PC,Upc,APC |
| Fiber Type: |
OS1,OS2,Om1,Om2,Om3,Om4 |
| Cable Jacket Material: |
PVC,LSZH,Ofnp,PE |
| Fiber Cores: |
Sx,Dx,4~144 Multi-Fibers Cores |
| Return Loss: |
PC>30dB; APC> 50dB |
| Insertion Loss: |
< 0.3 dB |
| Warranty: |
3 Years |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
CCC |
| Brand: |
Takfly |
| Sheath Material: |
PVC or LSZH |
Product Description

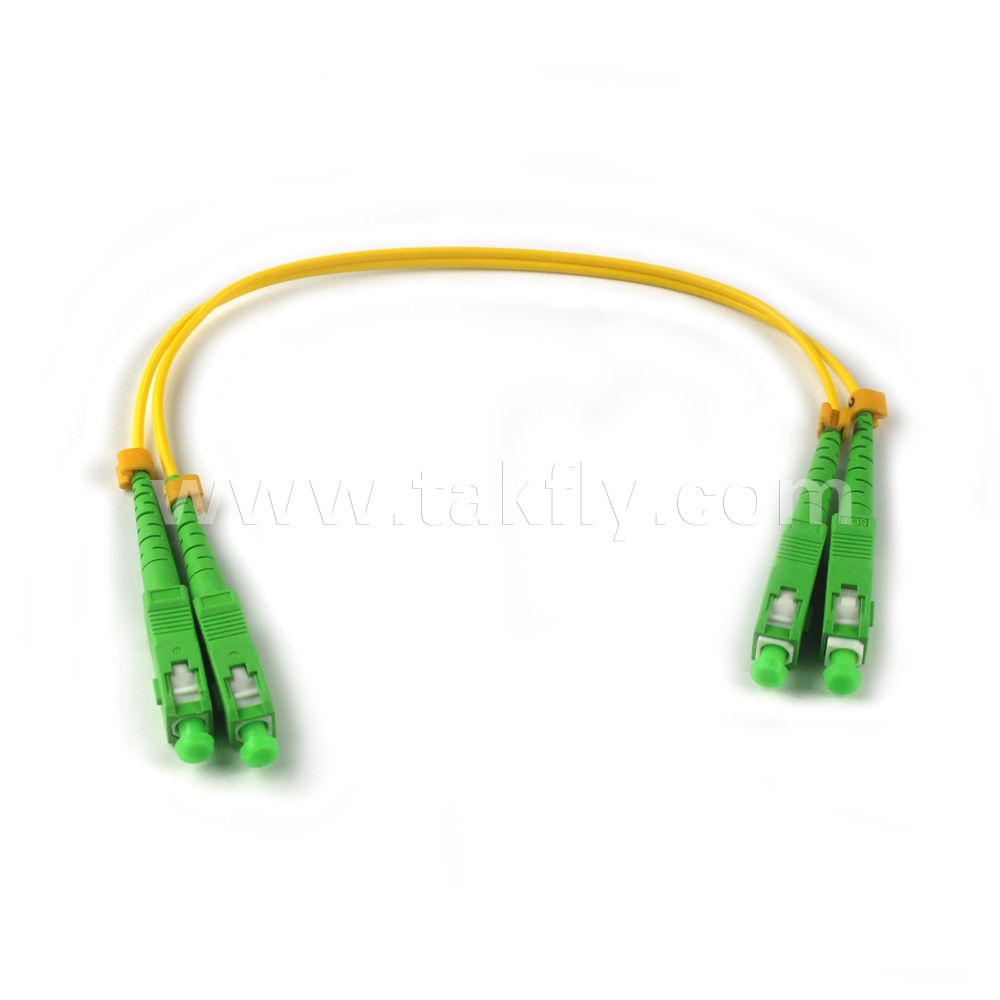

Sc/APC Duplex 9/125um Singlemode Communication Cable
Specification
1.Type: SC-SC
2.Polishing: PC (APC/UPC)
3.Insertion Loss: ≤0.2 dB
4.Return Loss: ≥50dB
5.Exchangeability: ≤0.2dB
6.Repeatability: ≤0.2dB/1000times
7.Operation Wavelenghth: 850nm,1310nm,1550nm
8.Operating Temperature: -30 °C ~ +75 °C
9.Storage Temperature: -40 °C ~ +85 °C
10.Cable OD: 3.0mm/2.0mm/0.9mm
11.Cable Material: OFNR,LDZH&Polarization maintaining
12.Mode: 9/125um
13.Fiber Cable Type: PVC 3.0mm
14.Spec: single core , dual - core , the 4 core , 6 cores , 12 core . . . etc(according to your requests)
15.the joint selection: FC,SC,ST,LC,MU,MTRJ,E-2000 and other
16.length: The length of patch cord is depend on user's requirements
Feature
1).Low insertion loss
2).High return loss (low amounts of reflection at the interface)
3).Ease of installation
4).Low cost
5).Reliability
6).Low environmental sensitivity
7).Ease of use
Application
1).CATV
2).Active device termination
3).Telecommunication networks
4).Metro
5).Local Area Networks (LANs)
6).Data processing networks
7).Test equipment
8).Premise installation
9).Wide Area Networks(WANs)
Specification
|
Singemode(UPC) |
Singemode(APC) |
Multimode |
Insertion loss |
≤ 0.2db |
≤ 0.2db |
≤ 0.25db |
Return loss |
≥55db |
≥65db |
≥30db |
Durability |
≤ 0.1db typical change, 1000 times mating |
Operating Temperature |
-45 to +85 degree |
Ferrule Hole Sizes |
125.0+1/-0um, Concertricity: ≤1.0um |
125.0+1/-0um, Concertricity: ≤0.5um |
125.0um, Concertricity: ≤3.0um |
125.3+1/-0um, Concertricity: ≤1.0um |
125.3+1/-0um, Concertricity: ≤0.5um |
127.0um, Concertricity: ≤3.0um |
125.5+1/-0um, Concertricity: ≤1.0um |
125.5+1/-0um, Concertricity: ≤0.5um |
128.0um, Concertricity: ≤3.0um |
126.0+1/-0um, Concertricity: ≤1.0um |
126.0+1/-0um, Concertricity: ≤0.5um |
|
Product list
Item | Connector Description | Item | Connector Description |
| | PC/UPC/APC | | PC/UPC/APC |
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC |
| FC | FC |
| LC | LC |
| MU | MU |
| MTRJ(female) | MTRJ(female) |
| MTRJ(male) | MTRJ(male) |
| DIN | E2000 |
| E2000 | |
