Sc/APC Duplex Waterproof Pigtail Optical Patch Cord

Name: Sc/APC Duplex Waterproof Pigtail Optical Patch Cord
Brand: all-electronics-online.com
SKU: 690300315
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	US $ 0.2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC/APC Pigtail
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute (E. G.: Size):	Value (E. G.: 12 Inches)
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	ISO9001

Product Description

Telephone: 0086-13065800671
Web: Www. Chinagyd. COM

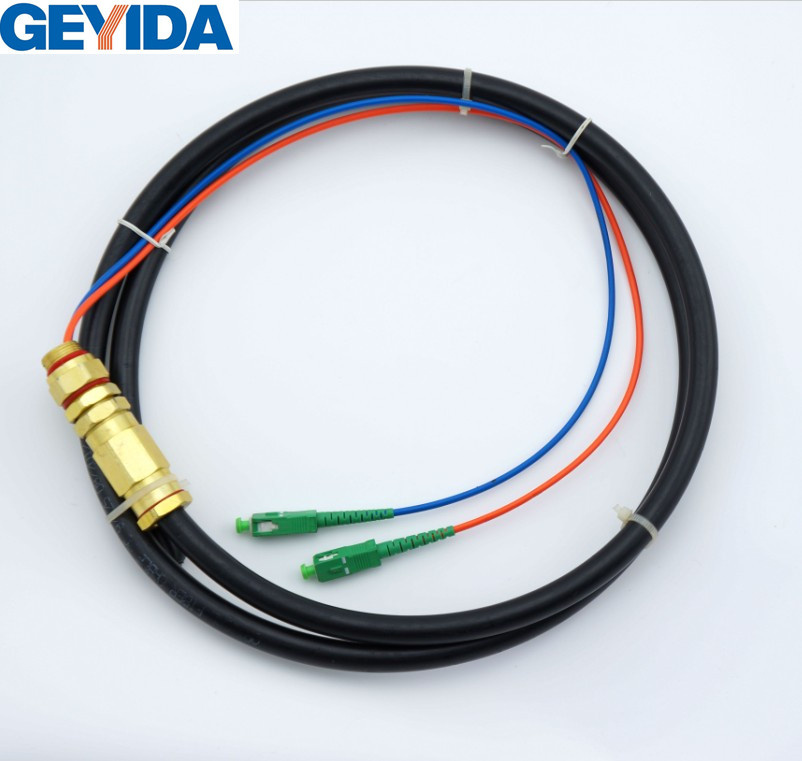

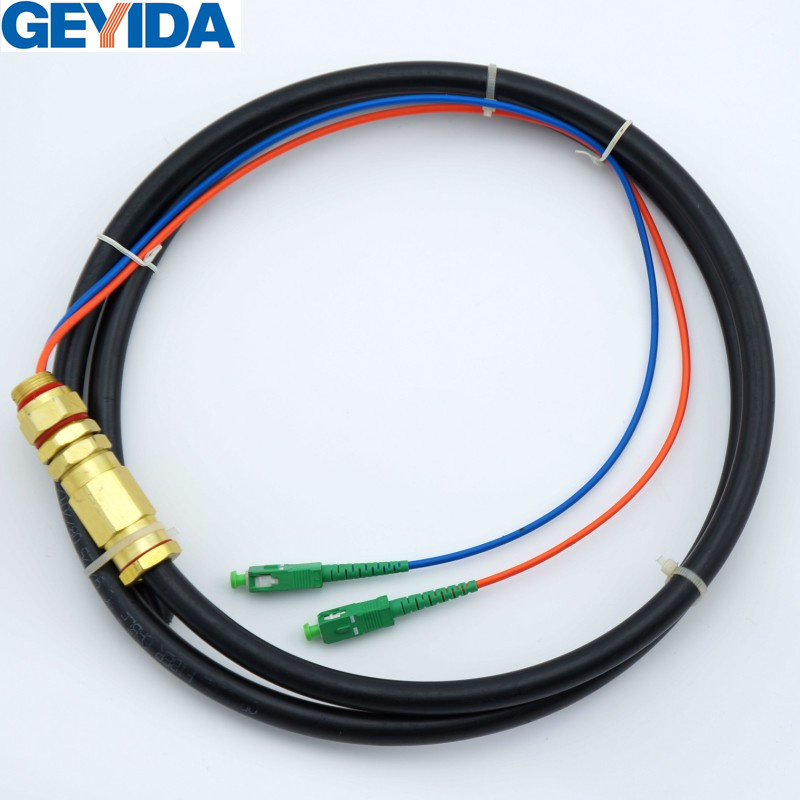

SC/APC Duplex Waterproof Pigtail Optical Patch Cord

Features:
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Insert-pull, key-oriented coupling mechanism which allows high repeatable, low-loss connection Simplex, Duplex and Multi-core accessories for standard or customized structure.
PC/UPC/APC Polish
Comply with Telcordia GR-326-CORE Specification
The material of plastic plug comply with the request of UL94V-O And Standard of RoHS

Parameter	Unit	SM PC	SM UPC	SM APC	MM PC	ST, MU SM PC
Insertion loss(typical)	db	≤ 0.3	≤ 0.2	≤ 0.3	≤ 0.2	≤ 0.3
Return loss	db	≥ 45	≥ 50	≥ 60	≥ 30	≥ 45
Operating wavelength	nm	1310, 1510	1310, 1510	1310, 1510	1310, 1510	1310, 1510
Exchangeability	db	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Vibration	db	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Operating temperature	° C	-40~75	-40~75	-40~75	-40~75	-40~75
Storage temperature	° C	-45~85	-45~85	-45~85	-45~85	-45~85
Cable diameter	mm	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9
