Sc/APC Fast Connector Field Installable Connector
| Price: |
US $ 1.5pcs |
| Min Order: |
1pcs |
| Pay Type: |
L/C,Western Union,Paypal |
| Optical Fiber Diameter: |
125u ( 652 & 657 ) |
| Tight Buffer Diameter: |
250 |
| Fiber Mode: |
Single Mode |
| Operation Time: |
About 60s(No Fiber Cut) |
| Insert Loss: |
0.3dB(1310nm-1625nm) |
| Return Loss: |
-45dB |
| Fastening Strength Of Naked Fiber: |
>5 N |
| Fastening Strength Of Naked Fiber Holder: |
>10 N |
| Tensile Strength: |
>50 N |
| Using Temperature: |
-40~+75c |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

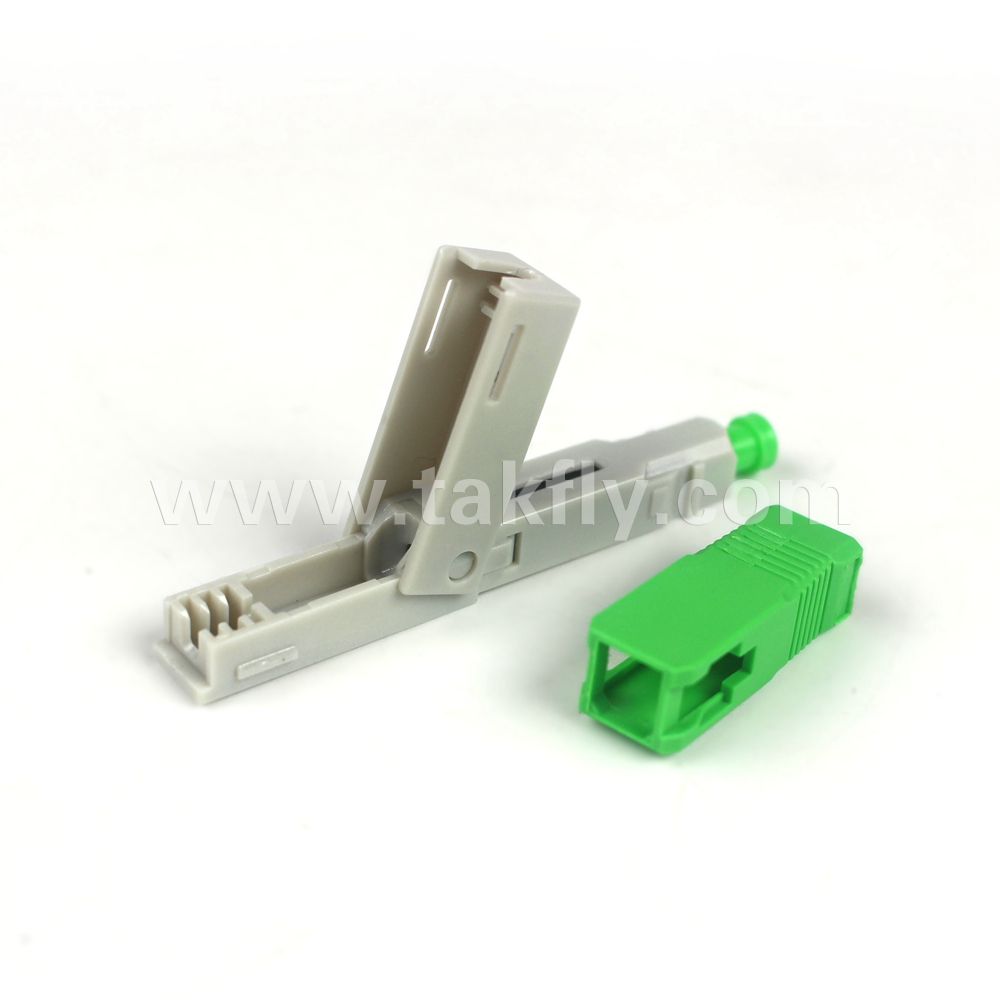

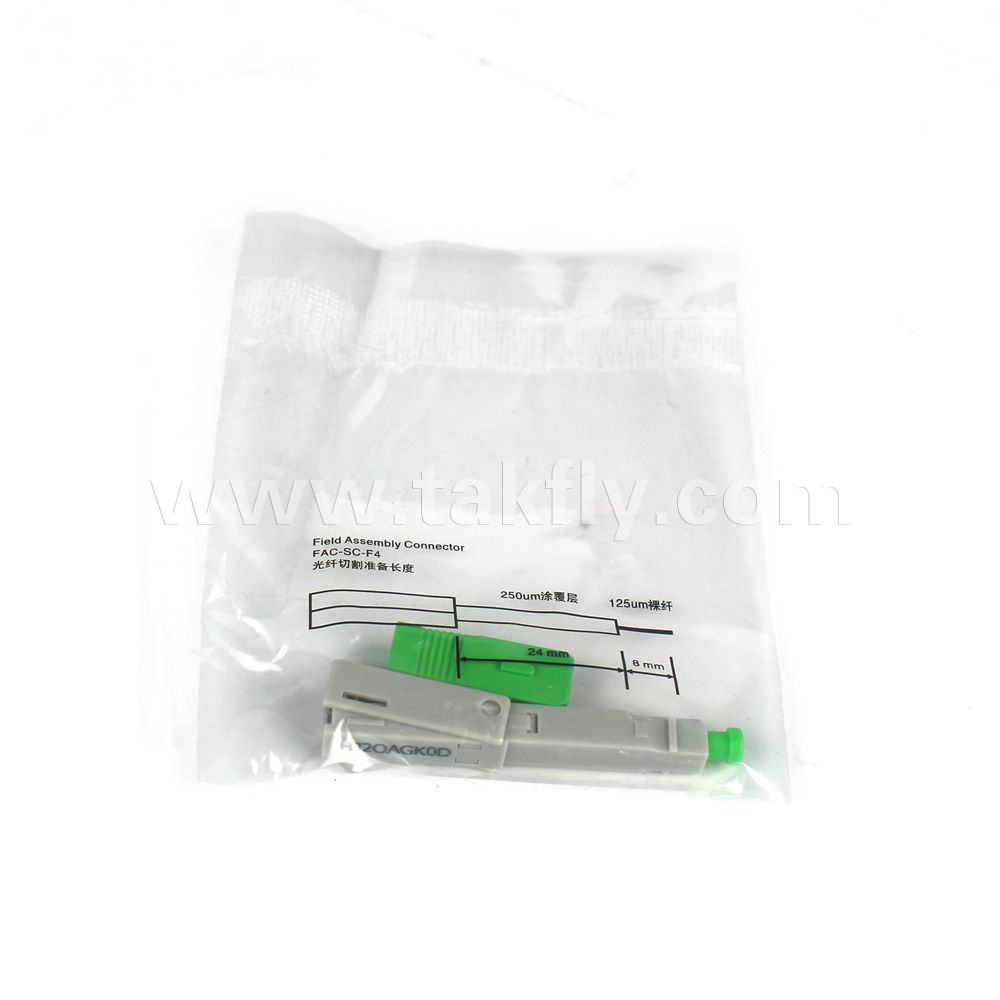

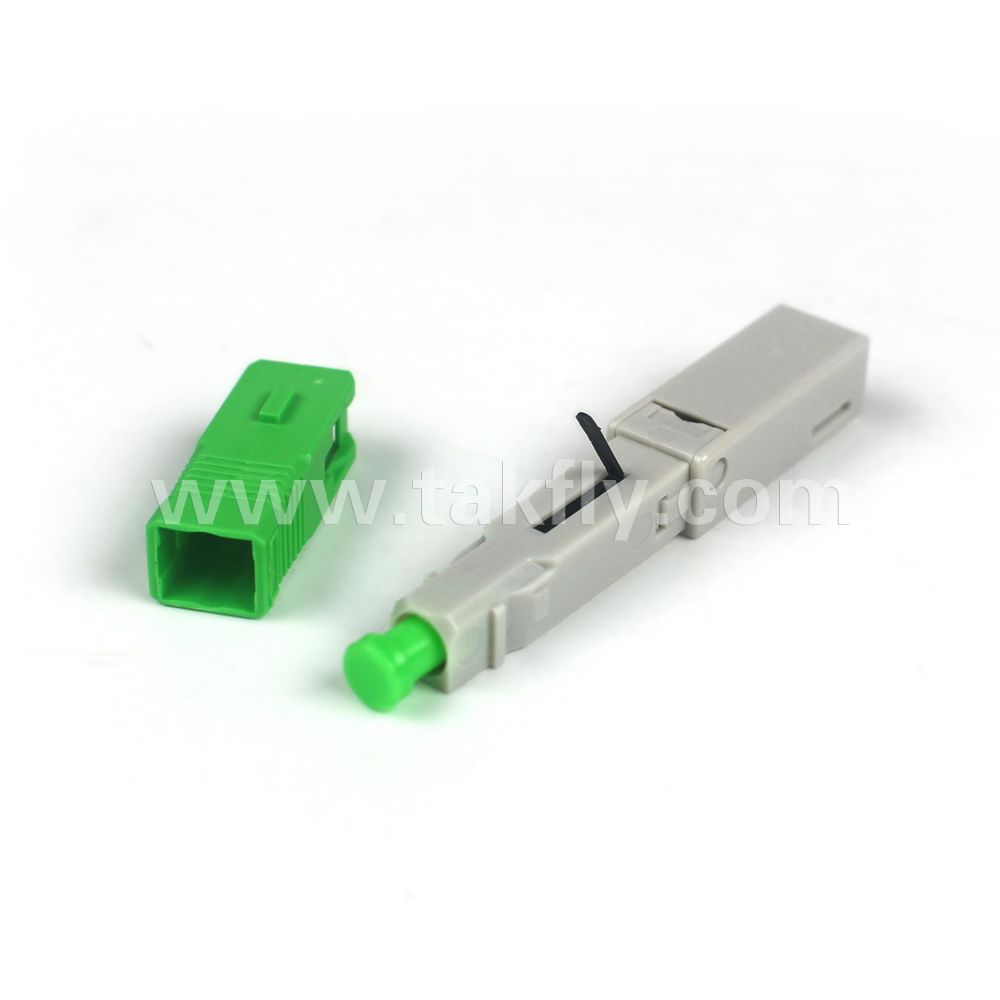

High quality FTTH Sc/APC Sc/Upc Fiber Optic Quick Field Assembly Fast Connector
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and
Precasttype of products, whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high
quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither
any consumables.Adapted fiber pre-installed structure, and convenient for field installation.
Application
· Connections at the desk for LAN environments
· Optical access network
· Fiber to the Subscriber (FTTX) applications
· Patch panels
· Direct equipment termination
Feature
· Factory-installed fiber stub
· No epoxy or polishing required
· Quick and easy fiber termination in the field
· Eliminates cable excess length and pigtail splice storage
· Cost effective Technical specification| Item | Parameter |
| Cable Scope | 2.0mm x 3.1mm Butterfly Type |
| Size | 51*9*7.55mm |
| Fiber Diameter | 125μm |
| Coating Diameter | 250μm |
| Mode | SM SC/APC SC/UPC |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.5dB(1310nm & 1550nm) |
| Return Loss | SC/APC≤ 55dB SC/UPC ≤ 50dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >50 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
Relevant Solutions
· Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of
network revolution. It also reduce the use of sockets and adapters, save cost of project.
· With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides
complete protection with its unique design.
· Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly
used in specific ONU.
