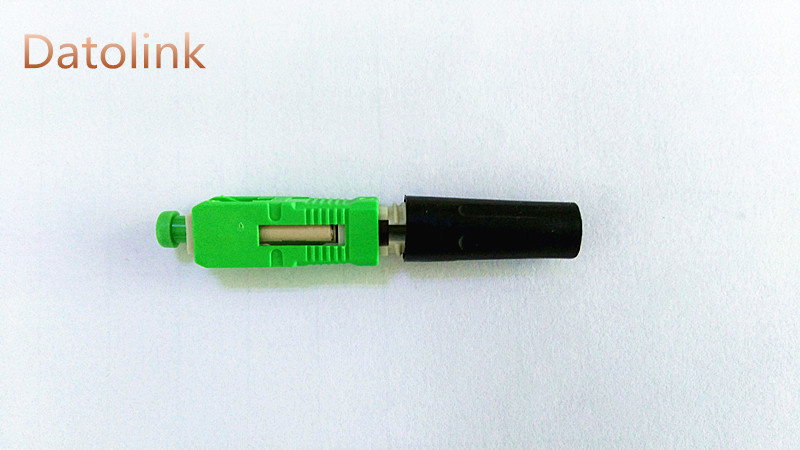

Sc/APC Fast Fiber Optic Connector

Sc/APC Fast Fiber Optic Connector
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SC/APC fast connector
Applicable For: 3.1 X 2.0 mm Butterfly Cable
Optical Fiber Diameter: 125um ( 657A , 657b )
Tight Buffer Diameter: 250um
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Single-Core
Ferrule Endface: APC
Brand: Datolink

Product Description

Application for: FTTX, Connecting up Renovation of Computer/controlling Room.

Technical Specifications:
ITEMTechnical Parameters
Applicable for3.1 x 2.0 mm butterfly cable
Optical fiber diameter125μm ( 657A & 657B )
Tight buffer diameter250μm
Fiber mode single-mode&
Operation timeAbout 15s ( no fiber cut )
Insert loss1310nm & 1550nm
Return loss≤ 40dB
The success rate>98%
The number of assembly>10
Fastening strength of naked fiber>5 N
Tensile strength>50 N
Using temperature-40~+85 degree
On-line tensile strength (30 N)IL ≤ 0.3dB
Mechanical durability (500 times)IL ≤ 0.3dB
Drop-off testIL ≤ 0.3dB
