SC/APC Fast Quick Connector

Name: SC/APC Fast Quick Connector
Brand: all-electronics-online.com
SKU: 713380452
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 1.58-1.6/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fast Quick Connector
Type:	Embedded and Straight-Through
Cable Jacket Color:	Yellow,Blue,Green,Aqua,Red,Magenta,Beige
Cable Outer Diameter:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Polishing:	PC,Upc,APC
Fiber Type:	OS1,OS2,Om1,Om2,Om3,Om4
Cable Jacket Material:	PVC,LSZH,Ofnp,PE
Connector Color:	Green, Blue or Beige
Return Loss:	PC>30dB; APC> 50dB
Insertion Loss:	<0.3 dB
Connector:	Sc,LC, St,FC Optional
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Light Source TYPE:	Sc Fiber Fast Connector
Connector Type:	Sc
Brand:	Takfly

Product Description

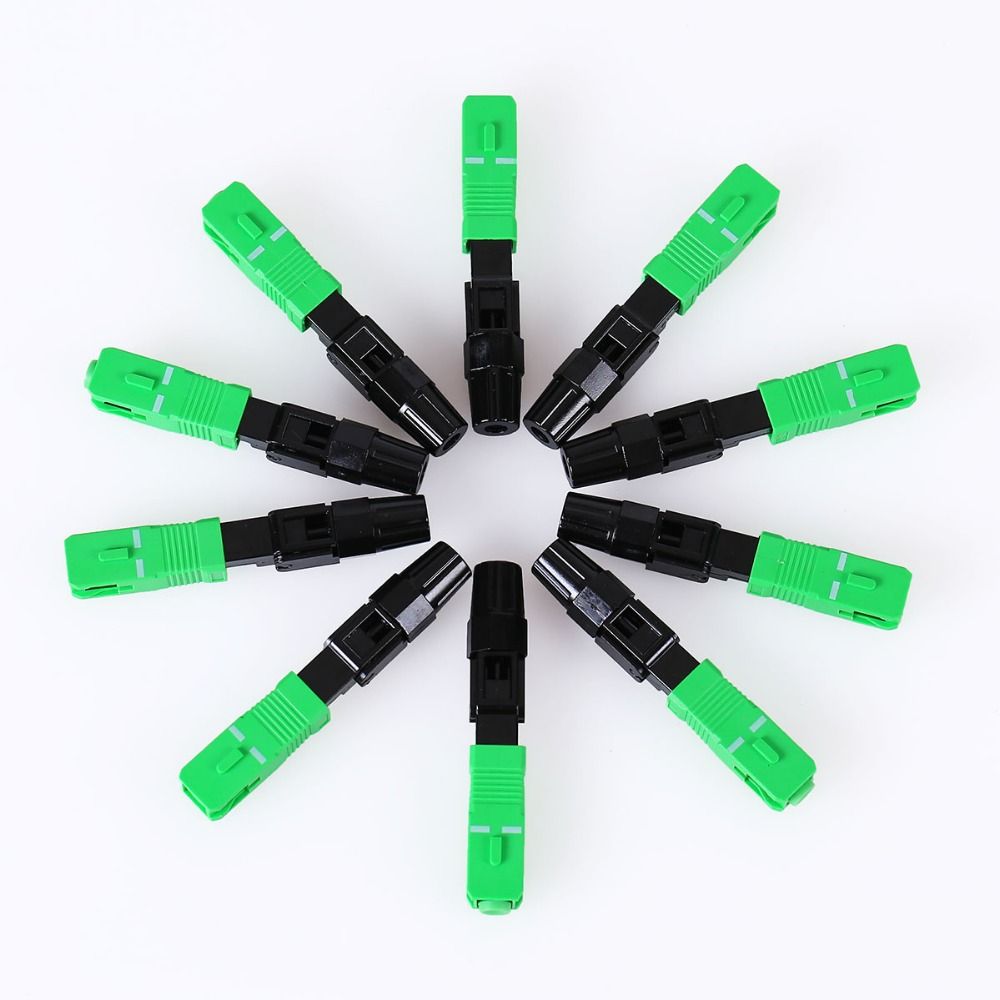

SC/APC Fast Quick Connector

Specifications
1.Easy to assemble
2.Without further processing
3.Excellent stability
4.100% qualified
5.Applicable for 3.1 x 2.0mm drop cable or 3.0/2.0/0.9mm cable

Parameter
1.Optical fiber diameter: φ 125um (657A and 657B)
2.Tight buffer diameter: φ 250um
3.Fiber mode: Single mode
4.Operation time: About 10s (exclude fiber cut)
5.Insert loss: ≤ 0.3dB (1, 310 and 1, 550nm)
6.Return loss: ≤ -40dB
7.Fastening strength of naked fiber: >5N
8.Tight clamping force cladding: >8N
9.Tensile strength: >50N
10.Used temperature: -45° To +80° C

Features
1.Easy assembly, no need special assembling tool
2.Without further processing, such as polishing
3.Excellent stability with low insertion loss, 100% qualified
4.Can reduce the defect rate because of being able to reconnect

Parameter	Unit	LC, SC, FC, ST, SC-ST, FC-ST, FC-SC, FC-LC				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	PC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥30	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	°C	-40~75				-40~75			-40~75
Storage Temperature	°C	-45~85				-45~85			-45~85
