Sc/APC Fiber Optic Fast Connector

Sc/APC Fiber Optic Fast Connector
Price: US $ 1.6/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: TK-H0101
Warranty: 5 Years
Delivery Time: 3-5 Days
Color: Blue/ Green or Customied
Sample: Available
Insertion Loss: <0.5dB
Return Loss: >45dB
Fiber Diameter: 125μm
Fiber Mode: Singlemode or Multimode
Working Temperture: -40 --+70 Degree
Normal Life: 30 Years
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Single-Core
Ferrule Endface: APC

Product Description

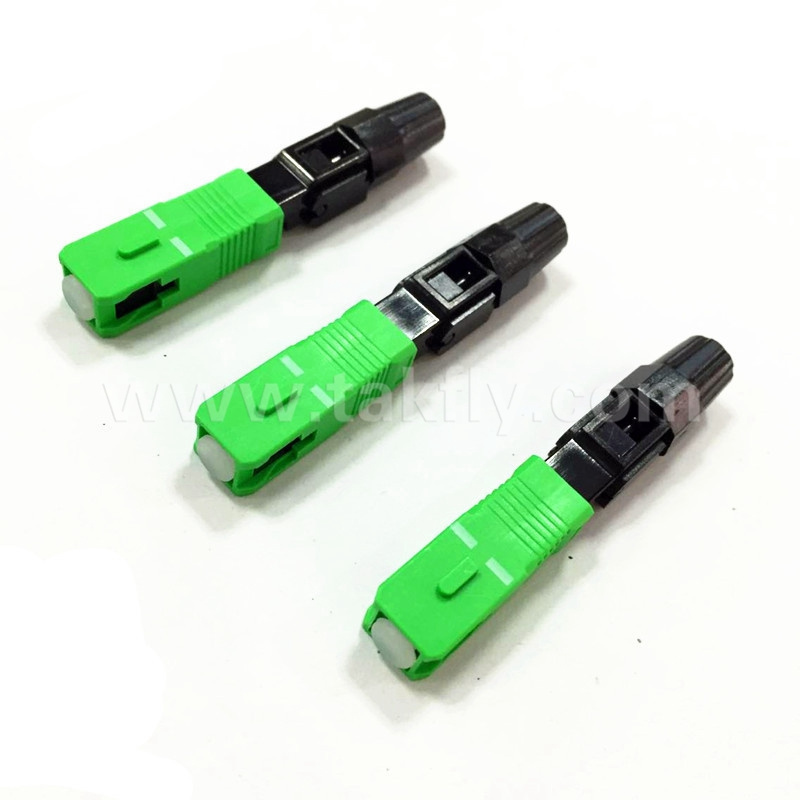

Fiber Optic SC Fast Connector APC /UPC


Applications:

1. FTTH
2. WAN
3. LAN
4. Telecommunication
5. CATV
6. Optical Distribution Frame




Specification:

SeriesSC/APC SC/UPC
Applicable CableP3 X 2 Rubber-insulated wireΦ3.0  Fiber
Fiber Diameter125μm125μm
Coating Diameter250μm250μm
Fiber ModeSM OR MMSM OR MM
Installation Time≤40S≤40S
Construction Site Installation Rate≥99%≥99%
Insertion Loss≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm)≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm)
Return Loss45dB(average 50dB)45dB(average 50dB)
Tensile Strength>30>20
Working Temperature

-40°C~+70 °C



-40°C~+70 °C

Reusability

≥50≥50
Normal Life

30 years30 years



Takfly Certification:





Takfly Worldwide Exhibition:






Thank you for refer our products, should you have any question please feel free to contact me.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
