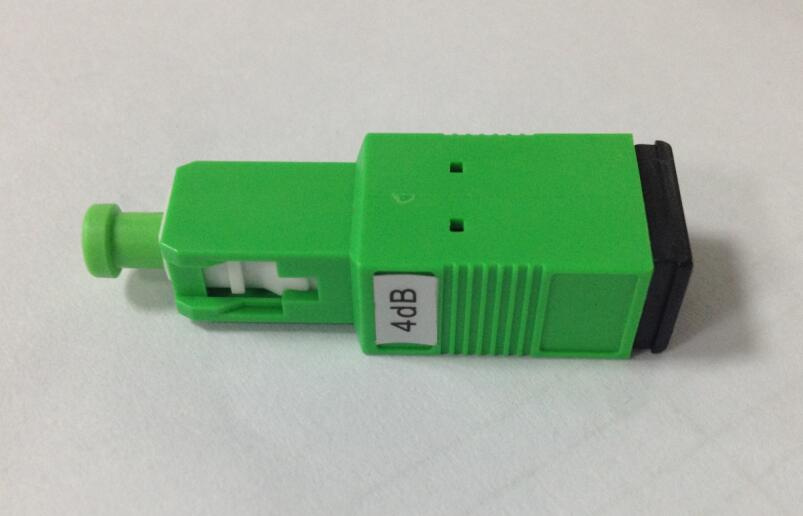

Sc/APC Plug-in Type Plastic Housing Fiber Optic Attenuator

Name: Sc/APC Plug-in Type Plastic Housing Fiber Optic Attenuator
Brand: all-electronics-online.com
SKU: 791907595
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 2.5-2.6/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC/APC
Attenuation:	0~35dB
Houing Material:	Metal and Plastic
Attenuation Accuracy:	+/-0.5 to +/-1.0
Dust Cap Color:	White, Blue, Green
Wavelength:	1310nm;1550nm
Mode:	Female-Male; Female-Femal; Adapter
Bandwidth:	1250~1650nm
Packaging:	Bag
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Koc

Product Description

Product Description

Brief Introduction
Plug-in type fixed attenuator is attached to a connector at one end and connects an adapter at the other end lts attenuation is fixed, unadjustable.
This fixed attenuator is mainly used to reduce optical power to target value in optical links lt comes in different types including SC,LC,FC,ST and MU Based on the shape of ferrule shape it can also be classified as PC and APC with 8 degrees type The products attenuation is in range of 0 to 30dB,which are all applicable for optical signal with wavelength ranging from 1,250nm to1,600nm.

APPLICATIONS
Telecommunication Networks
Data Networks
Video & CATV

FEATURES
Bellcore Compliant
Durability (well over 100mw)
Wavelength Independent (DWDM)
Simple and Reliable Structure

SPECIFICATIONS

Operating Wavelength:	SM: 1200-1600nm or 1310nm, 1550nm
Operating Wavelength:	MM: 850nm, 1300nm
Return Loss:	≥50 dB (SPC)
	≥55 dB (UPC)
	≥65 dB (APC)
Attenuation Accuracy:	+/-0.5 (1-5) dB
Attenuation Accuracy:	+/-10% (6-30) dB
Polarization Dependent Loss:	<=0.2dB
Maximum Optical Input Power:	200mW
Operating Temp. Range:	-40 ~ 80°C

ORDERING OPTIONS

Connector Type	Application	Wavelength	Attenuation Level
SC	UPC	1310nm	1,2,3,25dB
FC	APC	1550nm
ST		1310/1550nm
LC
MU

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
