Takfly Communications Co., Ltd. >> Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cord/Cables

Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cord/Cables

Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cord/Cables
Price: US $ 2.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: TK-SCAPC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Patch Leads
General Names: Fiber Optic Patch Leads
Byname: Fiber Optic Jumpers
Fiber Mode: Single Mode
Cable Diameter: 0.9mm,2.0mm,3.0mm
Operation Wavelenghth(Nm): 1310/1550nm
Export Markets: Global
Cable Length: 1m.3m.5m or Customized
Operating Temperature: -40c~+80c
Application: FTTH, FTTB, LAN, CATV
Type: Single-mode Fiber
Connection Structure: SC-SC
Certification: CCC
Core: Simplex Duplex Quard
Brand: Takfly
Sheath Material: PVC, LSZH

Product Description

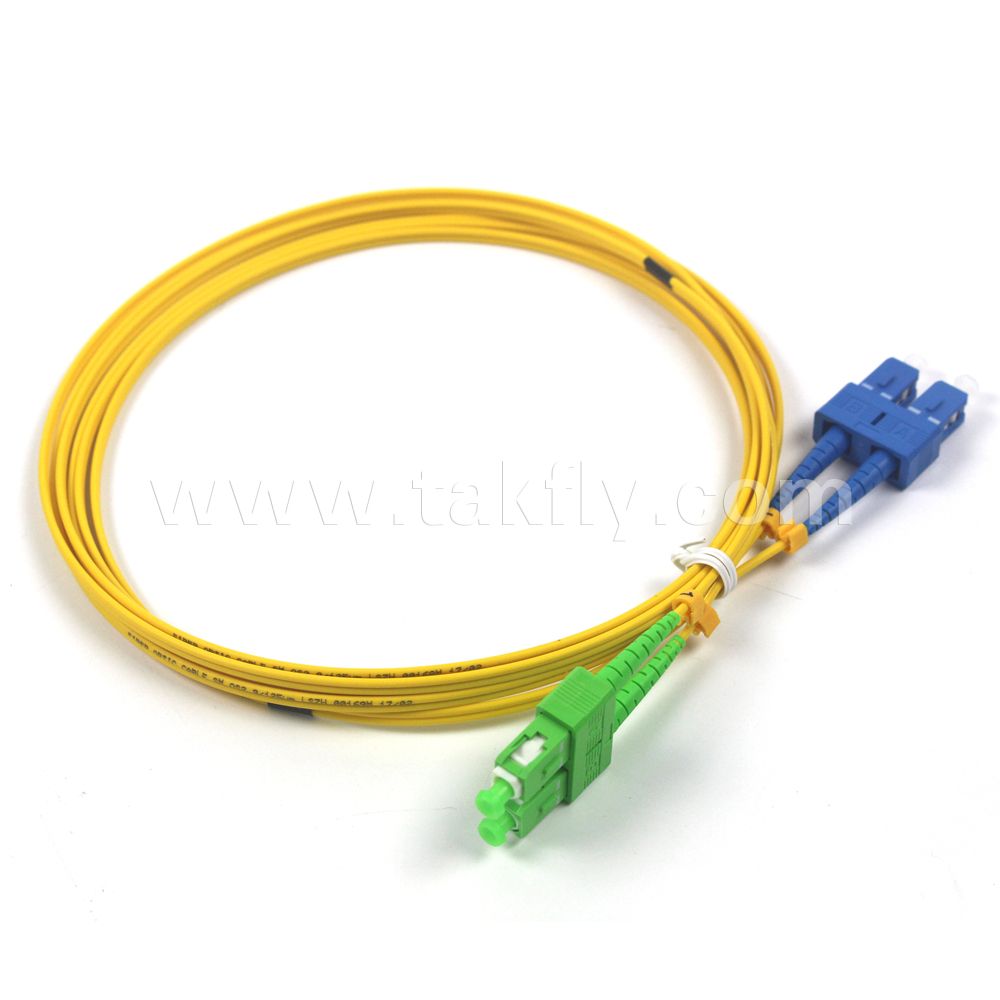

Sc/APC-Sc/UPC Single Mode Duplex Fiber Optic Patch Cord/Cables

Sc/APC  fiber patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
fiber optic cables compliant to ISO/IEC 11801 standards.

Features:
Low insertion loss and high return loss
Good exchangeability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO… optional
Polishing: PC, UPC and APC
Meets IEC standard


Applications:
Telecommunication networks
Fiber optic communication networks
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Optical access network
arameter

Unit

Standard & Requirement

Insertion loss

dB

≤0.20

Changeability

dB

≤ 0.20dB

Radius of curvature

nm

10 ≤ r ≥25

Curvature eccentricity

um

<50

Fiber core undercut

nm

<50

Insertion loss change

dB

< 0.1

Return loss change

dB

< 5

Insert & pull out (Max.)

kg

2

Insert and pull frequency

Time

> 1000

Operating temperature

c


-40 ~ +85

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
