Sc APC Simplex Fiber Optical Metal Adapter

Name: Sc APC Simplex Fiber Optical Metal Adapter
Brand: all-electronics-online.com
SKU: 692050692
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,DAP,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK-1A007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	3-5 Days
Warranty:	5 Years
Sample:	Available
Insertion Loss:	Less Than 0.2dB
Return Loss:	More Than 45dB
Operation Temperture:	-40- +85degree
Color:	Customized
Fiber Type:	Sc
Core Number:	Customized
Fiber Mode:	Singlemode or Multimode
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

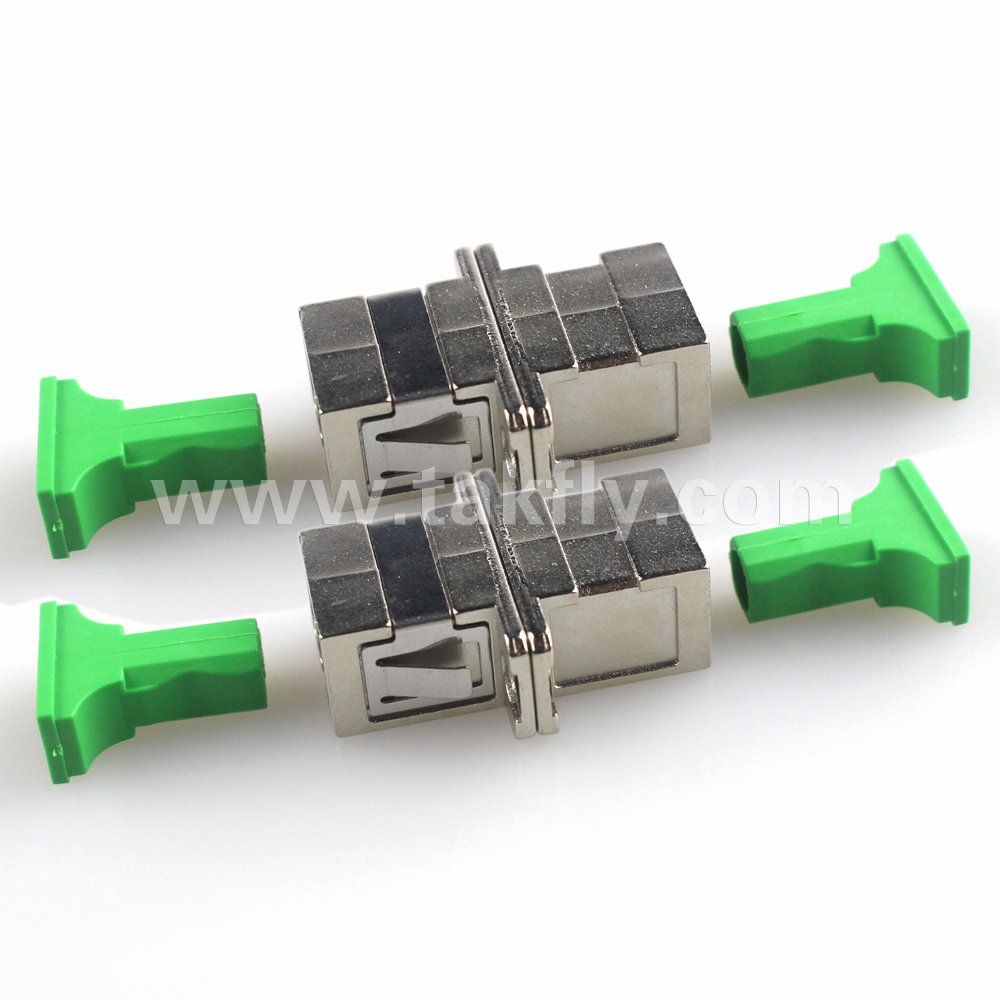

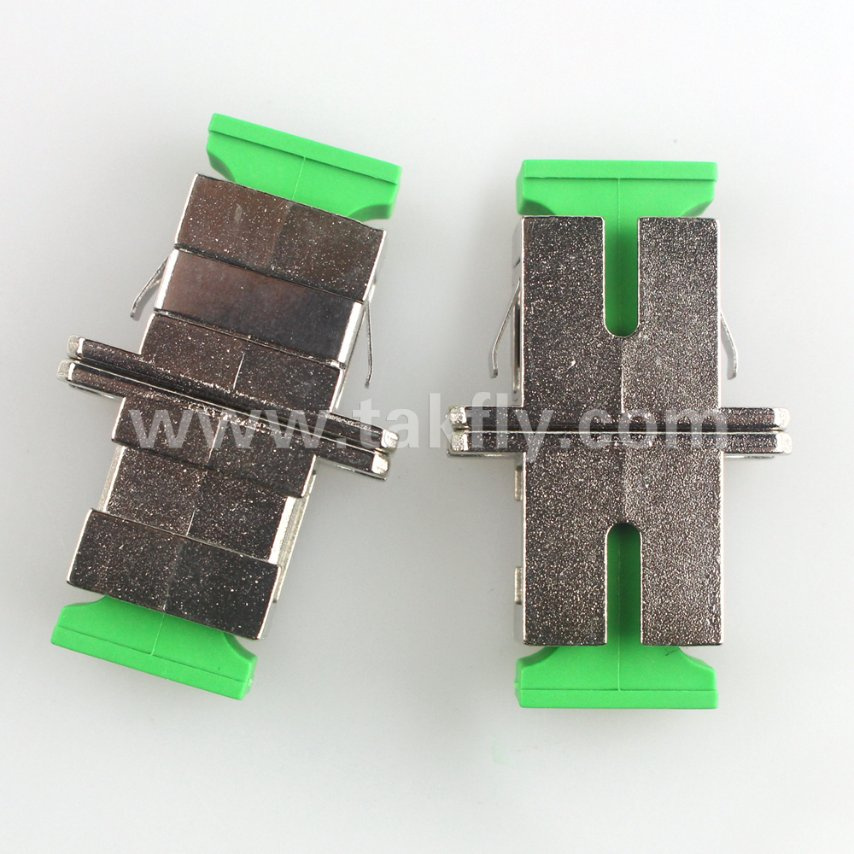

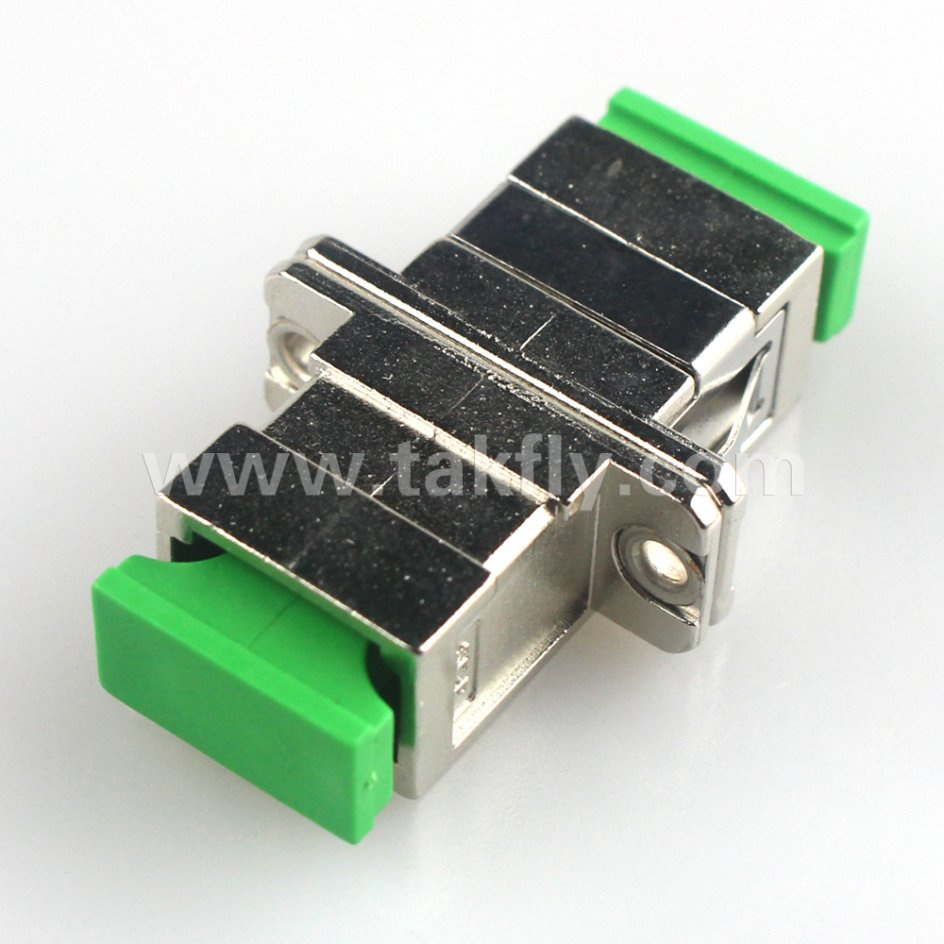

SC APC Simplex Fiber Optical Metal Adapter

Description:

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
SC fiber optic adapters are flange type, single mode adapters are with zirconia sleeve while multimode fiber adapters are with bronze sleeve.

Features:

1. Single mode and Multimode
2. Zirconia sleeves or Phosphor bronze sleeves
3. NTT standard compatible
4. Available without flanges or with flange for duplex, saving panel space
5. SC2 8Port high density for patch panel mount applications
6. Meet JIS5974 and bellcore GR-326 standard
7. Compliant with IEC874-14 & IEC874-19
8. All parts compliant with ROHS

Parameter:

Product	SC Adapter
Mode	S.M(Zroz)	M.M(P.B)
Insertion Loss	≤0.2dB	≤0.3dB
Return Loss	≥45dB	--
Mating Durability(500 timer)	Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)	Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature	-40ºC~+85ºC
Storage Temperature	-40ºC~+85ºC

Order Information:

CODE	SLEEVE	TYPE	HOUSING	FIGURE
H22	1. Zirconia 2. P.B	1. Simplex 2. Duplex	1.SM Blue 2.MM Beige 3.APC Green 4.SM Metal	1. With Flange 2. Without Flange 3. Customized Designs

Thank you for refer our products, should any question please feel free to contact me.
