Sc APC Upc Single Mode Duplex Fiber Optic Patch Cord

Name: Sc APC Upc Single Mode Duplex Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 783261165
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	US $ 1.08/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK-000902
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Type:	Sc/APC
Color Customization:	Available
Delivery Time:	Within 1 to 3 Days
Free Sample:	Available
Cable Diameter:	0.9mm 2.0mm 3.0mm
Cable Length:	1m,3m,5m or Customized
Warranty:	5 Years
Sample:	Available
Insertion Loss:	Less Than 1dB
Return Loss:	More Than 55dB
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Sheath Material:	PVC/LSZH

Product Description

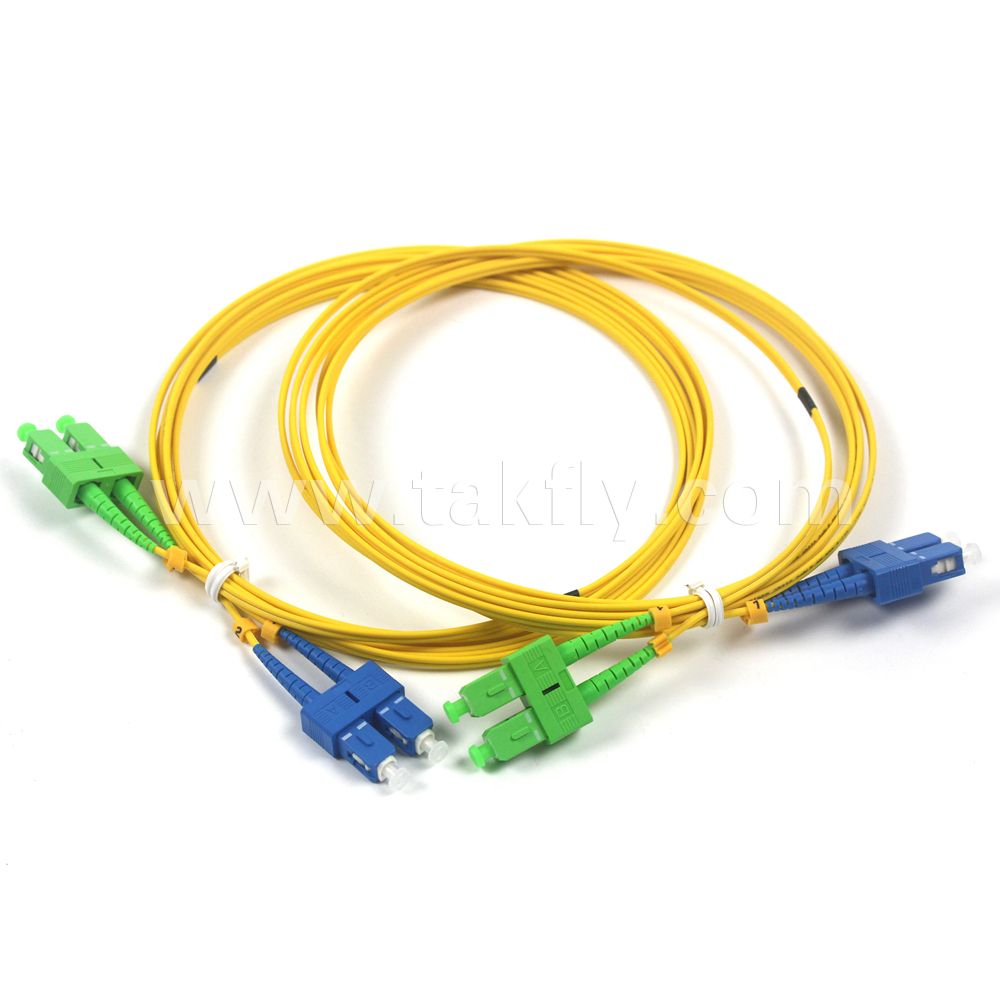

SC APC Connector Single Mode Fiber Optic Patch Cord

Feature:

Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

Availability:

-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
-UPC, PC and APC are available

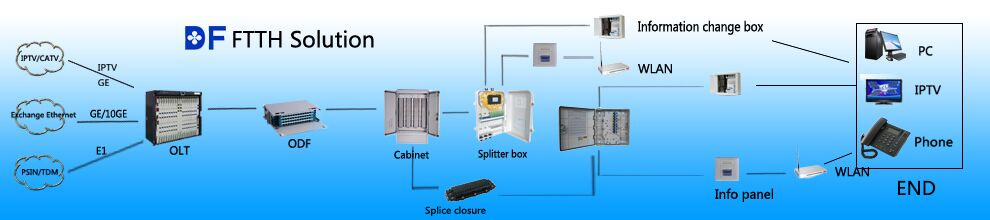

Application:

1. CATV, metro test equipment; FTTH;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;
7. Video and military active device termination.
8. Optical Distribution Frame
9. Optical Network Equipments

Parameter:

Item	Single mode	Multi mode
Insertion loss	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	<0.3dB
Return loss	PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB	>25dB
Insert-pull test	1000(times) <0.2dB
Operating temperature	-40°C~ +80°C
Ceramic ferrule spec	125.5um concentricity deviations: <1um	127um concentricity deviations: <3um
Suitable fiber	UPC,PC/APC(9/125um)	PC(50/125um, 62.5/125um)

Order Information:

CODE	CONNECTOR	CABLE SIZE	FIBER TYPE	CABLE TYPE	FIGURE
H02	1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex	1. 0.9 2. 2.0 3. 3.0	1.9/125 2.OM3 3.50/125 4.62.5/125	1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH	1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black

Takfly Worldwide Exhibition:

Takfly Certification:

Thanks for refer our products, should any question please feel free to contact us!
Takfly looking forward to hearing from you!!

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
