| Prod Model: |
Fiber Optic Adapter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Fiber Optic Attenuator/Adapter |
| Connector: |
Sc,FC,St,LC,E2000,DIN,D4,MPO etc |
| Sleeve: |
Ceramic, Bronze |
| Fiber Count: |
Duplex / Simplex |
| Insertion Loss: |
Less Than 0.2dB |
| Return Loss: |
More Than 45dB |
| MOQ: |
1 Piece |
| Brand New : |
Yes |
| Delivery Time: |
Within 3 Days |
| Certificate: |
Ce, RoHS |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

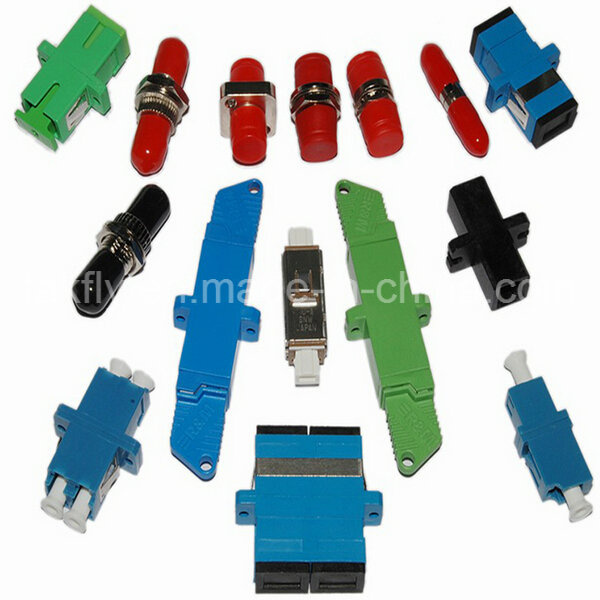

SC/FC/ST/LC Simplex/Duplex Fiber Optic Attenuator/Adapter
Fiber Optic Adapter / Adaptor is a fiber optic connector on the activities of linking components. The complete series of products, including FC, SC, ST, LC, MTRJ, widely used in optical distribution frames (ODF), and optical fiber communications equipment, instrumentation, performance is stable and reliable.
Features:
1. Precise size
2. Excellent repeatability
3. Ceramic caps can provide low-loss and the stability of specifications
4. Caps diameter (mm): 0.125 ~ 0.127 (0.140mm is available)
5. Caps diameter (mm): 2.499 ± 0.0005 for SM (± 0.001 for MM)
6. Sheath diameter (mm): 0.9, 2.0, 2.4, 3.0
7. Insertion loss: 0.3 dB for SM ≤ , ≤ 0.5 dB for MM, ≤ 0.4 dB for SM / APC
8. Reflection attenuation: ≥ 45 dB for PC, and ≥ 50 dB for UPC, ≥ 65 dB for APC
9. Environmental requirements: Ambient temperature: -40 ° C to 85 ° C Storage temperature: -45 ° C ~ +95 ° C
Application:
1. Optical fiber communication network
2. Fiber Broadband Access Network
3. CATV fiber
4. FTTP
5. LAN & WAN
Parameter:
| ype | FC/PC | FC/APC | SC/PC | SC/APC | ST/PC |
| Insertion loss | ≤0.20 |
| (dB) |
| Repeatability | ≤0.10 |
| (dB) |
| Interchangeability | ≤0.20 |
| (dB) |
| Telescopic materials | Ceramic |
| Temperature | -40 _ +80 |
| (°C) |
| Storage temperature | -40 _ +85 |
| (°C) |
