Sc Fiber Optic Connectors

Prod Model:	sc
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Light Source TYPE:	Optical Fiber

Product Description

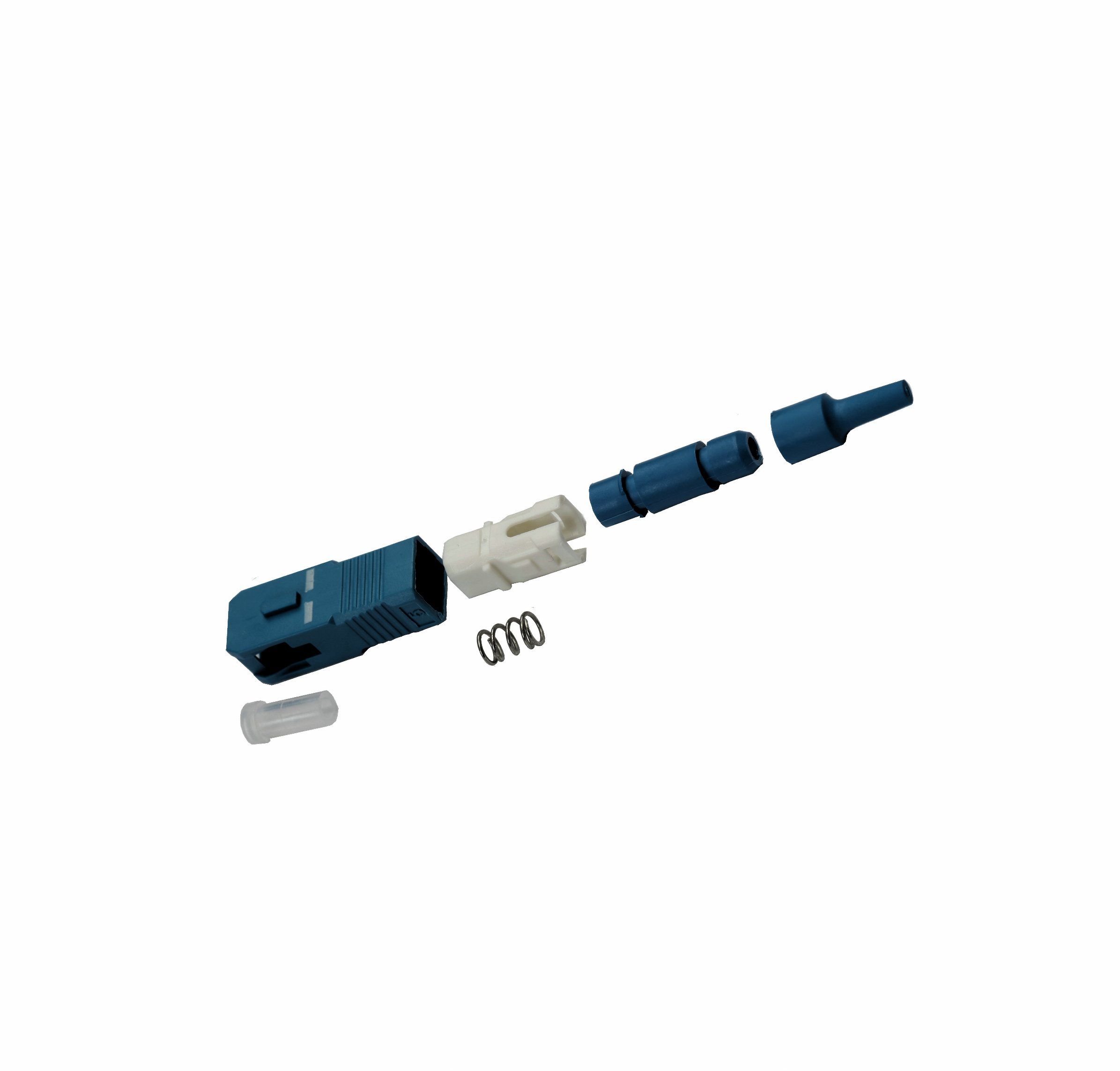

SC Connector, For 0.9mm Fiber, multimode/single mode

Product Description:

BRIEF INTRODUCTION
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on.

Note: Ferrule with/without flange is available

SPECIFICATIONS

ITEM	PARAMETER
Applicative Connector Type	SC,LC,FC,ST,MU,
Fiber mode	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.15dB,Max≤0.25dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Durability	≤0.20dB typical change,1000 mating
Applicative cable OD.	∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm  (MU only ∮0.9mm/∮2.0mm)
Connector Ferrule OD.	∮2.5mm:SC, FC,ST,
Angle BOOT	SC,LC(45 or 90 degree)
Operating Temperature	-20ºC to +70ºC
Storage Temperature	- 40ºC to +85ºC
Ferrule Specification	125.3+1/-0μm, Concentricity: ≤1.0μm	127+3/-0μm, Concentricity: ≤3.0μm
