Sc Fiber Optic Coupler Sc/APC Optical Fiber Adapter

Sc Fiber Optic Coupler Sc/APC Optical Fiber Adapter
Price: US $ 0.13/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SC/apc optical fiber adapter
Product Name: Sc Adapter
Insertion Loss: 0.2dB
Cores: Duplex
Durability: >1000
Repeatability: 0.2
Operating Temperature: -40~75
Storage Temperature: -45~85
Color: Blue,Beige,Aqua,Customized
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Single-Core
Ferrule Endface: APC

Product Description

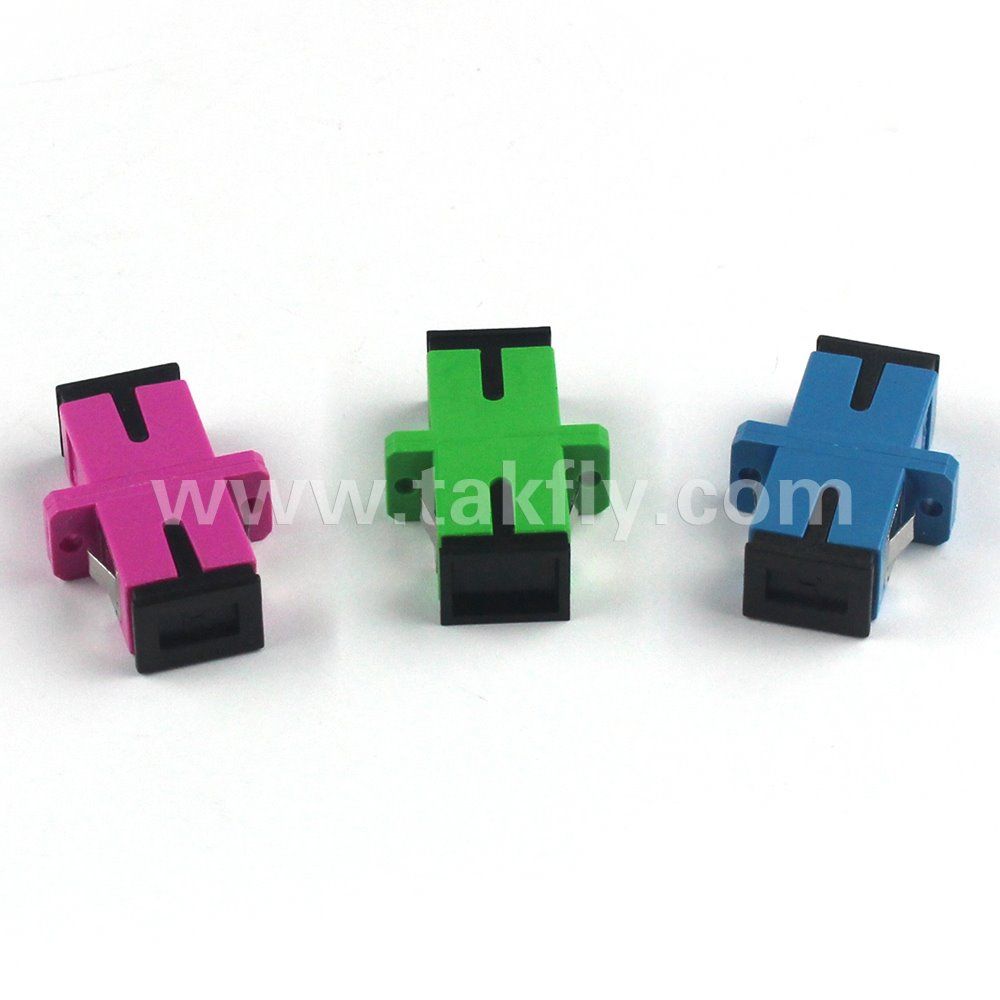

SC fiber optic coupler, SC/apc optical fiber adapter

1. Details:
An sc adapter is a mechanical device designed to align SC  fiber-optic connectors. It contains the interconnect sleeve,
that holds the two ferrules together.

2. Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex

3. Application:

Local Area Network
CATV System
Telecommunication Networks
Equipment Test

Metal housingPlastic housingZirconia sleeve
PB sleeveSimplexDuplex
QuadplexSC/PCSC/APC

SPECIFICATIONS
Insertion Loss<0.20dB
Durability<0.20 dB typical change, 1000 matings
Operating Temperature-40 to + 85°C

ORDERING OPTIONS
Housing ColorHousing MaterialSleeve MaterialChannelApplicationFlange
BeigePlasticZirconiaSimplexSC/PCWith
BlueMetalPBDuplex QuadplexSC/APCWithout

Shutterwith shutter
without shutter
