Sc Fiber Optic Jumper for Ftta with Waterproof Odva Socket

Name: Sc Fiber Optic Jumper for Ftta with Waterproof Odva Socket
Brand: all-electronics-online.com
SKU: 691336201
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	US $ 2-50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-ODVA-SPSAS1
Color Of Jacket:	Black or Customized
Length:	Customized
End Polishing:	PC, Upc
Cable Diameter:	7.0mm
Cable Length:	Customized
Jacket Material:	TPU or Customized
Fiber Type:	G652 or Customized
Waterproof Plug:	Odva
Use In:	Ftta, Far Transmission, Base Station
Protection Grade:	IP65
Application:	Probe
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Odva-SC/PC
Sheath Material:	TPU

Product Description

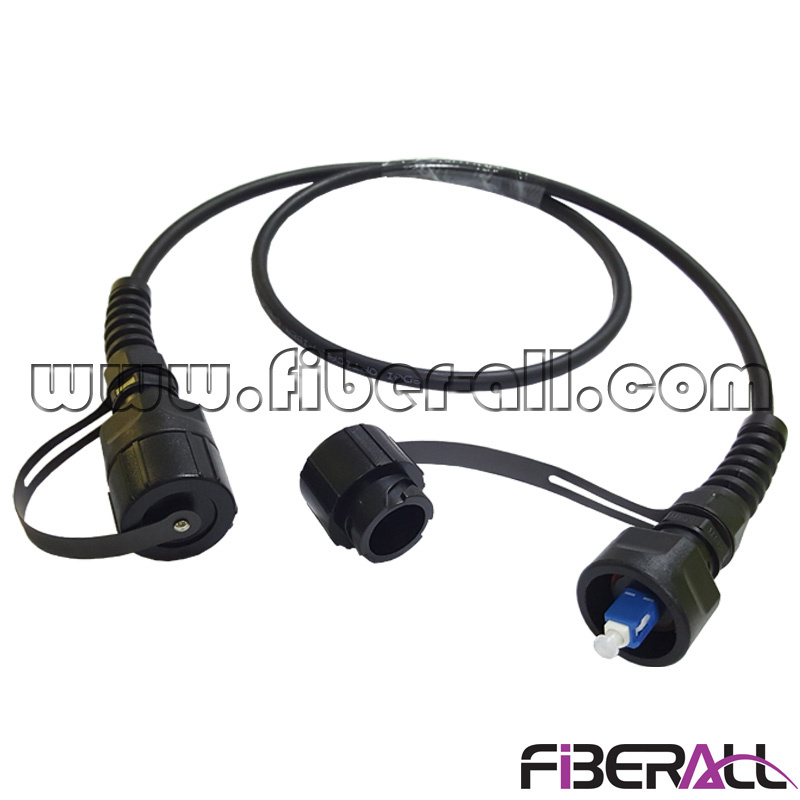

FA-ODVA-SPSAS1, SC Fiber Optic Jumper For FTTA With Waterproof ODVA Socket

Product Features Of ODVA-SC/APC Fiber Patch Cord

1, Standard SC connector, well connected with standard SC adaptor ( Fiberall also provide SC adapter with ODVA waterproof plug);
2, Both Single mode and Multimode fibers are available (OS1, OS2, OM1, OM2 and OM3);
3, Protection grade reach IP67 and salt-mist proof, humidity proof, dust proof;
4, Plastic housing, compact and simple design with light weight and easy for operation;
5, With excellent heating property and suitable for broad temperature range;
6, ODVA-SC adapter to matching two ODVA-SC connectors is also available.

Product Parameters Of ODVA Fiber Patch Cord

Product number	FA-ODVA-SPSAS1
Product description	Waterproof fiber patch cord composed with far transmission cable, TPU jacket, SC Simplex connector and ODVA waterproof plug
Waterproof plug	Full plastic ODVA
Connector type	SC/PC and SC/APC
Fiber type	G652 or customized
Cable type	Far transmission optical fiber cable
Waterproof grade	IP67
Matching way of waterproof plug	Screwed
Insertion loss (IL)	≤0.2db
Return Loss (RL)	SM/APC≥65db
Repeatability	1000 matings

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
