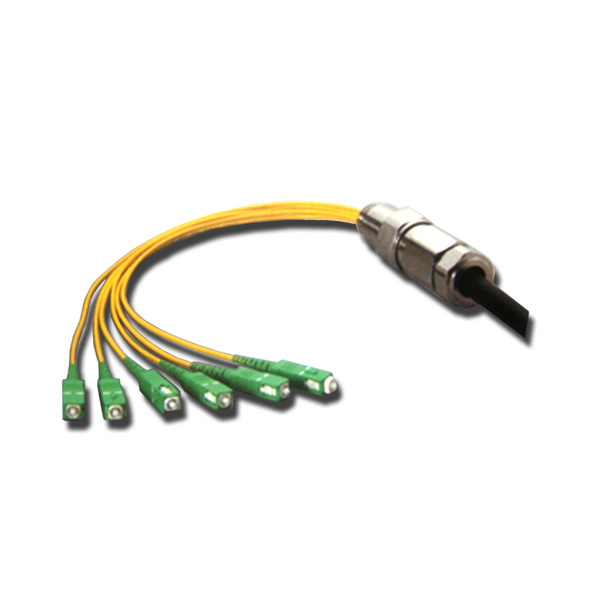

Sc Fiber Optic Waterproof Pigtail

Name: Sc Fiber Optic Waterproof Pigtail
Brand: all-electronics-online.com
SKU: 757628425
Availability: InStock
Rating: 4.7 (29 reviews)

Price:	US $ 8.8-100/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Boot Type:	Smooth, Slotted
Boot Color:	Blue, Green, Beige,Aqua, Black, White, Red
Stopper Type:	Adjustable, Not Adjustable
Cable Diameter Szie:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Boot Size:	0.9mm,2.0mm,3.0mm
Type:	Single-mode Fiber
Application:	Communication
Certification:	SGS
Connection Structure:	FC-FC

Product Description

Waterproof Pigtail

BRIEF INTRODUCTION
The optical cable is waterproof and the cable one side assembly a durable waterproof connector and some optical fiber connector. The waterproof pigtail is widely used in optical fiber communication system for connected to the backbone of network and optical receiver. The ARK Company uses high quality optical fiber connector and waterproof cable, excellence mechanical strength and corrosion-resistant waterproof connector assembly, which made the product have some prominent features, e.g.: environmental adaptability, easy installation, high reliability, tensile strength, long life, can against wild harsh environment and so on. The ARK can equipped with different connectors(FC,SC,ST,LC,MU,SMA) according to customer requirements.
FEATURES
Low insertion loss and high return loss
Good exchangeability and durability
Good waterproof performance
Automatic locking device
No glue process

APPLICATIONS
Active device termination
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN

SPECIFICATIONS

ITEM	PARAMETER
Applicative connector type	SC,LC,FC,ST,MU,D4,DIN
Fiber mode	Single mode	Multi-mode
Operating wavelength	1250~1650nm	850nm, 1300nm
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.15dB,Max≤0.25dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,1000 mating
Tensile Strength	≥120N(without 0.9mm patchcord) or customized
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

ORDERING OPTIONS

Fiber Type	Cable Type	Connector Color	Boot Size	Boot Color	Polishing Type	Length
SM: 9/125μm	Duplex	beige	0.9mm	Beige	UPC	Customized
MM: 50/125μm	4 fiber	blue	1.8mm	Blue	APC
MM: 62.5/125μm	6 fiber	green	2.0mm	Green
MM: OM3/150		aqua	2.4mm	Yellow
MM: OM3/300		black	3.0mm	Red
MM: OM3/550		red		Black
		metal		White
