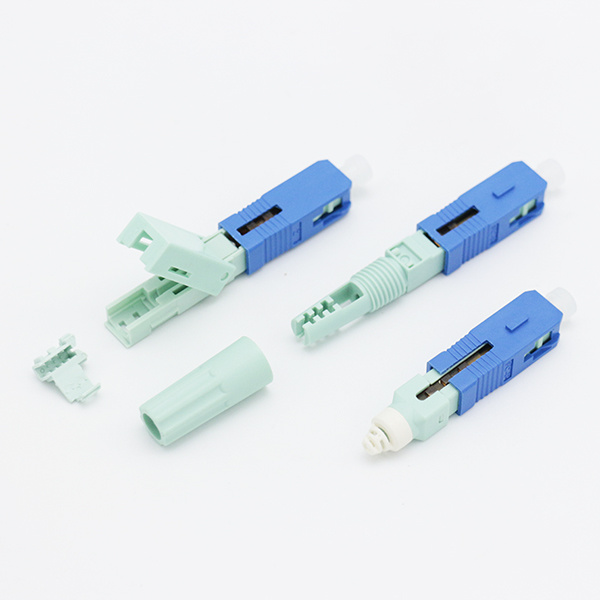

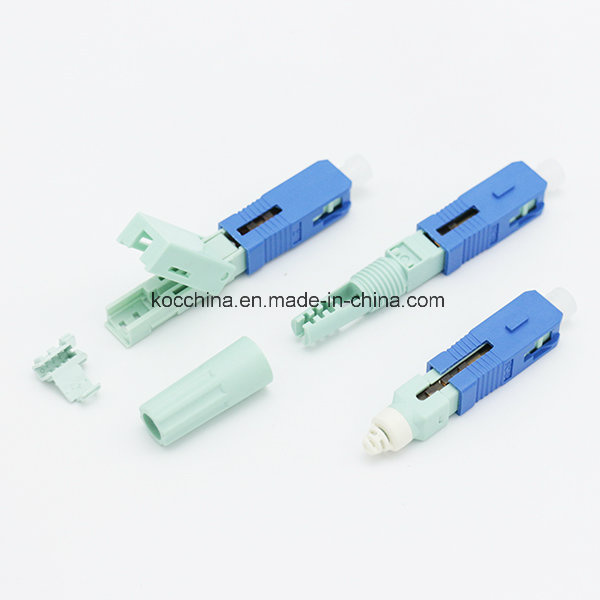

Sc Fic Connector for FTTH Drop Cable

Name: Sc Fic Connector for FTTH Drop Cable
Brand: all-electronics-online.com
SKU: 816913395
Availability: InStock
Rating: 5 (42 reviews)

Price:	US $ 0.9-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Connector
Sc Fiber Optic Connector:	Low Loss
Simplex And Duplex Sc Connector:	Sm and mm
Diameter:	0.9;2.0;3.0
Boot Color:	Green, Blue, Beige, Black, White
Housing Color:	Plastic
Connector:	Upc, APC
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Connector Type:	Sc
Brand:	Koc

Product Description

Product Description
Kamaxoptic Communication Co., Ltd has developed a series of field assembling connector (FAC), which offers a simple, quick and cost effective solution to field working on fiber cable connection.

APPLICATIONS
For FTTX soft indoor cable termination.
Optic fiber or optic fiber cable connecting on working field.
Applied to cable sizes of 0.9mm, 2.0mm, 3.0mm

SPECIAL FEATURES
Re-usable design
Low insertion loss and back reflection loss
Extremely easy for operation
Short operation time.
Low cost
No need of epoxy, no need of polishing (for PC), no need of crimping (for 0.9mm cable).

Sepecifications:

Item	Parameter
Insertion Loss	Average≤0.2dB, Max≤0.4dB
Return Loss	UPC: ≥40dB, APC: ≥55dB
One-time Assembly Rate	≥97%
Assembly Repeatability	≥5 times
Life time	≥10 years
Average Assembly Time	3 minutes
Tensile Resistance	≥30N
Operation Temperature	-40ºC~+85ºC

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
