Takfly Communications Co., Ltd. >> Sc LC FC St Fiber Optical Adaptor Coupler Adapter

Sc LC FC St Fiber Optical Adaptor Coupler Adapter

Sc LC FC St Fiber Optical Adaptor Coupler Adapter
Price: US $ 0.65-2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Fiber Optic Adapter
Parametertunittlc, Sc, FC, Mu, St, Sc-S: -40~75
Durability: >1000
Model No: St Adapter
Ferrule Endface: PC(Upc)
Transmission Medium: Single-Mode
Optional Adapter: Sc, LC, FC, St, Mu, MTRJ, MTP/MPO, DIN
Connector Type: St
Insertion Loss: <0.3dB
Material: Metal or Plastic
Usage: Display
Output Type: AC or DC
Connection: Plug In

Product Description

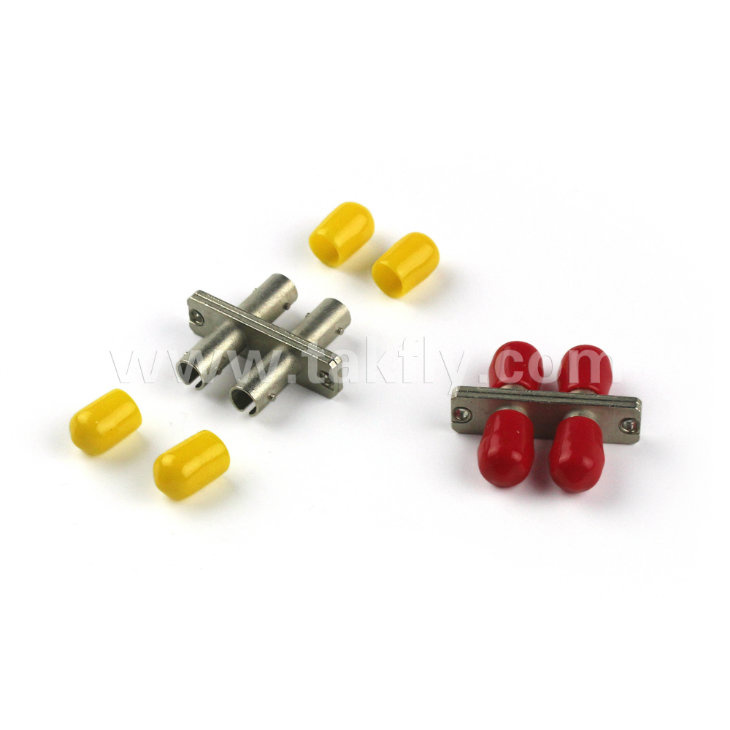

SC/LC/FC/ST Fiber Optical Adaptor Coupler Adapter

Features
Application Parameter

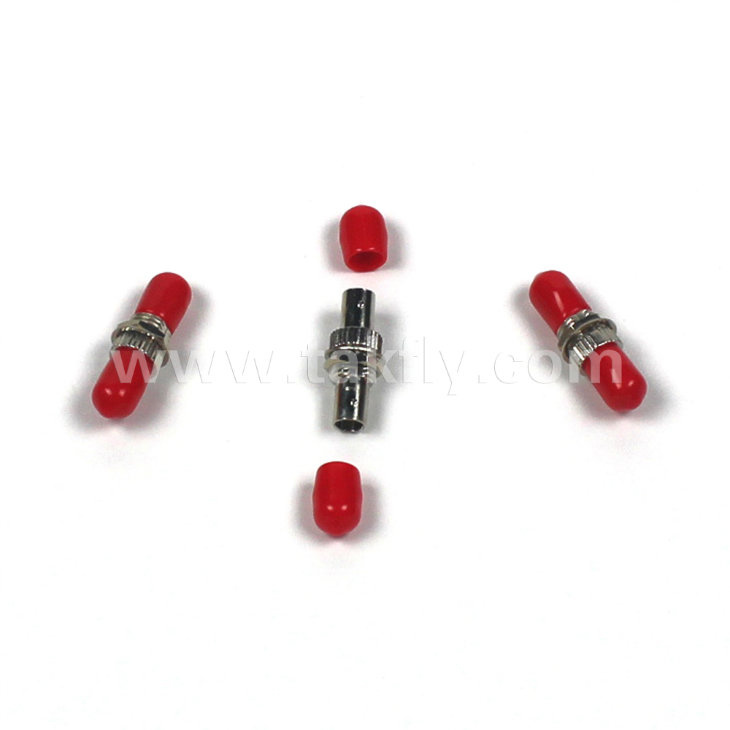

Product ST Adapter
ModeS.M(Zroz)M.M(P.B)
Insertion Loss≤0.2dB≤0.3dB
Return Loss≥45dB--
Mating Durability(500 timer)Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature-40ºC~+85ºC
Storage Temperature     -40ºC~+85ºC


Order Information
CODESLEEVETYPEHOUSINGFIGURE
H221. Zirconia
2. P.B

1 Simplex
2 Duplex

1 SM
2 MM
3 APC

1. D-Shaped
2. SC Footprint Duplex Plastic
3. SC Footprint Duplex Metal
4. SC Footprint Simplex Plastic













Order Information
1. Type: SC, LC, ST, FC, MU, E2000, Hybrid
2. Endface type: PC UPC APC.
3. Singlemode or Multimode.
4. Simplex, Dumplex or Quad.
Insertion loss(dB)≤ 0.20
Duplication (dB)≤ 0.10
Interchangeability (dB)≤ 0.20
Sleeve materialCeramics
Operating temperature (°C)-25 ~ +70-40 ~ +80-25 ~ +70
Storage temperature (°C)-40 ~ +85




Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

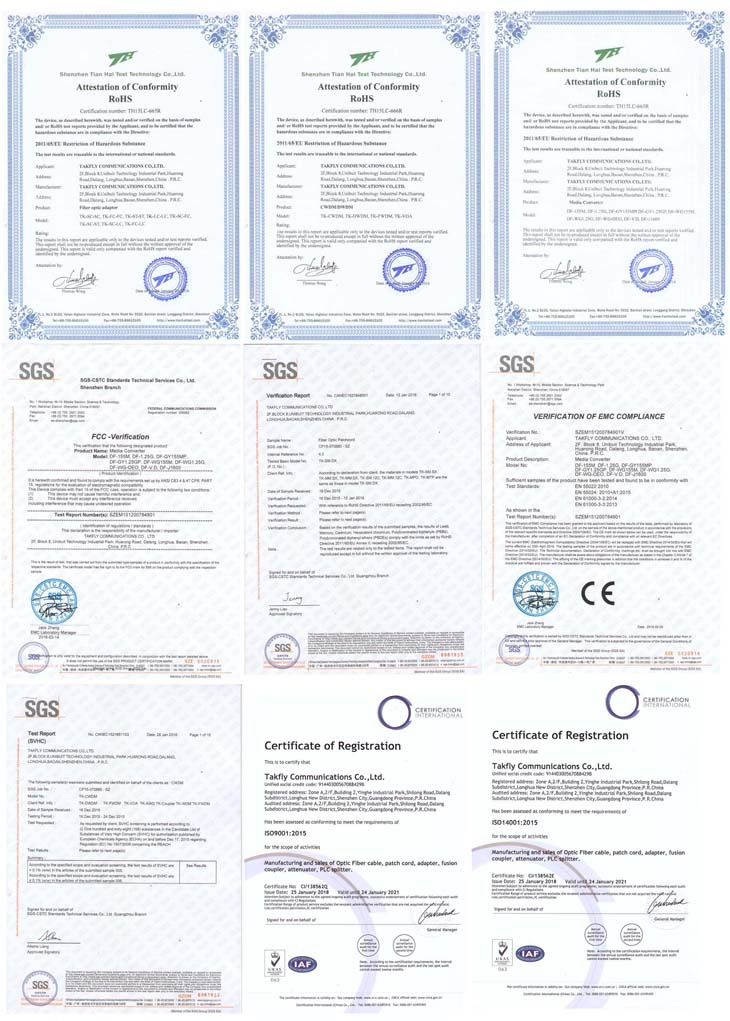

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
