| Prod Model: |
Female to Male Hybrid Fiber Optic Adapter |
| Polish Type: |
APC/Upc |
| Cores: |
Simplex or Duplex |
| Insertion Loss: |
Less Than or Equal to 0.2dB |
| Return Loss(APC): |
More Than or Equal to 60dB |
| Operating Temperature: |
-40 ~ 85c |
| Storage Temperature: |
-40 ~ 85c |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Structure: |
Sc/LC/FC/St/Mu/MTRJ/MPO |
| Light Source TYPE: |
Passive Fiber Optic Network |
Product Description

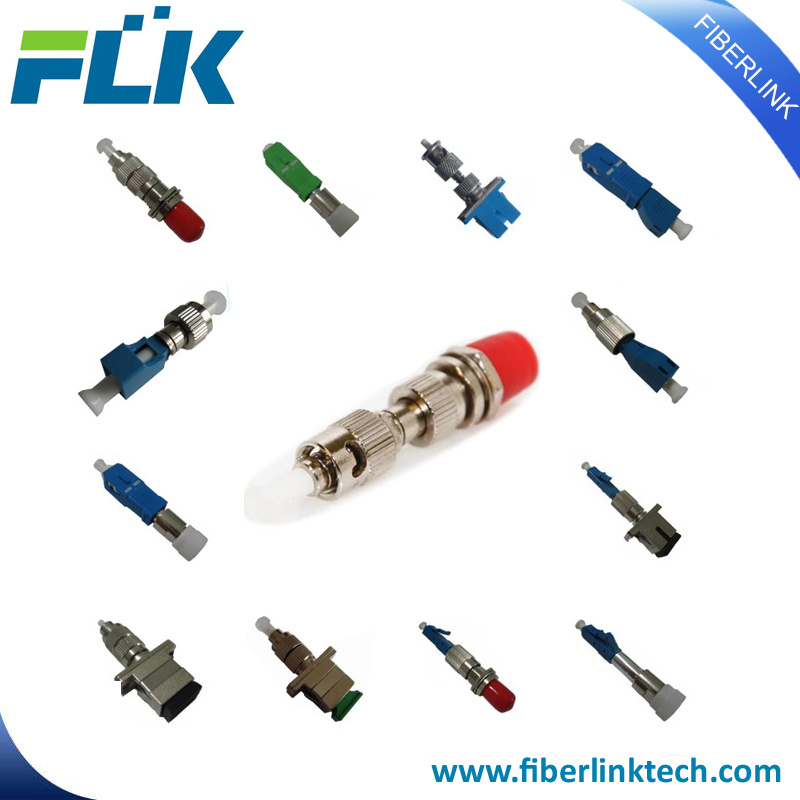

SC/LC/FC/ST/MU/MTRJ/MPO Simplex/Duplex/Quad Singlemode/Multimode/Om3/Om4 Female to Male Hybrid Fiber Optic Adapter
FC Male to SC Female Hybrid Adapter
The FC to SC Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal SC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
FC Male to ST Female Hybrid Adapter
The FC to ST Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal ST body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
SC Male to FC Female Hybrid Adapter
The SC to FC Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal FC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
SC Male to ST Female Hybrid Adapter
The SC to ST Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal ST body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
ST Male to SC Female Hybrid Adapter
The ST to SC Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal SC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
SC Male to LC Female Hybrid Adapter
The SC to LC Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a plastic LC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
FC Male to LC Female Hybrid Adapter
The FC to LC Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a plastic LC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
LC Male to SC Female Hybrid Adapter
The LC to SC Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal SC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
LC Male to FC Female Hybrid Adapter
The LC to FC Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal FC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
LC Male to ST Female Hybrid Adapter
The LC to ST Hybrid Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and a metal ST body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.
Features:- Excellent changeability and directivity
- 100% Optic test (Insertion Loss)
- Ceramic and phosphor bronze sleeve tube optional
- Accurate external size
- Individually packaged
Application:- Fiber optic transmission system
- CATV networks
- LAN
- Testing/Measurement Instruments
- Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
Specification:| Polish Type | Unit | PC | APC |
| Nominal fiber O/D | um | 125±2 |
| Insertion Loss | dB | ≤0.20 | ≤0.20 |
| Return Loss | dB | ≥50 | ≥65 |
| Mating Durability (500Cycles) | ≤0.20dB |
| Temperature Stability | ≤0.30dB |
| Operating Temperature | -40 ~ 85ºC |
| Storage Temperature | -40 ~ 85ºC |

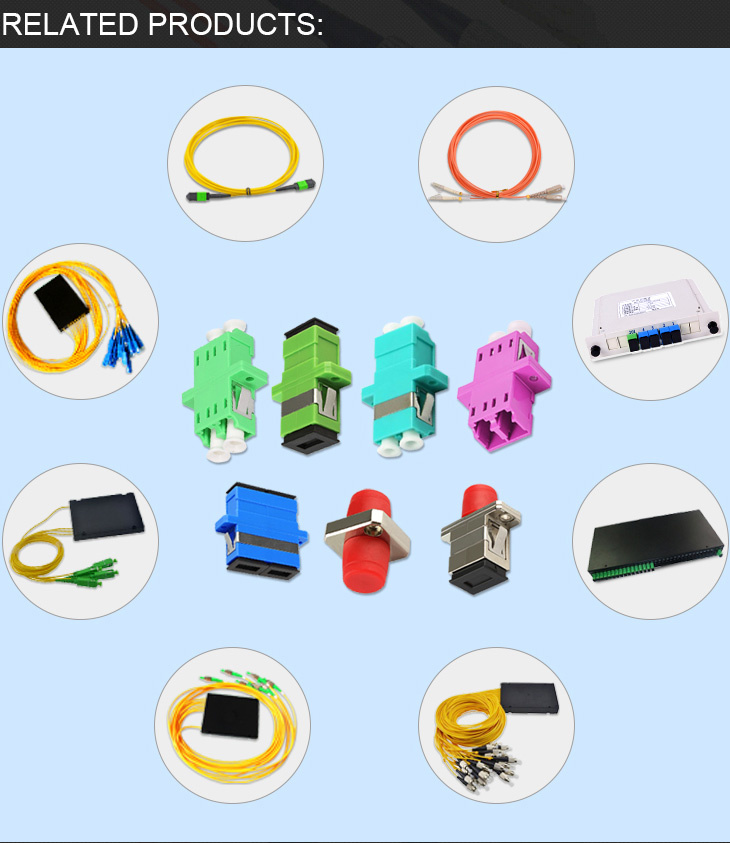

Related products
Our fiber patch cord production line:

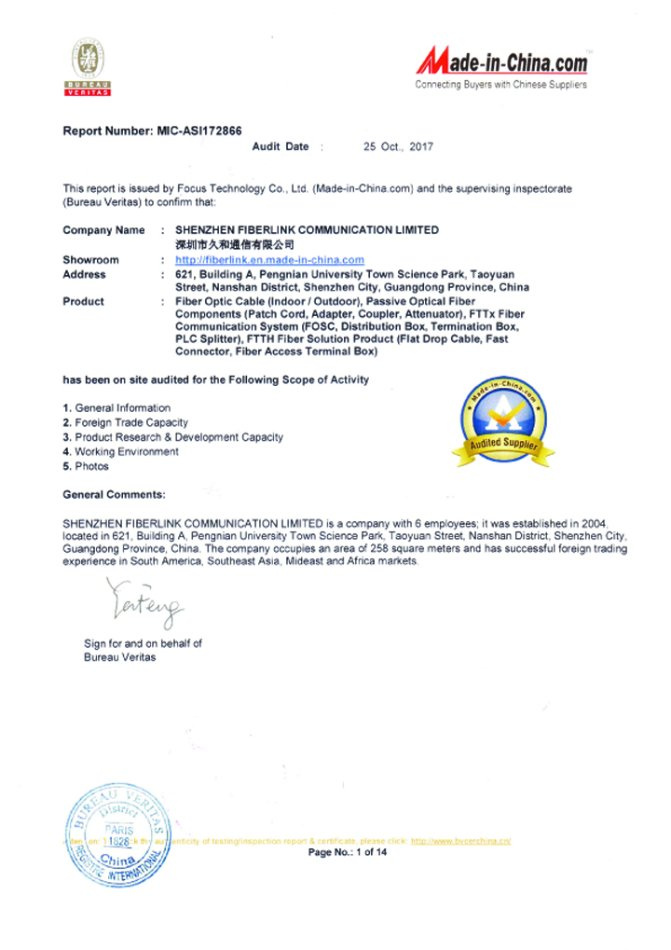

Certifications
