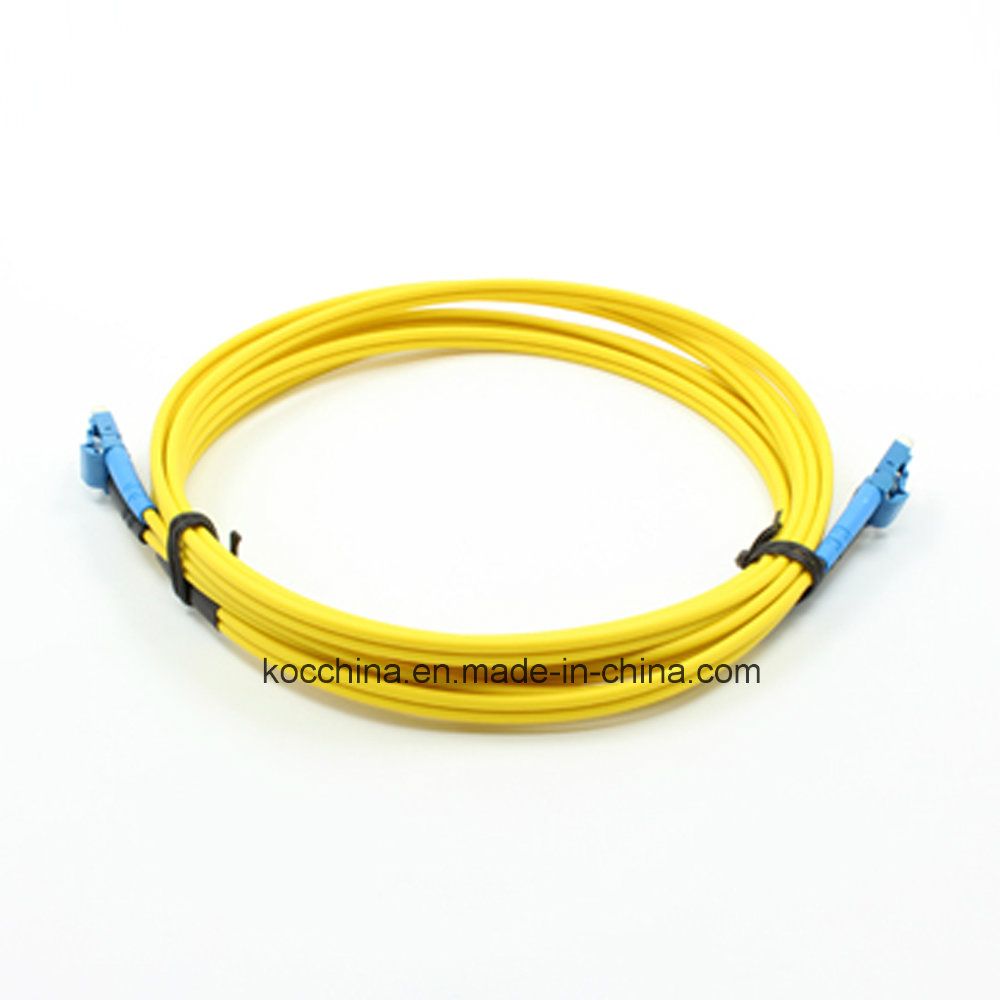

| Prod Model: |
SC-LC |
| Cable Diameter Szie: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| Boot Color: |
Blue, Green, Beige,Aqua, Black, White, Red |
| Housing Material: |
Metal or Plastic |
| Length: |
1m or Customized |
| Cores: |
Sx Dx or Customized |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
RoHS |
| Connection Structure: |
Sc-LC |
| Brand: |
Koc |
| Sheath Material: |
PVC LSZH |
Product Description
Patch Cord Production Conventional Process Flow Diagram:
Order Confirmation →Cleaving Cable →Passing Through Components And Parts →Striping Cable And Striping Fiber →Epoxy Defoaming →Checking Fiber And Cleaning →Polishing →Inserting Fiber And Curing →End Face Initial Inspection →Optical Indexes Testing →End Face Inspection →Assembling and Crimping →Machine Grinding →Cleaving Fiber And Manual Grinding → NG →Tensile Test →Analysis →Analysis →Appearance Inspection →Packing
Features
1.Low insertion loss
2.Mechanicl properties meet standards of IEC874-7 and CECC86115-80.
3.All materials meet the RoHS standard.
4.The patch cable can be customized according to customers specific requirements
5.Compliant with Telcordia GR-326-CORE,IEC and ROHS standards
6.Strict quality testing:IL and RL 100% test.
7.A variety of BOOT color choices.
Applications
1.Wiring of local area network between different enterprise buildings
2.Connection of optical links in optical active devices
3.Wiring in communication base station and distrinbtion case
4.Production and testing of optical devices
5.Optical fiber communication system,CATV and telecommunication network
6.LANs and WANs
7.FTTx
SPECIFICATIONS
ITEM | Parameter |
| Single-mode | Multi-mode |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.20dB,Max≤0.30dB | typical≤0.15dB,Max≤0.25dB |
| Return Loss | UPC≥50.0dB,APC≥60.0dB | ≥35.0dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB typical change,1000 mating |
| Tensile Strength | ≥120N(without 0.9mm patch-cord) or customized |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
ORDERING OPTIONS
Fiber Type | Cable Type | Connector Color | Boot Size | Boot Color | Polishing Type | Length |
| SM: 9/125μm | Simplex | Beige | 0.9mm | White | UPC | Customized |
| MM: 50/125μm | Duplex | Blue | 2.0mm | Blue | APC | |
| MM: 62.5/125μm | 4 fiber | Green | 2.4mm | Green | | |
| MM: OM3/150 | 6 fiber | With clip is available. | 3.0mm | Red | | |
| MM: OM3/300 | 8 fiber | 45 degree boot | Black | | |
| MM: OM3/550 | 12 fiber | 90 degree boot | | | |
| | 24 fiber | | | | |
Note: More datasheets please contact our salesman.
