| Prod Model: |
fiber optic patch cord |
| Connector: |
Sc/Upc-LC/Upc |
| Cable Diameter: |
2.0mm |
| Length: |
10 Meters |
| Color: |
Yellow |
| Cable Material: |
PVC, Ofnr, LSZH |
| Logo: |
as You Need |
| Fiber Mode: |
9/125 OS2 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CE |
Product Description

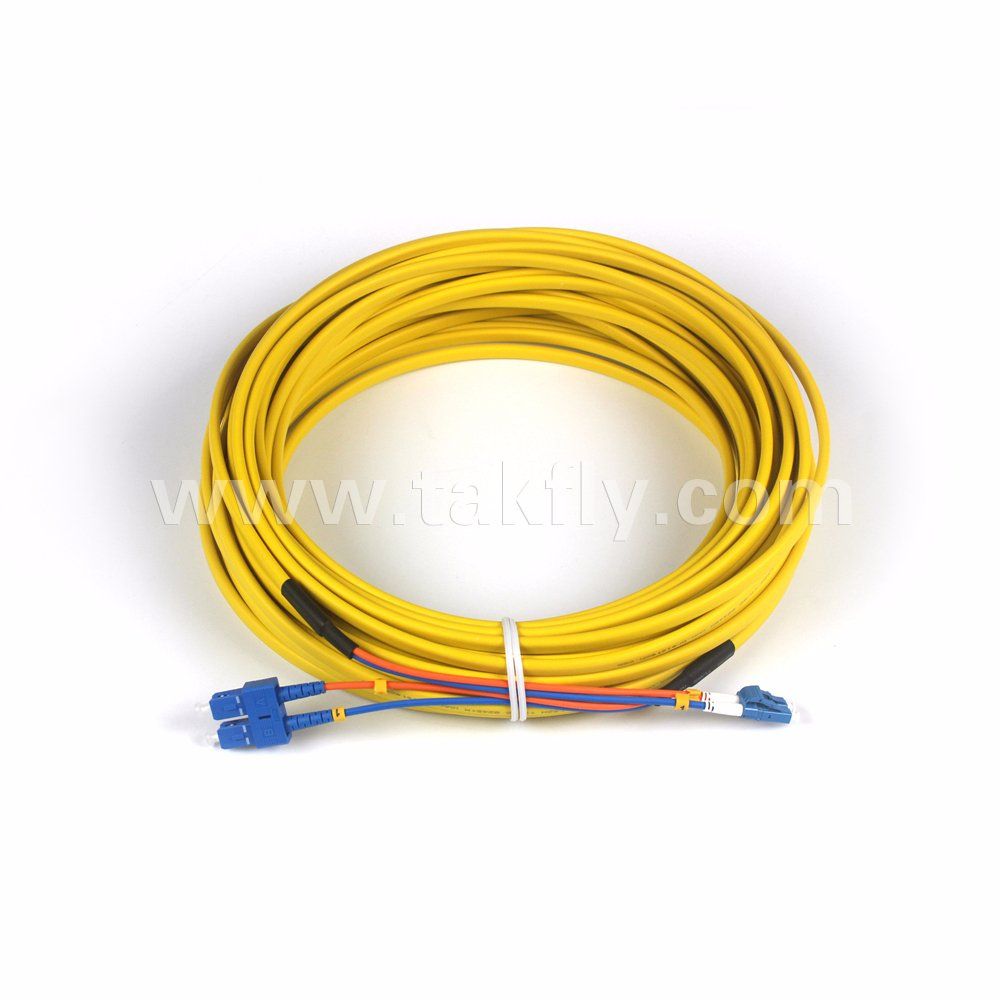

SC/UPC to LC/UPC Connector Singlemode Duplex 2.0mm Flat Type Fiber Optic Patch Cord (Patch Cable)
Advantages:
1. Takfly has 4 times polishing the connector: 1200um polishing, 9um polishing, 1um polishing and 0.5um polishing;
2. The concentricity of the ferrule<0.5
3. IL<0.2dB.
4. Lead time for delivery: 2-4 working days.
5. Takfly's manufacturing machines are imported from Germany and Japan.
Features
1. Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2. Connector type standard: IEC61574 series
3. Low Insertion Loss : IEC 61300-3-4, IL≤0.20dB
4. High Return Loss :IEC61300-3-6; RL≥60dB
5. Flammability:IEC60332-1
6. Repeat Plug feature is good, good interchangeability
7. Ceramic Ferrule, high-density docking, concentricity ≤0.5
8. Can provide general PVC or LSZH cable cable
Application
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Specification
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Order Information
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
| Fiber cable performance specifications |
| Fiber type | Min.Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km |
50/125
10G Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km |
| Fiber type | Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A1,G657A2 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)OM4 |
| Fiber | YOFC, CORNING, OFS |
| Connector1 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Connector2 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm, 3.0mm |
| Cable jacket | PVC,LSZH, OFNR, OFNP |
| length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m (custom) |
