Sc/LC/St/FC/Mu Singlemode or Multimode Fiber Optic Attenuator for Data Transmission

Name: Sc/LC/St/FC/Mu Singlemode or Multimode Fiber Optic Attenuator for Data Transmission
Brand: all-electronics-online.com
SKU: 643262935
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 2.9-3.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC, LC, FC, ST, MU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Optic Attenuator:	Sc,FC, LC,St, Mu
Material:	Plastic, Metal
Housing Color:	Green, Blue, Beige, Black,Metal
Attenuation Level:	1-25dB
Package:	1PC/Bag
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Fabrication Process:	Optical Attenuation
Application:	Data Transmisstion
Brand:	Koc

Product Description

BRIEF INTRODUCTION

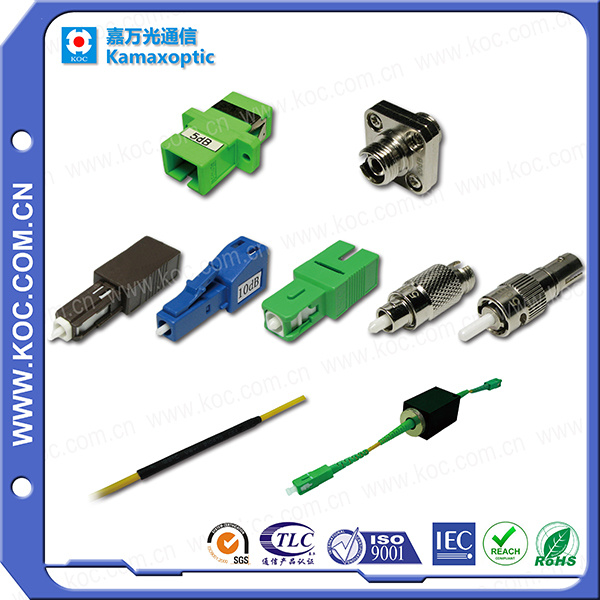

KOC can provide three types of attenuator: plug type fixed attenuator, adapter type attenuator and variable attenuator. The plug type fixed attenuator is an optical fiber attenuator, which one end is connector type and the other end is adapter type. There are several types such as SC, LC, FC, ST, MU. The attenuator operating bandwidth from 1250 to 1650nm and the attenuation can be chose from 0 to 40dB. Plug type fixed attenuator mainly used reduce the size of the optical power in the optical link, equipment test, telecommunication network and so on.

APPLICATIONS
Telecommunication Networks
Data Networks
Video & CATV

FEATURES
Bellcore Compliant
Durability (well over 100mw)
Wavelength Independent (DWDM)
Simple and Reliable Structure

SPECIFICATIONS

Operating Wavelength:	SM: 1200-1600nm or 1310nm, 1550nm
Operating Wavelength:	MM: 850nm, 1300nm
Return Loss:	≥50 dB (SPC)
	≥55 dB (UPC)
	≥65 dB (APC)
Attenuation Accuracy:	+/-0.5 (1-5) dB
Attenuation Accuracy:	+/-10% (6-30) dB
Polarization Dependent Loss:	<=0.2dB
Maximum Optical Input Power:	200mW
Operating Temp. Range:	-40 ~ 80°C

ORDERING OPTIONS

Connector Type	Application	Wavelength	Attenuation Level
SC	UPC	1310nm	1,2,3,25dB
FC	APC	1550nm
ST		1310/1550nm
LC
MU

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
