Sc LC Upc 1.5m LSZH Om3 Fiber Optical Pigtail Cable

Name: Sc LC Upc 1.5m LSZH Om3 Fiber Optical Pigtail Cable
Brand: all-electronics-online.com
SKU: 815988935
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-Fiber-pigtail
Item Name:	Fiber Optic Pigtail
Keywords:	Pigtail/Fiber Pigtail/Sc Pigtail
Connector:	Sc/Upc
Mode Type:	Om3 Pigtail
Length:	1.5m
Insert Loss:	<=0.3dB
Customized:	Available
Application:	Probe
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

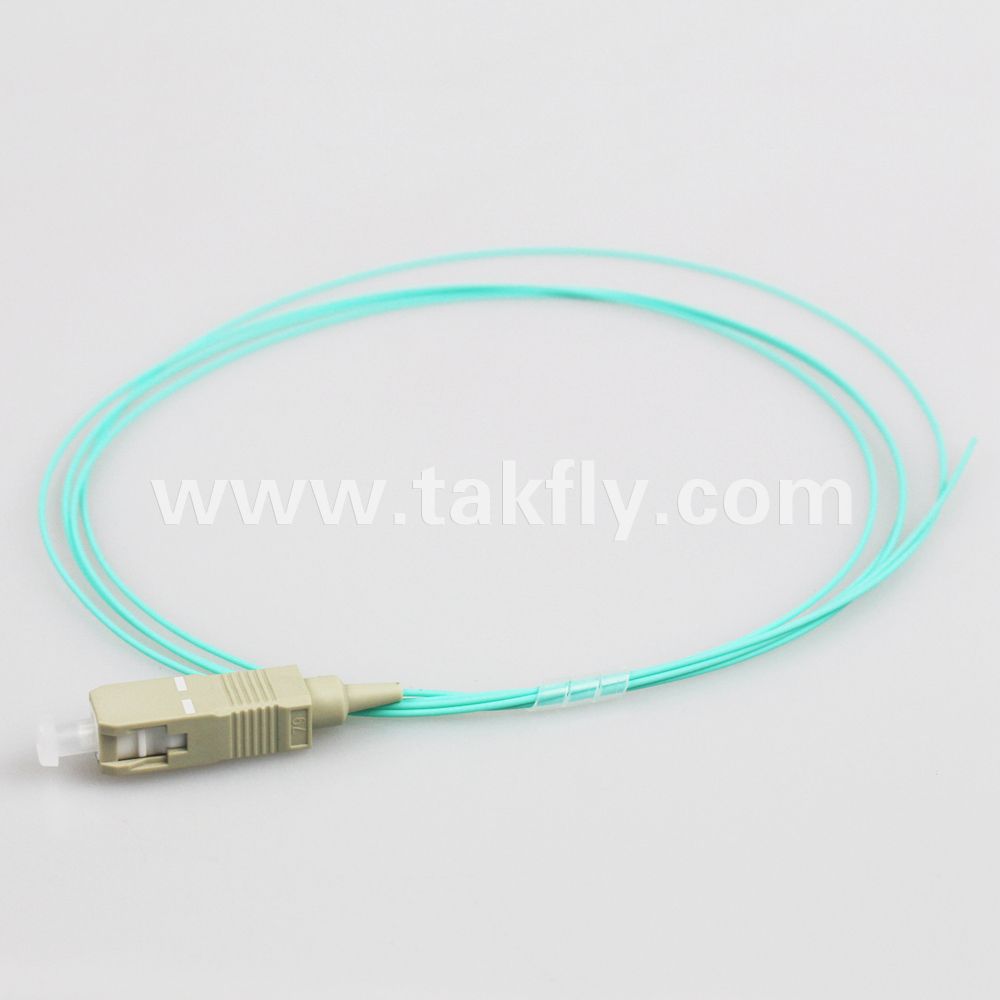

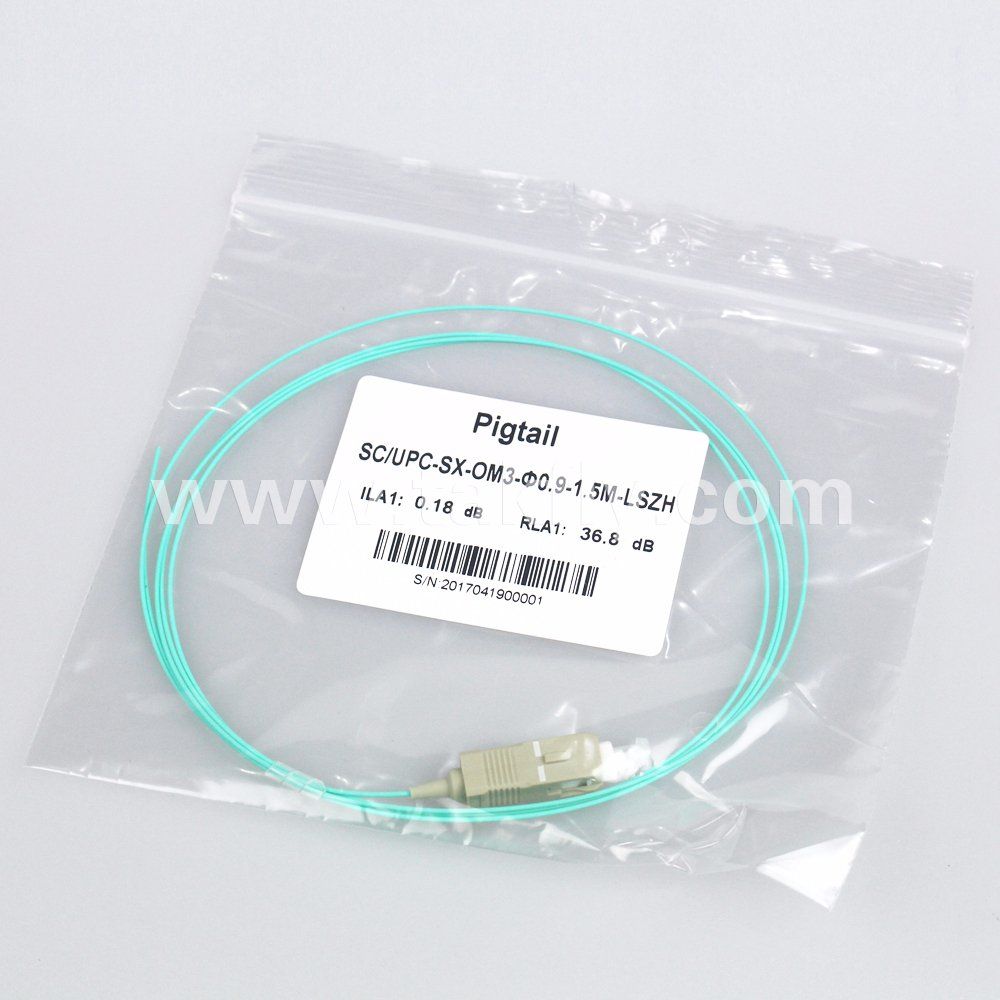

SC LC Upc 1.5m LSZH Om3 Fiber Optical Pigtail Cable

Fiber optical Pigtail cable is a length of fiber permanently attached connector only at one end. Available in a large range of colors and lengths, we have the cable that can fit every situation. and pigtail assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

Features:

Type SC Fiber Optic Patchcord and Pigtail
Single mode and Multimode PC or 8 degree APC 9 degree APC
Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core
Custom order length
Cable color green, yellow, orange or Customized Designs
Cable PVC,Hytrel,LSZH,OFNP,OFNR
All parts compliant with ROHS
IEC standard compatible
GR-326-CORE Compliant

Application:

Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTH

OM3 fiber optic pigtails Parameter:

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40ºC~+75ºC
Storage Temperature		-40ºC~+75ºC

Order Information:

CODE	CONNECTOR	CABLE SIZE	FIBER TYPE	CABLE TYPE	FIGURE
H02	1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex	1. 0.9 2. 2.0 3. 3.0	1.9/125 2.OM3 3.50/125 4.62.5/125	1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH	1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black

Any question about OM3 fiber optic pigtail,please leave me an inquiry or contact me directly.
