| Prod Model: |
sc |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sm, Mm Available: |
with Shutter Protection Cap |
| Housing Color: |
Blue,Green,Aqua,Red,Magenta,Beige |
| Core: |
Duplex |
| Sleeve: |
Zr, Pb |
| Flange: |
with Flange,Without Flange |
| Shutter: |
with Shutter,Without Shutter |
| Housing Material: |
PC, ABS, PPO |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
| Light Source TYPE: |
Fiber Communication |
Product Description

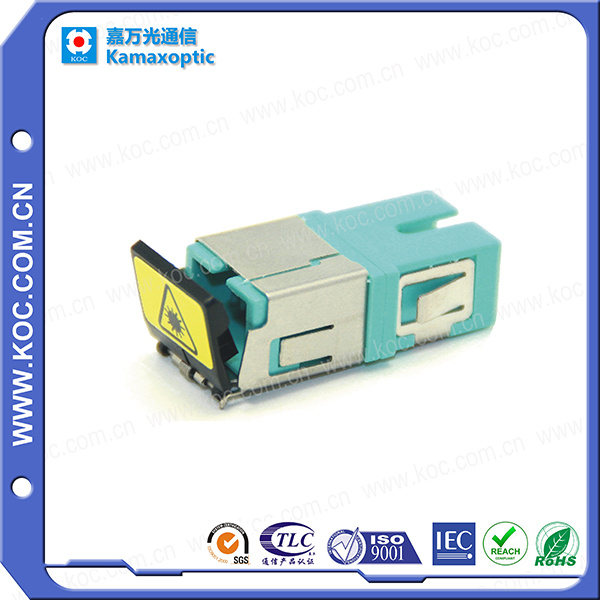

Competitive quality and price fiber optic adapters from KOC.
BRIEF INTRODUCTION
All of the adapters like SC,LC,FC,ST,MU,D4,DIN are use ceramic sleeve to connect connectors although they are different size and appearance. Each species has a lot of types and colors can be chose. Single mode and multi-mode are different performance and price. These adapters can locking the connectors and get low insertion loss to transmission optical signal, which have been widely applied to the CATV system, communications system, FTTx system, ODF, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing adapters and all of them are meet the Telcordia and IEC-61754 stander, the material compliance RoHS require.
FEATURES
Low insertion loss
Good exchangeability and durability
High temperature stability
All parts compliant with RoHS
Polytypic
APPLICATIONS
Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN
SPECIFICATIONS (SC, LC, FC, ST, MU, D4, DIN adapter)
| ITEM | PARAMETER |
| Applicative adapter type | SC,LC,FC,ST,MU,D4,DIN |
| Fiber mode | Single mode | Multi-mode |
| Adapter color | Blue, green, metal | Beige, metal |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB Max change,1000 mating |
| Channels | Simplex,Duplex,4channels |
| Body material | Plastic or metal |
| Sleeve material | Ceramic(ZrO2) |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
Note: the FOB price range is SC fiber optic simplex adapter with shutters
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
