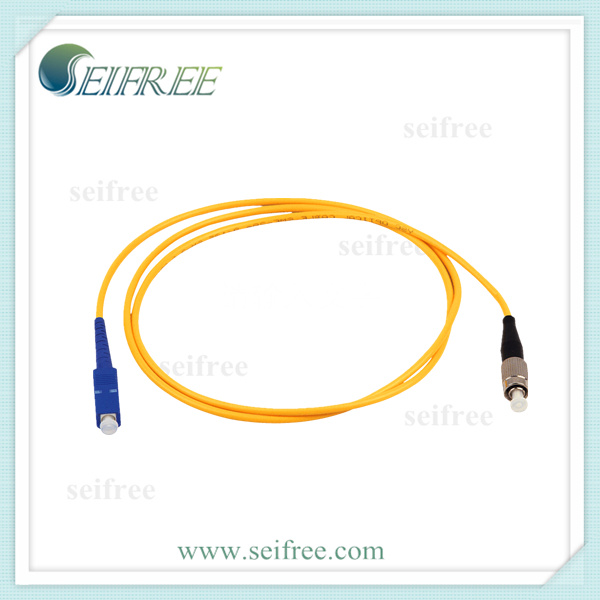

SC/PC-FC/PC Fiber Optic Patch Cord, Sm Simplex Patchcord

Prod Model:	SOFC-1-FU-SU-A-3-00-C-10
Fiber Type:	Sm
Connector Type:	SC/PC-FC/PC
Cable:	Simplex
Pigtail Diameter:	2.8mm
Length:	1m
Product Name:	Patchcord
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	FC-SC
Certification:	ISO9001

Product Description

Description
Optical Fiber Patch Cord (Jumper) is a optical fiber cable with two ends adding connectors to connect beam path. Pigtail is fiber cable permanently attached connector only at one end. Patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

Applications
--- Telecom Network
--- Local Ring Network
--- Optical Fiber Sensor
--- Optical Fiber Test Equipment
--- Optical Fiber Communication System
--- FTTH, LAN, PON & Optical CATV

Ordering Information

Cable	First End	Second End	Fiber Type	Pigtail Dia.(mm)	Fan Out Length	Jacket Type	Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2mm	10=100cm	C=PVC	10=100cm
4=4Fiber			D=G652D	3=Φ3mm		H=LSZH
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A		20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			W=Bow-type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125


Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

FAQ
1. Do you provide free samples?
yes, we can supply some free samples, but the buyer should bear the shipping cost.
2. Can you supply OEM products under our brand?
yes, we are manufacturer, and we can accept OEM service with OEM package, you just need to send us your detailed requirements.
3. What about the after-sales sevice?
Our will provide free change for new cable if there is any quality problem in your order.
4. How to shipping?
By Sea: If you have freight forwarder, they can handle shipping for you. If not, we can arrange the shipment for you.
By Air: After got weight and CBM from us, you can try to contact with DHL, Fedex, UPS express etc. Sometimes it's more cheaper by China express agent, you can contact with our sales to get the freight cost.
