SC PC Fiber Field Installable Optical Fast Connector

Name: SC PC Fiber Field Installable Optical Fast Connector
Brand: all-electronics-online.com
SKU: 733113302
Availability: InStock
Rating: 4.8 (141 reviews)

Price:	US $ 0.7-1/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	53435
Return Loss:	45dB
Cable:	3.0X2.0mm Drop cable
Color:	Blue
Connector:	SC PC
Fiber Cleaver:	Bare Fiber
Compact Size:	53mm
Polish Type:	PC
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Light Source TYPE:	Fiber

Product Description

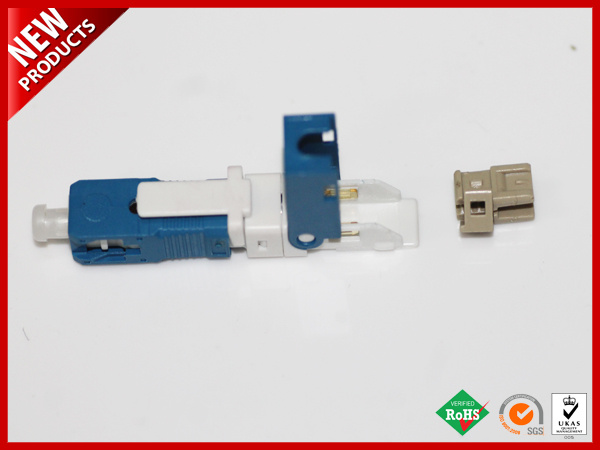

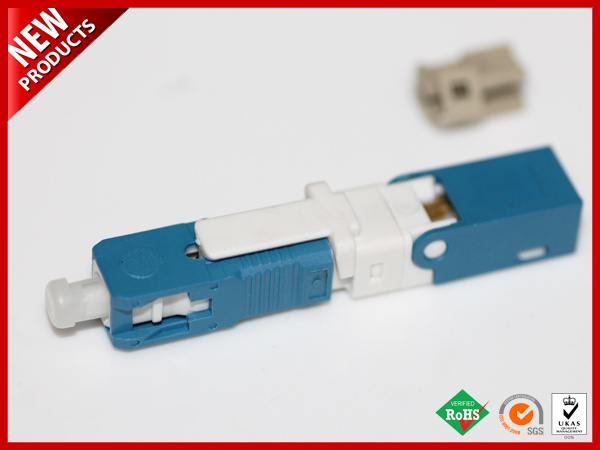

SC PC Fiber Field Installable Optical Fast Connector

Field installable connectors can be assembled easily and quickly in the field with no epoxy, heat cure devices or special tooling to facilitate the termination of the fiber. To reduce material waste, the drop cable connector can be removed and re-terminated using the same connector up to five times. The fiber mating alignment and gripping technology includes a factory-polished zirconia ferrule, which improves durability and provides a reliable, low-loss fiber termination. A tool kit can be ordered separately. It contains Tripping and cutting tool, cleaver, and a cleaning paper.

Feature

Comply with TIA/EIA and IEC;
Quick and easy fiber termination;
RoHS compliant;
Reusable termination capability [Up to 5 times];
Easy to deploy fiber solution;
High success rate of connections;
Low Insertion & Back Reflection;
No special tools required.

Application

All fiber interconnection;
Telecom Distribution and Local Area Networks;
FTTH and FTTx;
Passive optical networks [ATM, WDM, Ethernet;
Broadband, Cable TV(CATV).

Specifications

Interferometer	UPC Type	APC Type
Radius Of Curvature	7mm~25mm	5mm~12mm
Apex Offset	Max. 50µm	Max. 50µm
Fiber Height	-50nm~50nm	-50nm~50nm
Tile Error on APC 8˚	None	±0.3

Dimensions

	SC Type	LC Type	ST Type	FC Type
Conformance	TIA/EIA 604-3	TIA/EIA 604-10	TIA/EIA 604-2	TIA/EIA 604-4
Ferrule	Ceramic(Zirconia)
Housing Color	Single Mode PC type: Blue Single Mode APC type : Green Multimode PC type: Beige
Cable type	50μm/900μm 2.0mm/3.0mm 2.0mm X 3.0mm 1.6mm X 2.0mm Universal Type	250μm/900μm 2.0mm 1.6mm X 2.0mm	250μm/900μm 2.0mm	250μm/900μm 2.0mm/3.0mm 2.0mm X 3.0mm 1.6mm X 2.0mm
