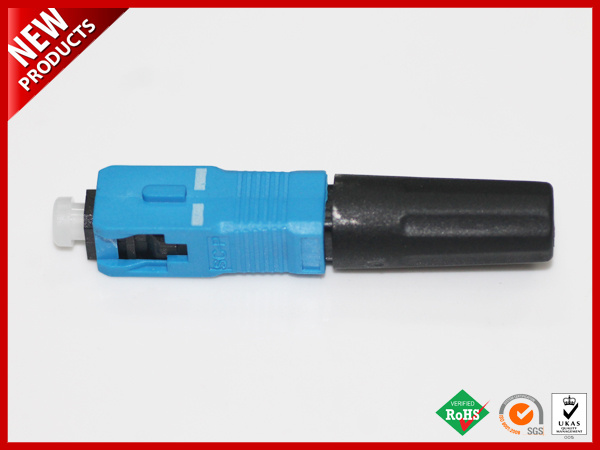

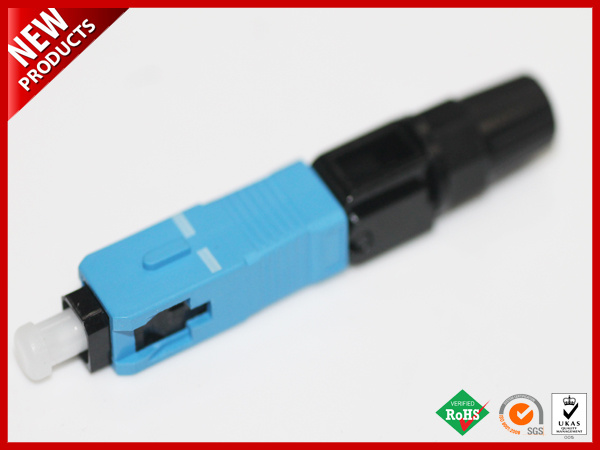

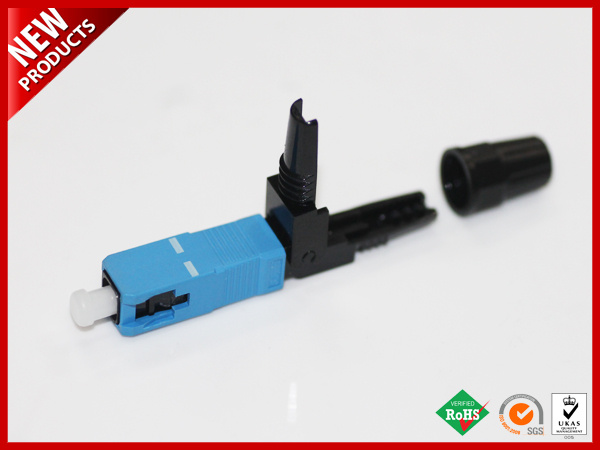

SC PC Type A SM Pre-polished Ferrule Field Assembly Quick Connector
| Price: |
US $ 0.1-0.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
554678 |
| Fiber Mode: |
Single-mode or Multi mode |
| Operation Time: |
About 50(no fiber cut) |
| Insertion Loss: |
0.5dB |
| Insertion Loss Typical Value: |
0.3dB |
| Tensile Strength: |
50N |
| Reusable: |
10 times |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Light Source TYPE: |
Fiber |
Product Description
SC PC Type A SM Pre-polished Ferrule Field Assembly Quick Connector
The SC/UPC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either Single-mode or Multimode optical fibers. The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and Multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with UPC or APC ferrules.
Key Features & Applications
√ No epoxy and polishing required;
√ No expensive tools required;
√ Quick and easy fiber termination;
√ Precision mechanical alignment insures low insertion loss;
√ Superior optical performance;
√ Streamlined component design, convenient operation;
√ Pre-installed, on-site assembly without end face grinding and consideration;
√ Uses proven, molded v-groove technologies;
√ Allow optical continuity to be verified by use of visual fault locator (VFL);
√ Fiber optic communication system and telecommunication networks;
√ Fiber optic data transmission;
√ CATV;
√ Optical access.

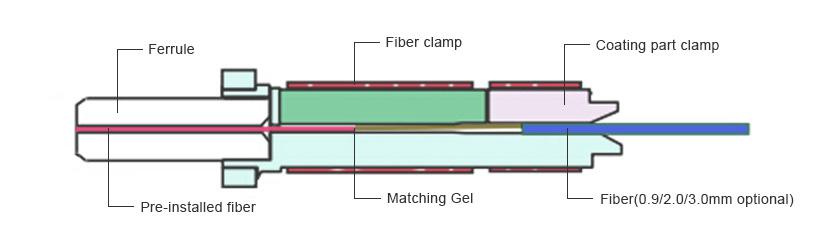

Structure Example
Optical Characteristics | Category | Specification |
| Applicable for | Drop cable.Indoor cable |
| Fiber mode | Single-mode or Multi mode |
| Operation time | S | About 50(no fiber cut) |
| Insertion Loss | dB | ≤0.5 |
| Insertion Loss Typical value | dB | 0.3 |
| Return Loss | dB | ≥45 |
| Fastening strength of naked fiber | N | ≥5 |
| Tensile strength | N | ≥50 |
| Reusable | Time | ≥10 times |
| Operating Temperature | ºC | -40~+85 |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 |
Drop-off test
(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 |
Environmental performance requirements | Category | Specification |
| Condition | IL Variation | RL Variation | Appearance |
| High TEMP | 110ºC,200H | ≤0.5 | ≤5 |
No mechanical damage, like deformation, cracking and untight |
| Low TEMP | -40ºC,200H | ≤0.5 | ≤5 |
| TEMP Cycling | -40~85ºC,3.5H/Cle, 100C | ≤0.5 | ≤5 |
| HAST | 110ºC,90%RH,200H | ≤0.5 | ≤5 |
| Immersion | 25ºC,200H | ≤0.5 | ≤5 |
| Salt Mist | 5% Nacl,6.5 | | ≤5 |
Tensile | Pull:50N;The distance between Loading location and fast connector:
L = 22-28cm;
Duration:1min. |
≤0.5 |
≤5 |
Product Packaging Information | | Size (CM) | 12*9 |
| QTY (PCS/PE Bag) | 1 |
| Netweight (KG/PCS) | 0.005 |
