| Prod Model: |
SC-1003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Within 2 to 4 Days |
| Type: |
Multi-Mode Fiber |
| Connection Structure: |
Sc |
| Certification: |
Ce, RoHS, ISO9001, UL |
| Warranty: |
5 Years |
| Sample: |
Available |
| Structure: |
SC |
| Transmission Medium: |
Singlemode or Multimode |
| Number Of Cores: |
Single or Multi Core |
| Ferrule Endface: |
PC/Upc/APC/Spc |
| Connector Type: |
PC, Upc, APC |
Product Description

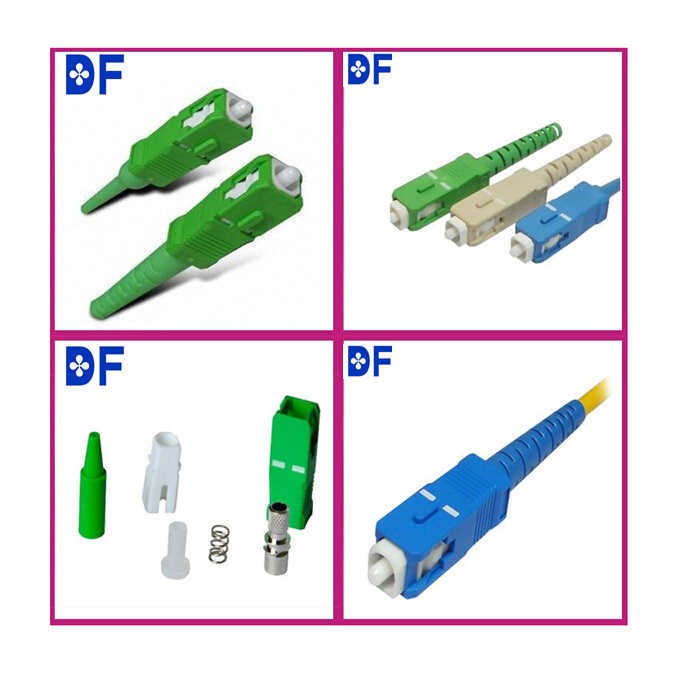

SC PC/UPC/APC fiber optic connector with good price
Product Description:
1. UL rated plastic housing
2. Single mode, multi mode
3. PC, UPC, APC
4. Free-floating ceramic ferrule
We supply fiber optic SC connector kit, include single mode SC connector kit, multi mode SC connector kit with 0.9mm, 2.0mm and 3.0mm boot in different colors. Optic SC connector kit available in SM UPC, APC and MM UPC with industry standard blue, green, aqua and beige colors.
SC connector kit descriptions:
The SC connector kit comprises of a polymer body with ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900μ M, 2mm and 3mm cables. The combination of a ceramic ferrule with precision polymer housing provides consistent long-term mechanical and optical performance.
SC fiber optic connector uses 2.5mm ceramic ferrules. SC fiber products are available by both single mode and multimode, single mode SC have two types, one is SC UPC and the other is SC APC, multimode only has SC UPC connectors. According to the industrial standard, single mode SC UPC connector is in blue color, single mode SC APC connector is green color, multimode SC UPC is beige color.
SC connector features:
1. Compliant with Telcordia, TIA/IEA, IEC and JIS standards
2. Low insertion loss and back reflection
3. One-piece construction & puff-proof design
4. Free-floating ceramic ferrule.
5. Precision anti-rotation key and corrosion resistant body.
6. UL-rated plastic housing and boots in green, blue, aqua and beige colors.
7. Telcordia style boots.
| Item | LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc |
| Type | Multi-Mode | Single-Mode |
| Light Characteristic | Operating Wavelength | 850nm& 1300nm | 1310nm & 1550nm |
| Typical Insertion Loss | 0.2dB & 0.2dB | 0.2dB & 0.2dB |
| Mechanical Testing | Repeatability | ≤ 0.2dB |
| Exchange | ≤ 0.2dB |
| Durability | > 1000 (Times) |
| Temperature | Storage Temperature | 25 ~+85 |
| Operating Temperature | 25 ~+85 |
| Length, Color, Out-Diameter, Fiber counts | According to the customers' requirement
|
