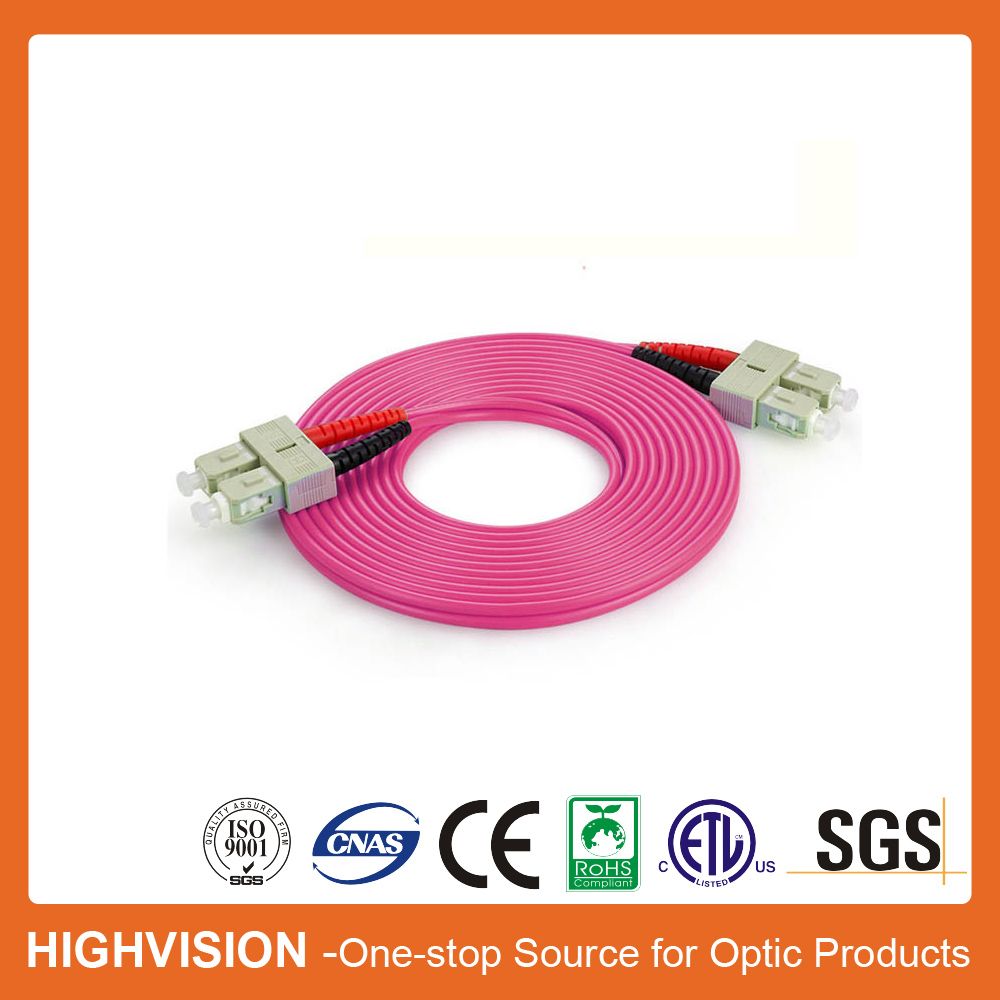

Sc-Sc Duplex Om4 Fiber Optic Patch Cord

Name: Sc-Sc Duplex Om4 Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 834247625
Availability: InStock
Rating: 4.5 (72 reviews)

Price:	US $ 0.01-6/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001

Product Description

Duplex OM4 Fiber Optic Patch Cord

Applications
1.Building interconnections (campus LAN)

2.Trunk lines direct to telecommunication network,

3.Fiber patch panel within communication closets,

4.Links between electronic equipment and fiber.

Features
1.Available in customized lengths
2.Low insertion loss, High Return Loss.
3.2mm jacket for greater flexibility and small bending radius, 3mm jacket available upon request.
4.Meet all standard panel interfaces, easy to apply
5.All cables serialized and test results are recorded
6.High bandwidth, high tensile strength
7.Manufactured under ISO9001-2008 Quality Management System, CE & RoHS compliant.

Performance

Item	Unit	Specification
Item		FC/PC	FC/UPC	FC/APC	SC/PC	SC/UPC	SC/APC	ST/PC	ST/UPC
Insertion Loss	dB	≤0.20
Max. Insertion Loss	dB	≤0.30
Repeatability	dB	≤0.10
exchangeability	dB	≤0.20
Return Loss	dB	45	50	60	45	50	60	45	50
Operation Temperature	ºC	-40 ~ +80			-25 ~ +70			-40 ~ +80
Storage Temperature	ºC	-40 ~ +85
Durability		>1000 times
Industry Standard		Bellcore TA-NWT-001209

Available Connector Types: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA, etc.
Available Polishing: PC, UPC, APC
Available Glass Type: Single Mode 9/125, Multimode 50/125, Multimode 62.5/125, as standard,
G655, G657, OM2, OM3 and OM4 fibers are also available upon request.
Available Jacket Diameter: 2.0mm Thickness Jacket as standard, 3.0mm also available upon request.
Available Jacket Material: PVC, FRNC, LSZH

HIGHVISION is a high-tech company specialized in design, developing, manufacture and marketing Telecommunication products, like Optica fiber Cables, Optical Passive Devices, ODN products and as well as transmission equipments and CATV products with international advanced technology.

With high experienced R&D engineers and professional QA team, we supply to our clients all over the world with high standard products but competitive prices.

Our prodcut range covers as below:

All kinds of Optic Fiber Cables, indoor or out door,

Optic Patch Cords and Pigtails,

Armored Jumper Cables for FTTA, aks CPRI cables,

Optic Passives like PLC Splitters, xDWN Modules, Optic Switches,

ODN Products such as Terminal Box, Fiber Distribution Box, Fiber Splice Closure, etc

Optic Transsmission items like xSFP, Optic Node, EDFA, etc.

And testing & Installtion instruments and accessories.
