Sc-Sc mm Dx 2.0mm Om4 50/125 Fiber Optic Patch Cord
| Price: |
US $ 1.0-1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
om4 |
| Product Name: |
Sc-Sc mm Dx 2.0mm Om4 50/125 Fiber Optic Patch Cor |
| Jacket Color: |
Purple |
| Connector Type: |
Sc-Sc |
| Ferrule Endface: |
PC |
| Length: |
0.5m/1m/2m/5m/Customized |
| Fiber Core Diameter: |
50/125 |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
SGS |
| Sheath Material: |
LSZH |
Product Description
APPLICATIONS:
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS:
| Single mode | Multimode |
| Insertion Loss | Typical≤0.2dB, Maximum≤0.3dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC)
≥60 dB (APC) | ≥30 dB |
| Repeatability | ≤0.1 |
| Durability | ≤0.2 dB typical change, 1000 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C |
ORDERING OPTIONS:| Connector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
| Beige | 0.9mm | Beige | 9/125μm (SM) | Simplex | PC | Customized |
| Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC |
|
| Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out (4f) |
|
|
|
| Green |
| Fan-out (6f) |
|
|
|
| Gray |
| Fan-out (8f) |
|
|
|
| Red |
| Fan-out (12f) |
|
|
|
| White |
| Fan-out (24f) |
|
|
| Fiber type | Single mode:
9/125-G652D
9/125-G655
9/125-G657A1/A2/A3 |
Multimode:
62.5/125-OM1
50/125-OM2
50/125-OM3
50/125-OM4 |
| Fiber | Corning, China Fiber, others |
| Connector1 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector, MTRJ female connector |
| Connector2 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector, MTRJ female connector |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm , 1.8mm, 2.0mm, 2.8mm, 3.0mm |
| Cable jacket | PVC,LSZH,OFNR,OFNP,OFCP,OFCR |
| length(M) | 0.5m,1m,2m,3m,5m,10m,15m,20m,25m,30m,35m,50m,100m,150m,200m or customized |

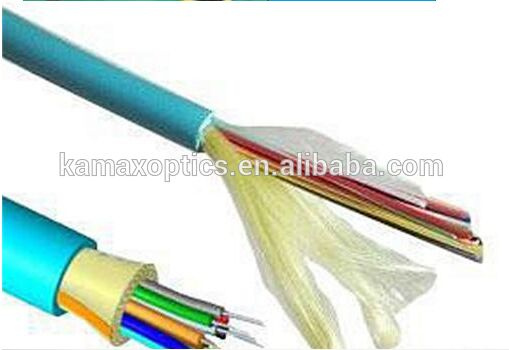

Pictures:
Thank you for viewing!
Please ask if you have any questions!
Welcome to visit our website:www.koc.com.cn
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
