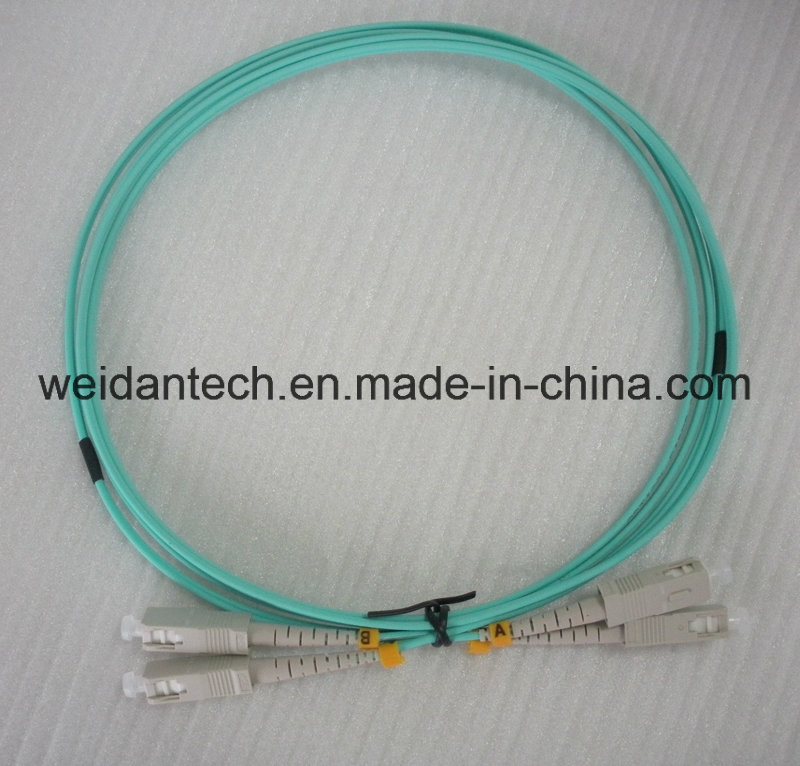

Sc-Sc Multimode Duplex Om3 Fiber Optic Patch Cord
| Price: |
US $ 0.1/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
NT03-025 |
| Cable Level: |
Om3 |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Brand: |
Weidan Electronics |
Product Description
WEIDAN OM3 SC to SC Fiber Patch cable simplify the installation process and reduce the total cost of ownership of your project, due to pre-terminated fiber intrinsic plug-and-play characteristic.
EMI immunity
OM3 Multimode fiber is immune to many environmental factors, such as Electromagnetic Interference and Radio-Frequency interference, so it is possible to run patch cords next to industrial equipment without any problem.
Properly tested
Each patch cord is individually and rigorously tested and certified to be within accurate optical insertion loss.
Cable Specifications
Wavelengths: 1300 and 1550nm
Orange Jacket
Bend Radius - Minimum / 5cm
Cable Jacket (3.00mm)
Operating Temperature / -4° to 158° F (-20° to +70° C)
Multimode 50/125um
Standard Zip Cord
OM2 fiber conforms to ITU-651, TIA/EIA 492AAAA
Multiple Sizes Available
SC /SC connector (Fiber patch cord)
WEIDAN SC SC Patch Cord feature precision hold, plastic ferrule LC connectors . They comply with all ANSI/EIA/TIA standards.
SC to SC Multimode Duplex are used to connect LC devices and are suitable for Gigabit Ethernet, video, multimedia, premise installations, fiber optics patch panels, fiber optic transceiver and fiber optic network, industrial, and military applications. Connectors feature dust caps on the tips for protection. |
|
| Main Features | - WEIDAN high-quality SC to SC Fiber Patch Cable 50/125 OM3 Multimode fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, commercial, LAN, SAN and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
- This fiber SC SC Fiber Patch Cord conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.
- This MM fiber has an orange color jacket with a 3.00 mm diameter. OM3 cables have a 500 MHz-km bandwidth and a 2.3dB/km maximum attenuation at 850 nm light sources and a 500 MHz-km bandwidth and a 0.6dB/km maximum attenuation at a 1300 nm wavelength.
- This SC to SC Multimode Duplex OM3 fiber patch cords operate at -20°C to +70°C and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
- OM3 patch cords are suitable for backbone, riser and horizontal configurations - SC duplex connectors are joined with a plastic clip, easy to remove in case you need to separate the connectors.
|
|
| Specifications | - Manufacturer: WEIDAN ELECTRONICS
- Shipping Weight: 18
- Product Dimensions:
Width: 6.70
Length: 9.00
Height: 0.40
|
|
NINGBO WEIDAN ELECTRONICS Co., Ltd. is located in Ningbo, the biggest modern port and the well-known export manufacturing base in China.
The company majors in producing following categories of products:
1. Network integration cabling products

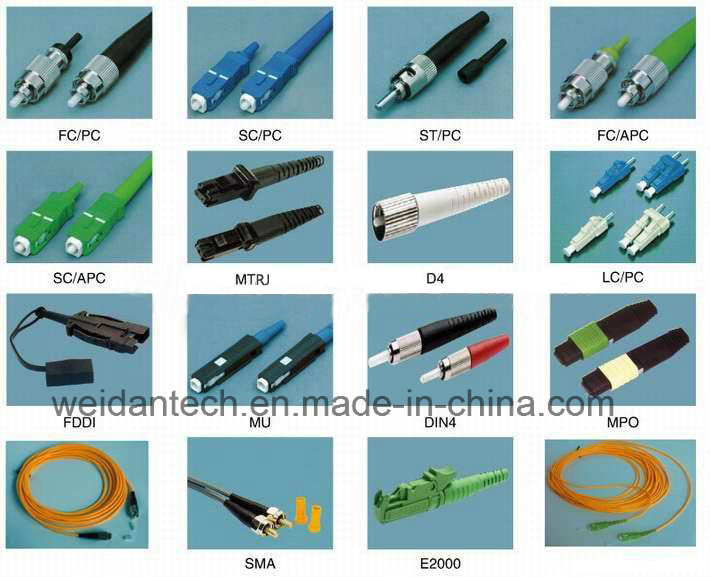

Including Coaxial cable, Speaker cable, Alarm cable, Telephone cable, Network cable, Cat5e/CAT6/CAT6A/cat7 patchcord, Keystone jack, patch panel, wall faceplate, PDU, Wall faceplate; Fiber optic cable (LC/ST/SC/MTRJ, E2000), Adapter. Closure...
2. AV Cable: RCA, Seterio Audio, Scart, Guitar Cable, Musical instrument cable, Microphone cable, Snake Cable, HDMI & DVI Cable, Multimedia Swich box; ;
3. PC Cable and Mobility accessories: SVGA Cable, RS232, SATA I, II, III, , Printing cable, USB Cable, USB power lightening & Data charge cable, infinity band cable;
4. Power cord, Power Strip, Power cord reel;
5. Satellite and Antenna Communication products: Antenna cable, RF Cable, Amplifier, Splitter, Terminal Box;
6. WiFi Router, WiFi Bridge, IP Camera; ;
7. Appliance wiring Material. Fieldbus Cable, Drag Chain Cable, Robotics Cable, Servo, Feedback&Moto Cable, Sensor Cable and spiral cable.
WEIDAN ELECTRONICS is a younger company, but has already more than 15 years' professional experience accumulation, and developing very fast but steady, now, Our products being shipped as far as Europe, America, Asia, Australia, as well as South Africa and Middle East, 30 Countries and areas in the world. And has cooperated with and as the value supplier, provided the OEM service for many noted firms.
WEIDAN ELECTRONICS owns (or by cooperation) a number of modern production lines and scientific QC system, and equipped with full series professional Testing equipment, running according with ISO9000, CE, TUV, ETL, RoHS&REACH, . Moreover, we have strong R&D team, offer platform of technology supporting.
Under the principle of integrity, diligence and practicalness and by means of reinforcing management and effectiveness, WEIDAN ELECTRONICS insists that quality be the life of entreprises. With a strict budget and careful calculaton, the company purchases bulk raw materials in the form of a centralized bidding. If quality indicators of materials meet the criterion, costs are to be cut as much as possible. We boast of professional andzealous services for our clients, whose commodities have their value maintained and appreciated.
In hopes of having the WEIDAN products and services walk into hundrends of thousands of households all over the world, we'd like to communicate and cooperate with all those from all walks of life.
