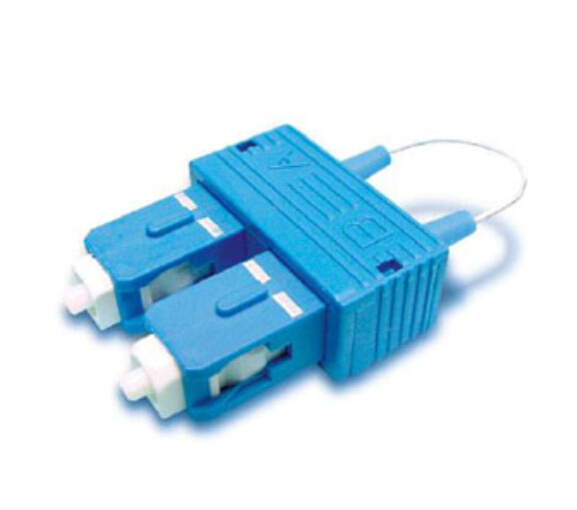

Sc-Sc Sm Fiber Patch-Cord with Loop Back Type

Name: Sc-Sc Sm Fiber Patch-Cord with Loop Back Type
Brand: all-electronics-online.com
SKU: 791973985
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 0.65-0.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC
Cable Diameter Szie:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Boot Color:	Blue, Green, Beige,Aqua, Black, White, Red
Housing Material:	Metal or Plastic
Boot Type:	Smooth, Slotted
Housing Color:	Blue, Green, Beige, Aqua,Black
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	RoHS
Brand:	Koc
Sheath Material:	PVC LSZH

Product Description

With 15 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website www.koc.com.cn.

In case of need, please do not hesitate in contacting us.

Product Description
Fiber Optical Loopback is designed to provide a media for return patch for a fiber optic signal. Typically used for fiber optical testing applications or network restorations.

Key Features
Compatible with Fast Ethernet, FiberChannel, Gigabit Ethernet etc.
Custom assemblies available

Performance
Typical insertion loss: ≤ 0.3dB
Connector type: SC/LC/MTRJ etc available
Mode type: SM or MM available
Cable type: 3.0mm/2.0mm/0.9mm/0.25mm
Repeatability: ≤ 0.2dB (500 matings)

Order Informations
LB-A-B-C
A: Connector type[SC/SCA/LC/LCA/MTRJ]
B: Mode type[9(SM)/6(MM62.5)/5(MM50)]
C: Cable type (MM)[3/2/09/25]

Patch Cable Type	Fiber type
Multi-core (12, 24, 48) MPO cable	9/125,
Multi-core (12, 24, 48) SC/ST/LC/MU cable	50/125
Multi-core (12, 24, 48) MPO-- SC/ST/LC/MU cable	62.5/125
	OM3

Fan-out cable size	Fan-out cable length
0.9mm,	Same length
1.8/2.0mm,	Stepped length
2.8/3.0mm

Cable fiber structure	Cable jacket
loose tube,	PVC (ROHS approved)
tight buffer,	LSZH
ribbon fiber

SM Data	MM Data
Insertion loss: <0.3dB	Insertion loss: <0.3dB
Return loss: >50dB	Return loss: >35dB

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
