| Prod Model: |
SC(PC) |
| Boot Type: |
Round, Flat |
| Boot Color: |
Blue,Green,Aqua,Red,Magenta,Beige |
| Adapter Type: |
Sc |
| Cable Color: |
Aqua,Green, Beige,Yellow, Magenta |
| Housing Color: |
Aqua,Green, Beige |
| Boot Diamter: |
3.0mm, 0.9mm,2.0mm |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |

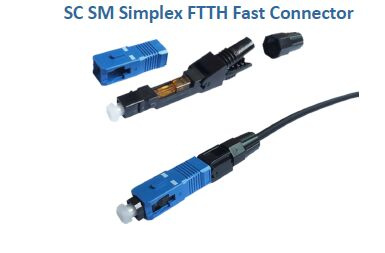

Product Description
Competitive cost of fast install connector from KOC China.
Applications:
For FTTH Drop Cable field termination
For emergency fiber path repair
FTTH, LAN and other fiber optic system
SC type available
Features:
Patent fiber alignment technology
High performance, high reliability
No Polish, no electricity needed
Quick installation, easy for operation
High one-time assembly success rate
Advantages:
Ferrule hole U-groove alignment ensure the fiber core alignment error <0.5um. This will reduce the connect loss.
The U-groove has the advantage than V-groove when different fiber diameter are used. This will reduce core offset between customer and stuff fiber.
Outdoor optical fiber temporary connection
Flexible fiber connect, high pulling resistance.
Specification:
Item | Parameter |
Insertion Loss | Average≤0.2dB, Max≤0.5dB |
Return Loss | UPC: ≥40dB, APC: ≥55dB |
One-time Assembly Rate | ≥97% |
Assembly Repeatability | ≥5 times |
Life time | ≥10 years |
Average Assembly Time | 3 minutes |
Tensile Resistance | ≥30N |
Operation Temperature | -40ºC~+85ºC |
Pictures:
