Sc St Mechanical Adjustable Hybrid Fiber Optic Attenuator 0-30dB
| Price: |
US $ 0.3-1.8/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SC-ST optical fiber adapter |
| Return Loss: |
PC >45dB APC>60dB |
| Optical Wavelength: |
1310nm, 1550nm(Sm) |
| Working Wavelength: |
1310nm and 1550nm(Sm) |
| Attenuation Value: |
1 3 5 10 15 20 25dB |
| Mode: |
Single Mode, Multi Mode |
| Customized: |
Available |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

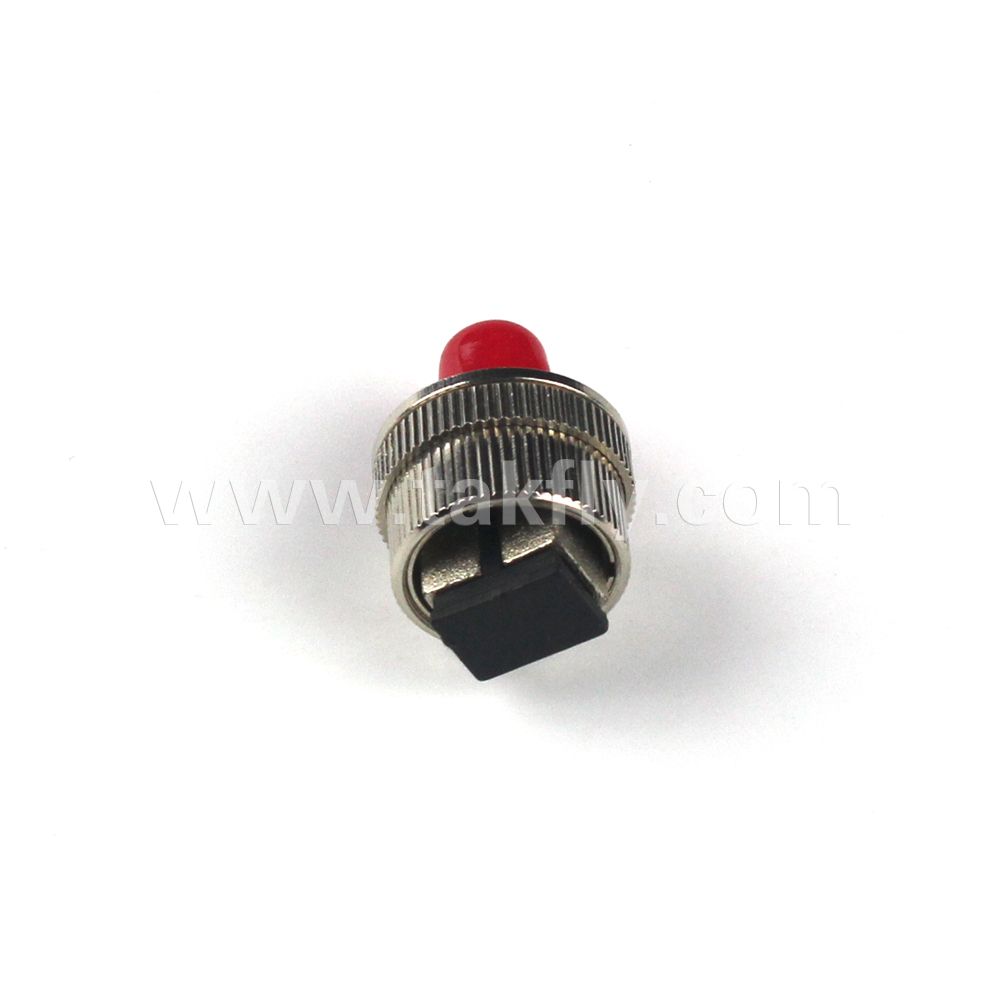

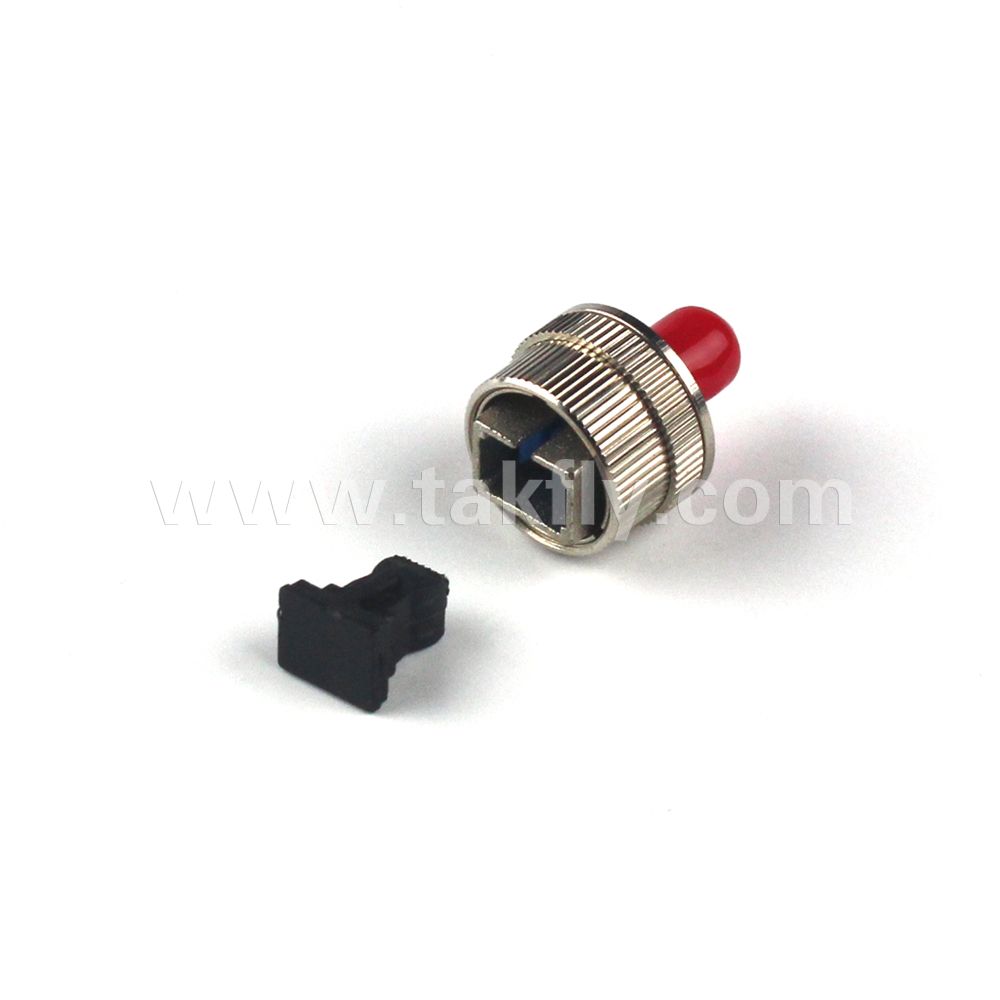

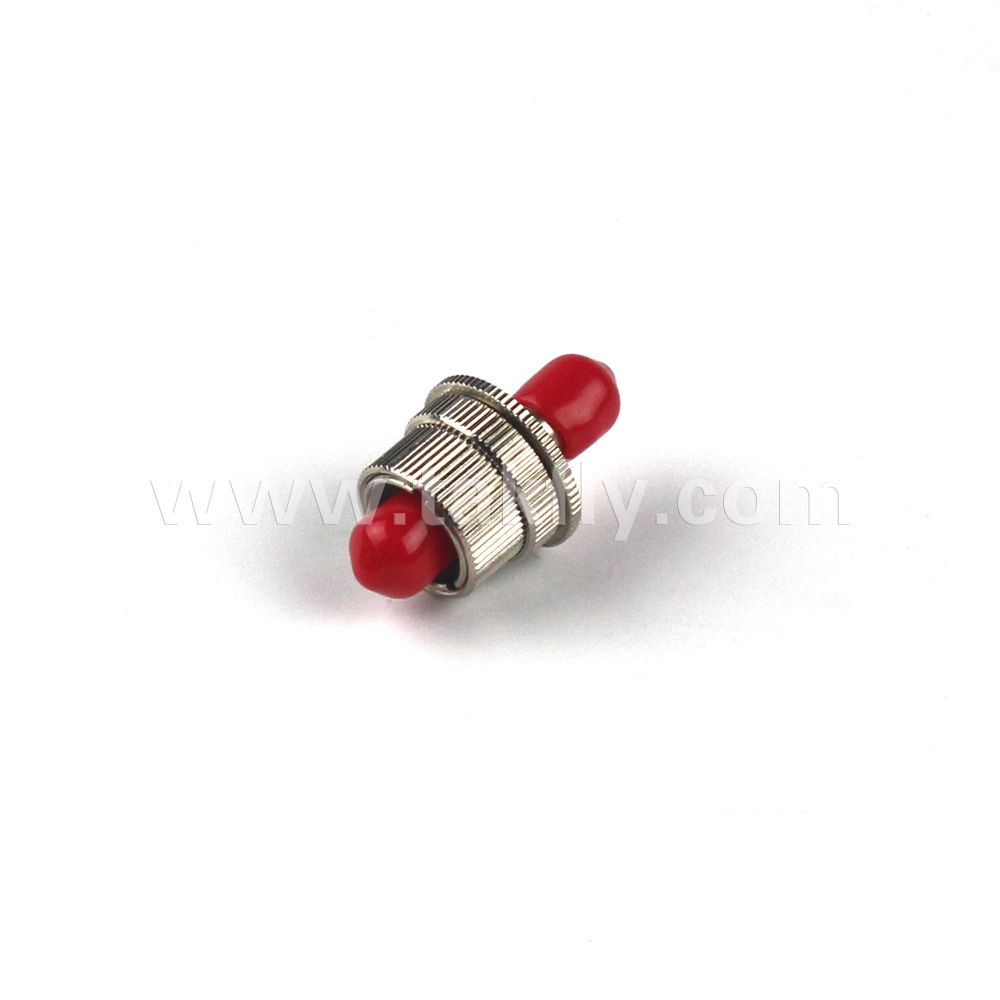

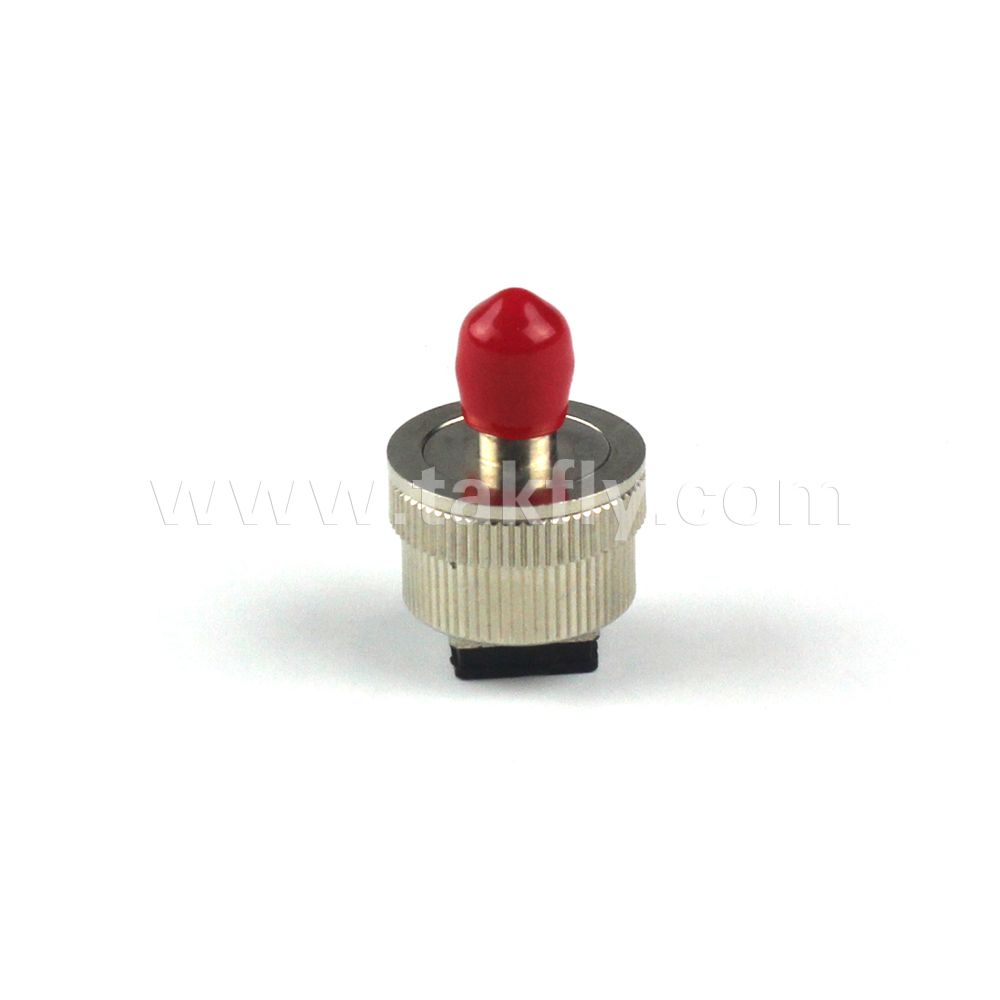

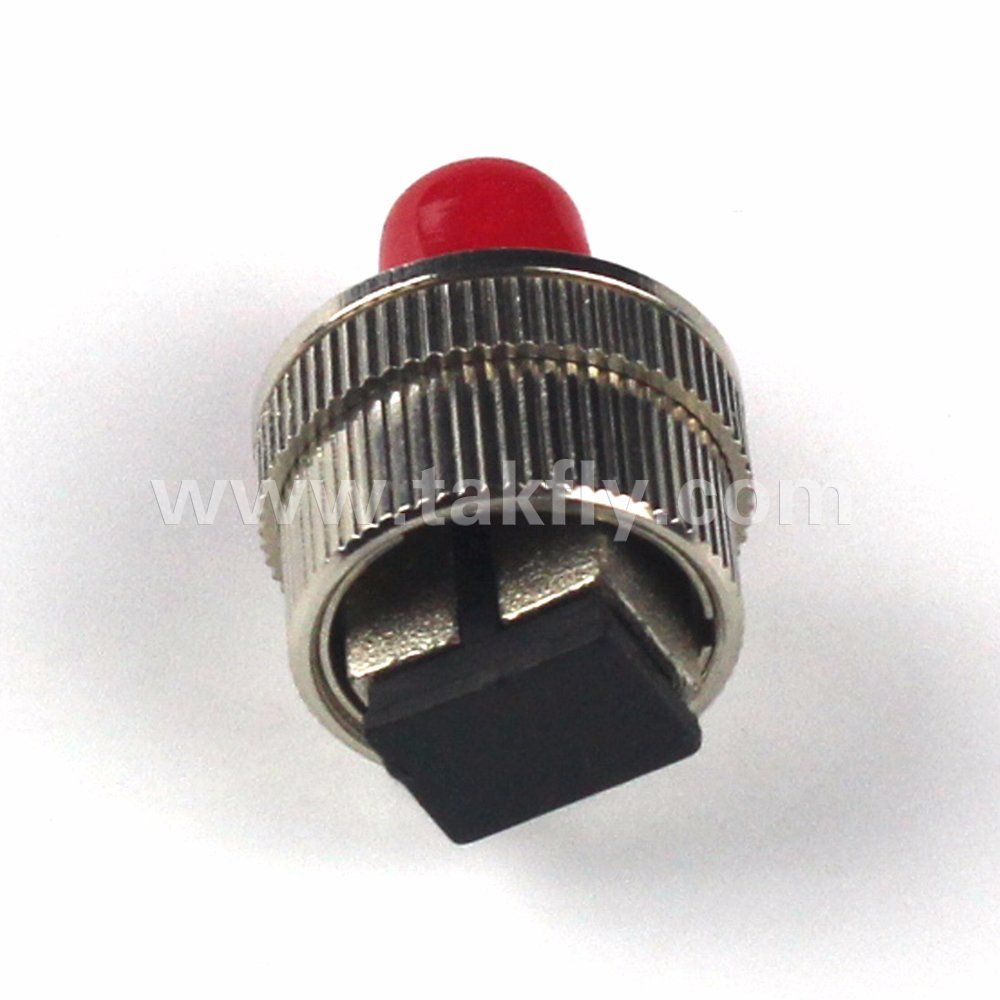

Sc St Mechanical Adjustable Hybrid Fiber Optic Attenuator 0-30dB
Takfly Optical Attenuator,variable attenuator, double window:1310/1550nm of passive components. The variableoptical attenuator could continually and variably attenuate the light intensity in the optical fiber transmission.
SC-ST Adjustable fiber optic attenuator, also called variable fiber optic attenuator , usually is inline type, the appearance like fiber optic patch cord; it is with an adjustable component in the middle of the device to change the attenuation level to a certain figure. There are also handheld variable fiber optic attenuators; they are used as test equipment, and we have the inline fiber optic attenuators .
Features:Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC optional
Plastic or metal housing material
Specification| Type | Parameter |
| Attenuation Value | 0-30dB adjustable |
| Return Loss | PC>45dB |
| Working Wavelength | 1310nm and 1550nm(SM) |
| Attenuation Tolerance | 0.1dB |
| Working Temperature(ºC) | -40ºC~+ 75ºC |
| Storage Temperature(ºC) | -40ºC~+ 85ºC |
Why choose Takfly ?Service1.Customer's logo: Acceptable2.General inspection on fixing before packing3.Third party inspection: Acceptable Quality ControlAll products must go through five checks before manufacturing process 1.Material incoming inspection before production2.Full check after every individual process finished3.Full check after production half-done4.Full check before packing5.Spots check after production packed before shipping Advantage1.17 years experience in manufacturing fiber optic products..2.Availability of R & D with more than 10 engineers.3.Available of design and making mold with special molding house.4.High quality, attractive price and fast delivery(2-7days)5.OEM, ODM customer designs are also welcomed6.More than 200 workers7.Excellent survice Delivery:1.Packing: Plastic bag& carton, Neutral packing or as your required.2.Sample time: 1-3 days after confirm3.Order lead time: 2-7working days depend on quantity and products.4.Shipping port: Shenzhen China or HK5.Shipping term: EXW or FOB Payment: Acceptable by T/T, West Union, PayPal and L/C according to your requirement Shipping 1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.4.Please do not bid if you disagree with the shipping and handling charge.Contact1.Our working time:8:30am~5:30pm 2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24 hours too.Any question about this adjustable attenuator,please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
