| Prod Model: |
SC-ST Fiber Optic Adaptor |
| Business Type: |
Manufacturer |
| Brand Name: |
OEM/Takfly/Df |
| Attenuation Value: |
1 3 5 10 15 20 25dB |
| Polishing: |
PC, Upc, APC |
| Mode: |
Single Mode, Multi Mode |
| Return Loss: |
PC >45dB APC>60dB |
| Optical Wavelength: |
1310nm, 1550nm(Sm) |
| Warranty: |
3 Years |
| Lead Time: |
3days |
| Working Wavelength: |
1310nm and 1550nm(Sm) |
| Transmission Medium: |
Single-Mode |
| Structure: |
FC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Light Source TYPE: |
Fiber Optic |
| Connector Type: |
Sc-St |
Product Description

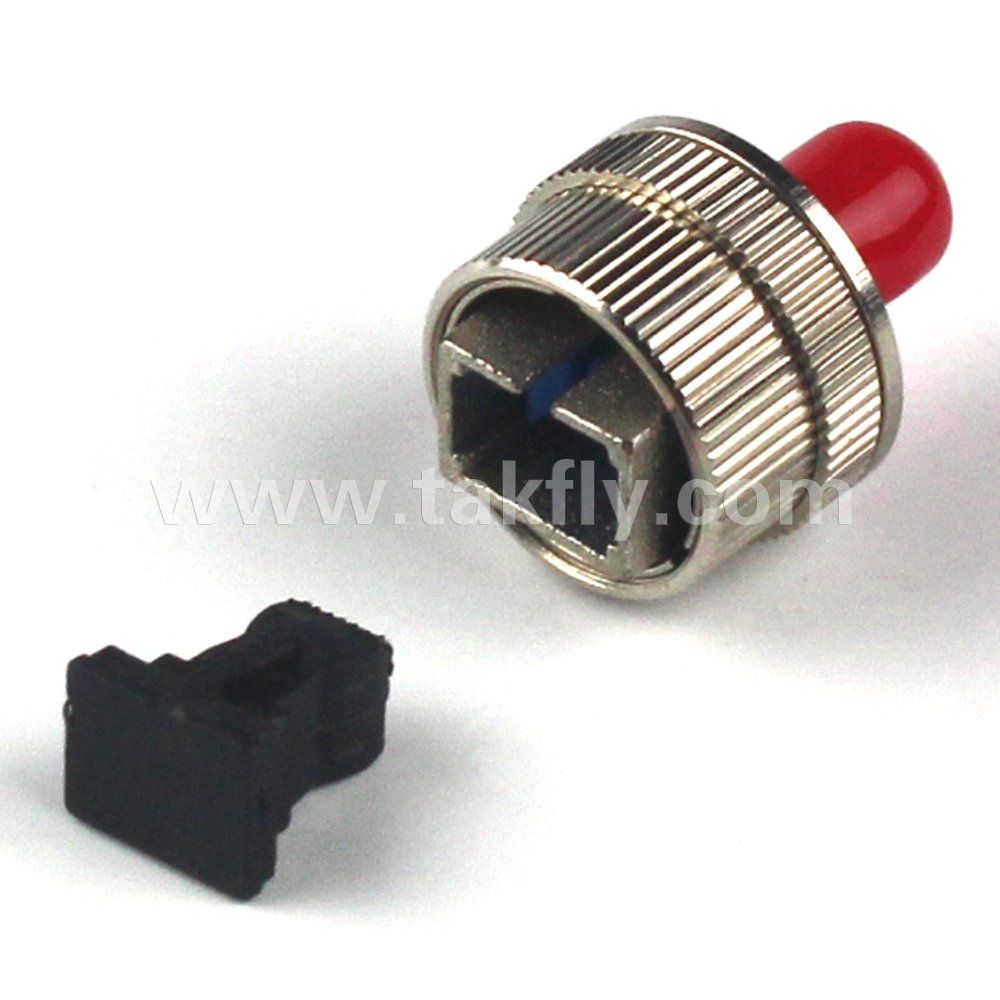

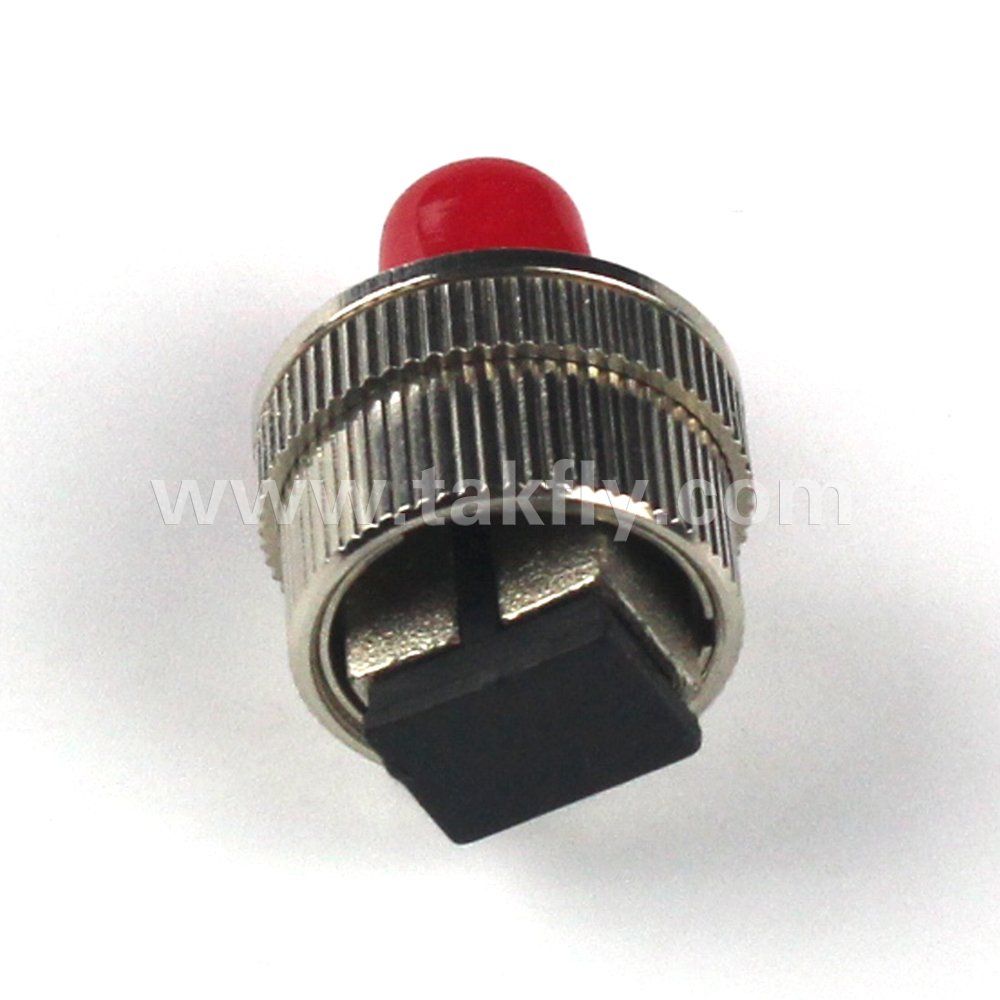

SC-ST Mechanical Adjustable Hybrid Fiber Optic Attenuator
Takfly Optical Attenuator,variable attenuator, double window:1310/1550nm of passive components. The variableoptical attenuator could continually and variably attenuate the light intensity in the optical fiber transmission.
SC-ST Adjustable fiber optic attenuator, also called variable fiber optic attenuator , usually is inline type, the appearance like fiber optic patch cord; it is with an adjustable component in the middle of the device to change the attenuation level to a certain figure. There are also handheld variable fiber optic attenuators; they are used as test equipment, and we have the inline fiber optic attenuators .
Features:Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC optional
Plastic or metal housing material
Specification| Type | Parameter |
| Attenuation Value | 0-30dB adjustable |
| Return Loss | PC>45dB |
| Working Wavelength | 1310nm and 1550nm(SM) |
| Attenuation Tolerance | 0.1dB |
| Working Temperature(ºC) | -40ºC~+ 75ºC |
| Storage Temperature(ºC) | -40ºC~+ 85ºC |
Application:Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment3dB LC connector type Single mode Fiber Optical attenuator
