Sc-St mm Om2 50/125 Duplex 2.0 LSZH Optical Fiber Patch Cable

Sc-St mm Om2 50/125 Duplex 2.0 LSZH Optical Fiber Patch Cable
Price: US $ 1.6-5/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: Optical Patch Cable
Cable Material: LSZH / PVC / Ofnr
Cable Diameter: 2.0mm/3.0mm
Operation Wavelength: 850/1300nm
Cable Length: 1m,3m.5m or Customized
Polishing: PC,Upc,APC
Color: Orange
Custom Service: Available
Application: Probe
Type: Multi-mode Fiber
Connection Structure: SC-ST
Certification: ISO9001

Product Description

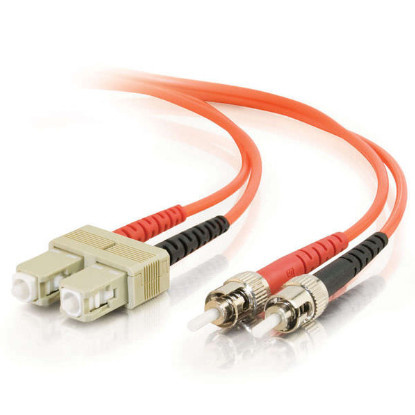

Sc-St mm Om2 50/125 Duplex 2.0 LSZH Optical Fiber Patch Cable

SC/UPC-ST/UPC 50/125 OM2 multimode duplex LSZH fiber optic patch cord Supports longer distances with lower loss than 62.5/125 fiber for fast ethernet, fiber channel, ATM and gigabit ethernet applications where protection from toxic and corrosive gases is critical

SPECIFICATION
connector 1: SC male
connector 2: ST male
length: 1m,2m,3m,4m...
typical connector loss: 0.3dB
typical return loss: -25dB
buffer material: PVC
buffer OD: 900um
jacket material: LSZH / PVC
jacket OD: 3.0mm
operating temperature: -20°C to +70°C
Optical multimode 2 (OM2) fiber supporting 500 MHz.km OFL at 850/1300nm
Each cable is 100% optically inspected and tested for insertion loss before you receive it.

Spec
CharacteristicSM , MM
Connector typeFC/SC/ST/LC/MU/MTRJ/ESCON/E2000
Diameter(mm)0.9,2.0,3.0
Polishing gradeSM PCMM PCUPCAPC
Insertion loss≤0.3dB≤0.4dB≤0.2dB≤0.3dB
Return loss≥40dB≥50dB≥65dB
Interchangeability≤0.2dB
Repeatability≤0.2dB
Operation temperature-40~+85

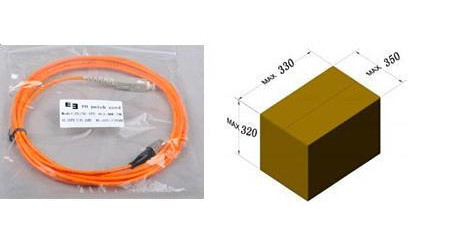

Package and Fast delivery time
our standard packge: each fiber optic cable with a zip plastic box then in a carton or as your request
label: DF or mark your logo name on the cable
delivery: 3-5days after your payment

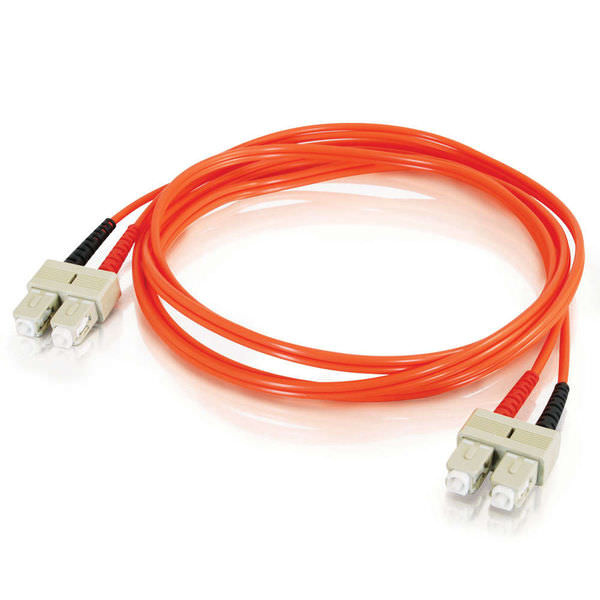

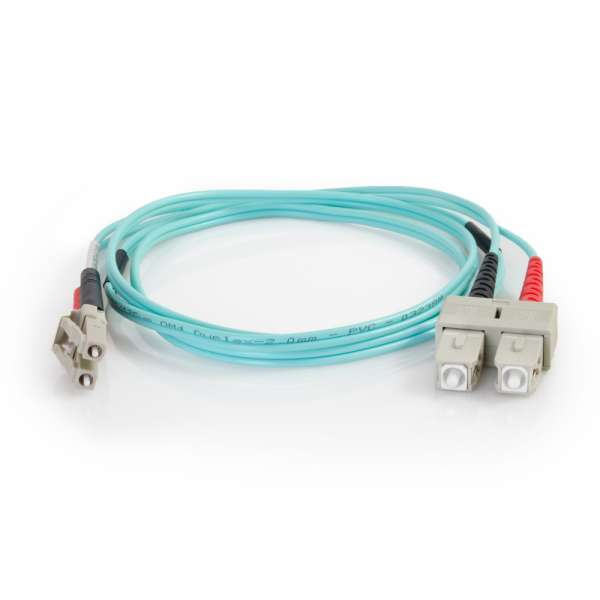

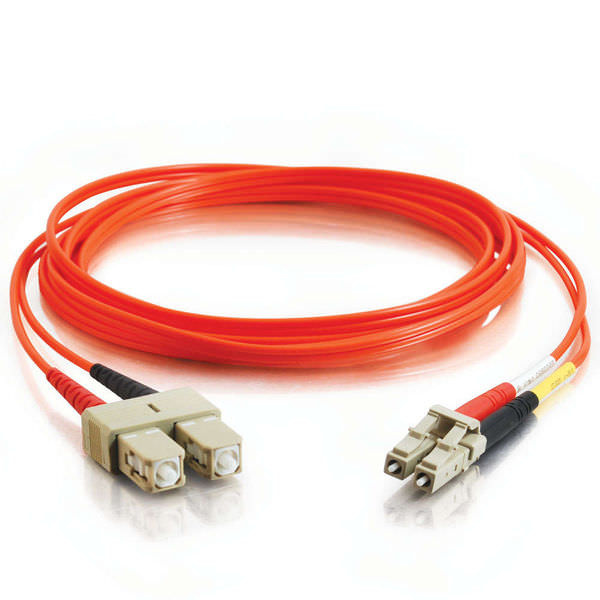

Related fiber optic patch cord



Would you like some fiber optic patch cord sample to test??Please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
